Adjustment
13 - 30

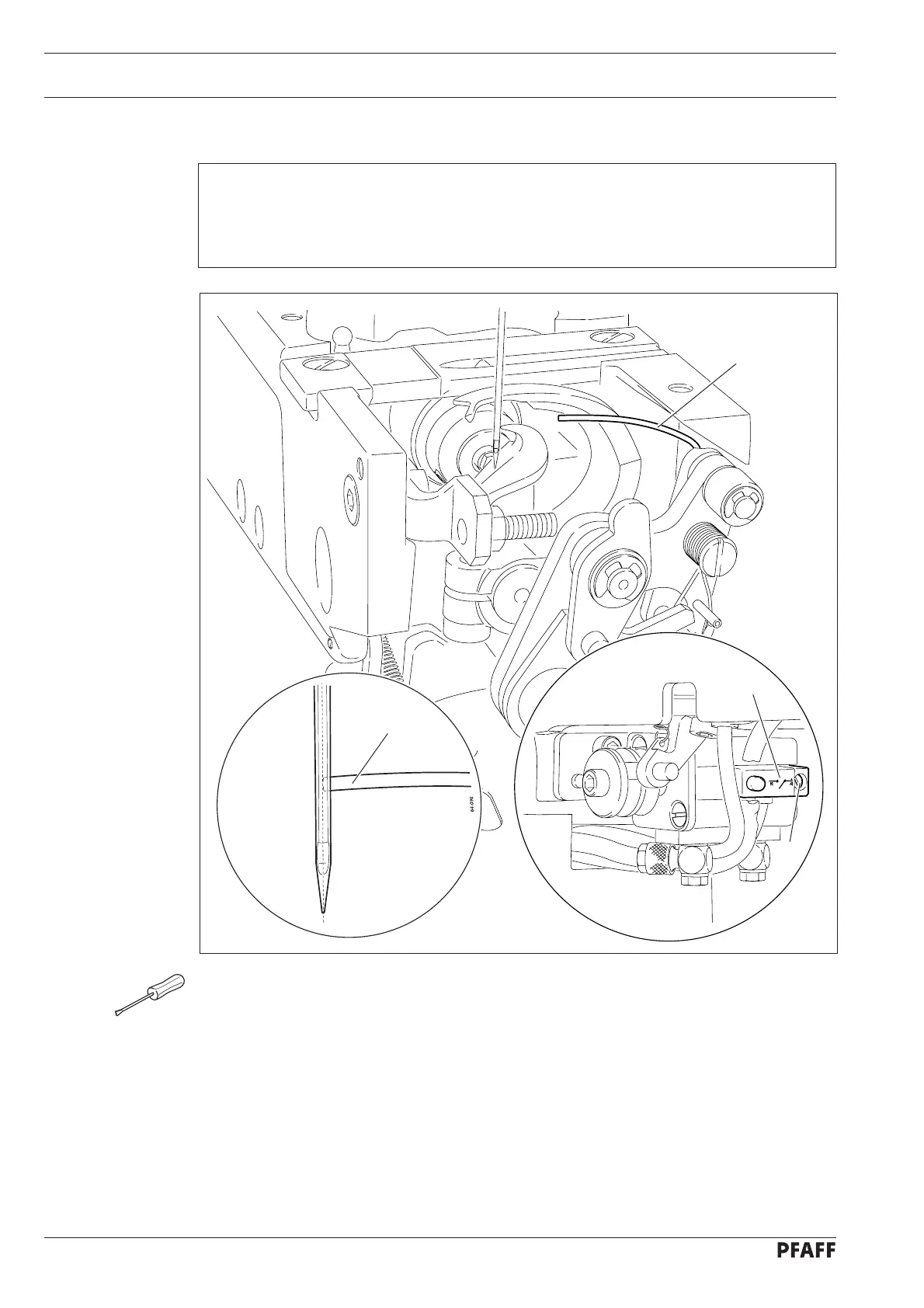

Fig. 13 - 28
3
1
2
3
13.30 Adjusting the reed switch
Requirement
When parameter "610" is set at "1" and the machine is in the needle rise position, the reed
switch 1 should operate exactly at the moment when the tip of the retaining finger 3 is
positioned at the centre of the needle.
● Switch on the machine, set parameter "610" at "1" and bring the needle bar into the
needle rise position.
● Loosen screw 1 and move the reed switch 2 completely to the right.
● Place the point of the retaining finger at the centre of the needle and hold it in this
position.
● Move reed switch 2 to the left, until reaching the switch point.
● Fasten screw 1.
● Check the switch status of reed switch 2 with parameter "602" (position 4).
● Switch off the machine.
