Adjustment
13 - 2
13.04 Toothed belts of the main drive
Requirement
1. Toothed belt wheels 1 and 5 should be in alignment.
2. Hardly any play should be noticeable between toothed belt wheels 1 and 5 and the
toothed belt 6.
56-054

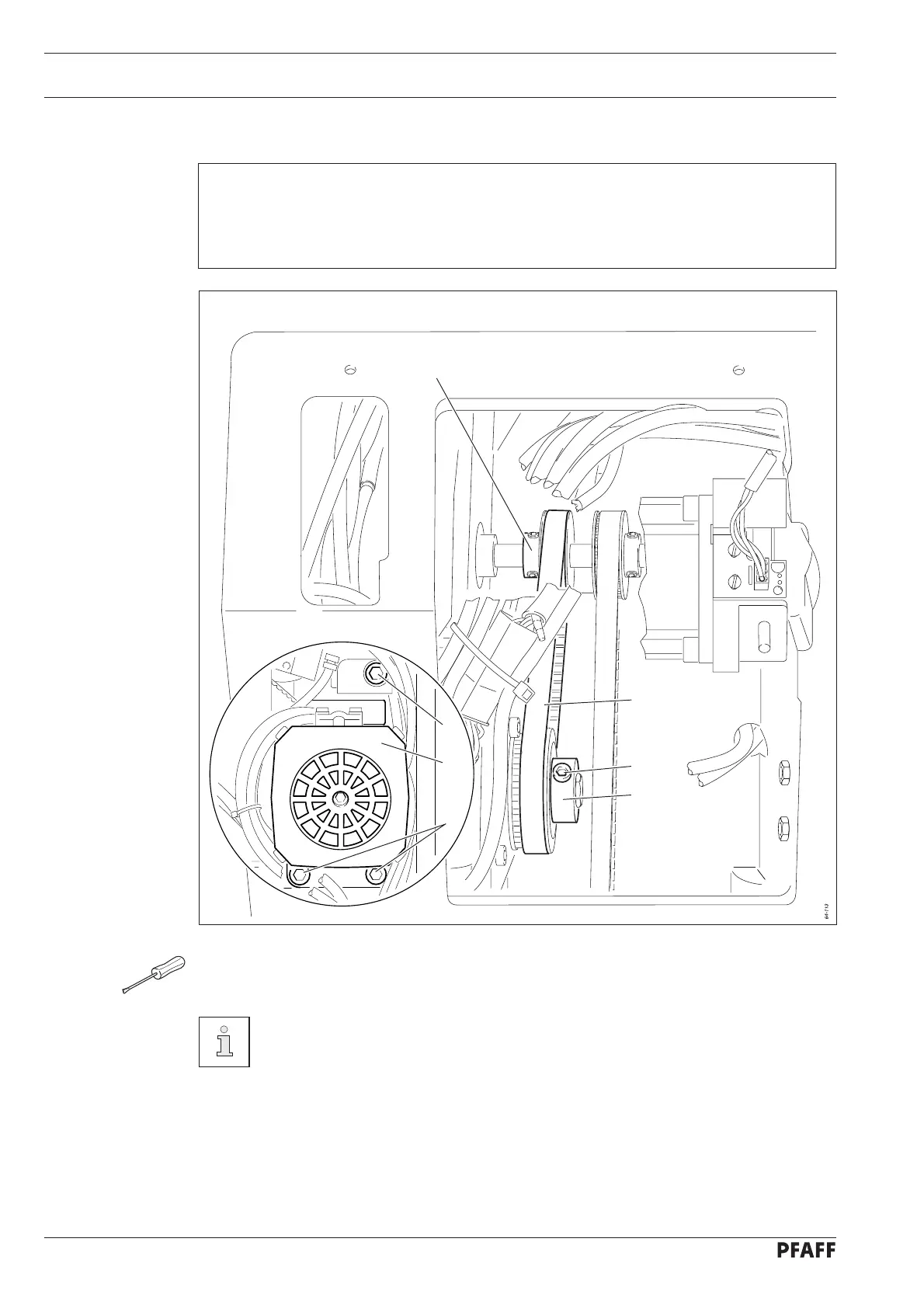

Fig. 13 - 01
6
2
1
3
4
4
5
● Adjust toothed belt wheel 1 (screws 2) in accordance with requirement 1.
● Move motor 3 (screws 4) in accordance with requirement 2.
If there are operational noises, the adjustments must be repeated.
