Pioneer AVIC-X930BT User Manual

Section
C_c_o_n_n_e_c_ti_n_9_
t
_
h
_
e
_
s
_y_s_te_m ) ca

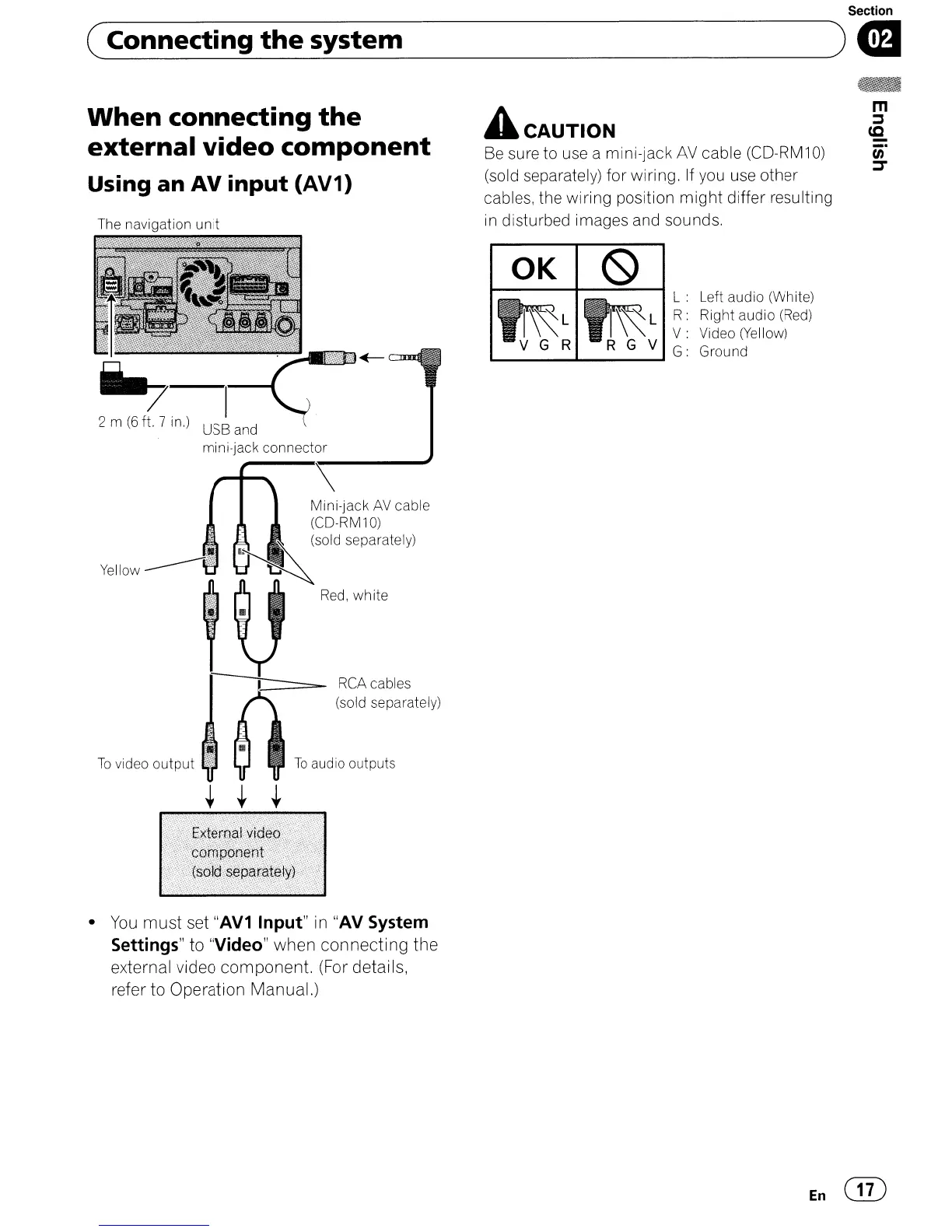

When connecting the
external video component
Using an AV input (AV1)
The navigation unit
4 CAUTION
Be sure to use a mini-jack AV cable (CD-RM10)
(sold separately) for wiring.
If you use other
cables, the wiring position
might differ resulting
in disturbed images and sounds.
L: Left audio (White)
R: Right audio (Red)
V: Video (Yellow)
G: Ground
OK
(S)
~L
tre
L
V G R
R G V
USB and
mini-jack connector
~-.-~
2 m (6 ft. 7 in.)
To audio outputs
'Ii
Yellow~~
,
= .•. '
Il
r----t:::::::=- RCA cables
(sold separately)
To video output
• You must set "AV1 Input" in "AV System
Settings"
to "Video" when connecting the
external video component. (For details,
refer to Operation Manual.)
En GD

Pioneer AVIC-X930BT Specifications

General

Screen Size	6.1 inches
Resolution	800 x 480 pixels
Touchscreen	Yes
Navigation	Yes
Bluetooth	Yes
USB Input	Yes
SD Card Slot	Yes
Preamp Outputs	3 pairs (front, rear, subwoofer)
RMS Power	14 watts
Peak Power	50 watts x 4 channels
iPod/iPhone Control	Yes
DVD Player	Yes
Rear View Camera Input	Yes
AUX Input	Yes
HD Radio	No
CD Playback	Yes
MP3 Playback	Yes
WMA Playback	Yes
AAC Playback	Yes
iPhone Compatibility	Yes
Steering Wheel Control Compatible	Yes
Satellite Radio Ready	Yes
