The term “external unit” refers to future
Pioneer devices that are not currently planned
for, or to devices that allow control of basic
functions although they are not fully con-
trolled by the navigation system. Two external
units can be controlled by this navigation sys-
tem. When two external units are connected,
the navigation system allocates them as exter-
nal unit 1 or external unit 2.
For details of the connection method, refer to
Installation Manual.
For details of the operation, refer to the exter-
nal unit’s operation manual. This section pro-
vides information on external unit operations
with the navigation system that differ from
those described in the external unit’s opera-
tion manual.
p Operation varies depending on the external
unit connected. (In some cases, the exter-
nal unit may not respond.)

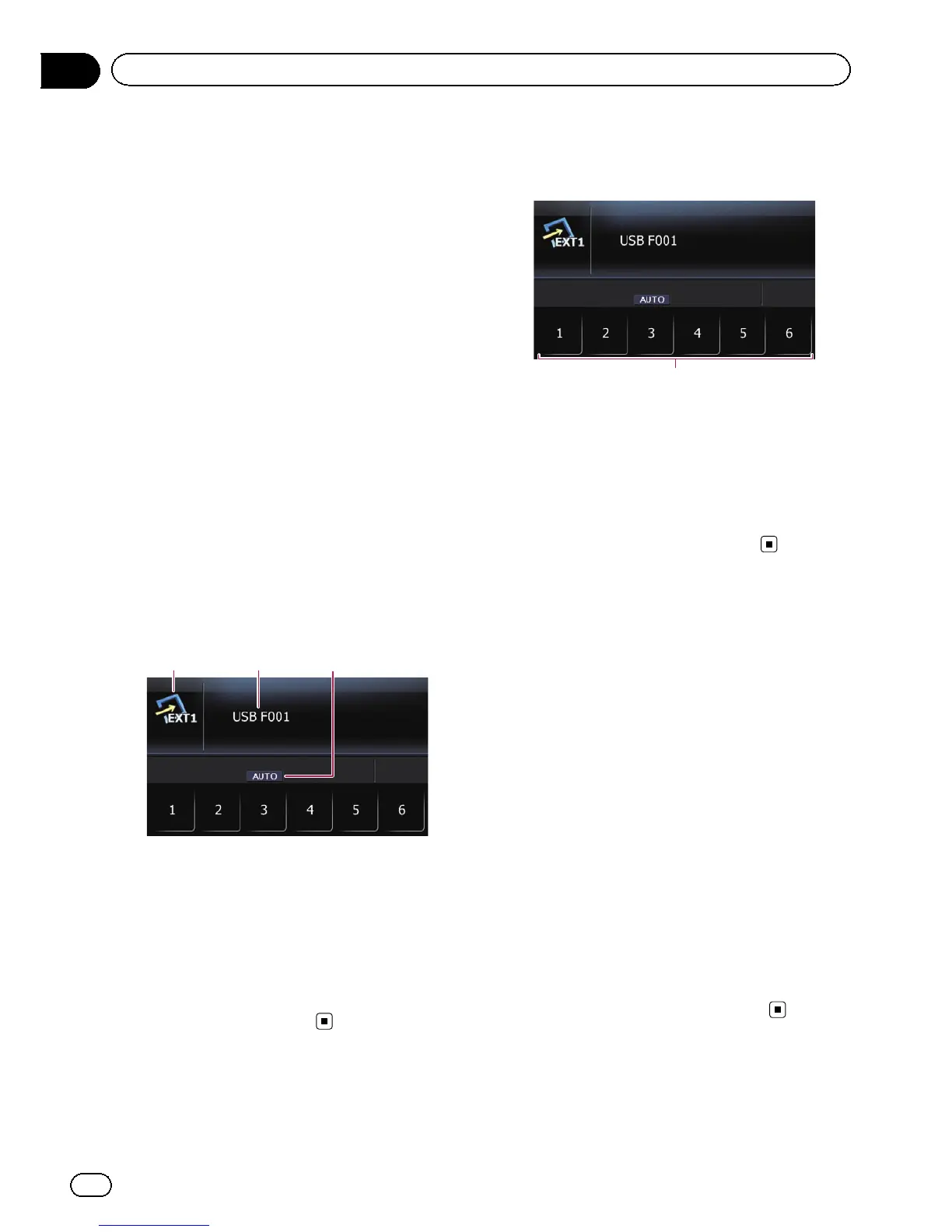

Reading the screen
1 23
1 Source icon
Shows which source has been selected.
2 External unit indicator
Displays the information that is sent by con-
nected external units.
3 Auto/Manual mode indicator
Shows the current mode.
Using the touch panel keys
1
1 The external unit can be operated by transmit-
ting the operating commands set to “1” key
through “6” key.
p Operation varies depending on the ex-
ternal unit connected. (In some cases,
some functions may not be used until
you touch and hold the key.)
Operating by hardware
buttons
Pressing the BAND/ESC button
You can send a band command to the external
unit.
p Operation varies depending on the external
unit connected. (In some cases, the exter-
nal unit may not respond.)
Pressing MULTI-CONTROL up, down, left
or right
You can operate the external unit.
p Operation varies depending on the external
unit connected. (In some cases, some func-
tions may not be used until you touch and
hold the key.)
Pressing the center of MULTI-CONTROL
The function select screen appears.
En
112
Chapter
24
Using the external unit (EXT1, EXT2)
