Pioneer AVIC-X930BT User Manual

Section

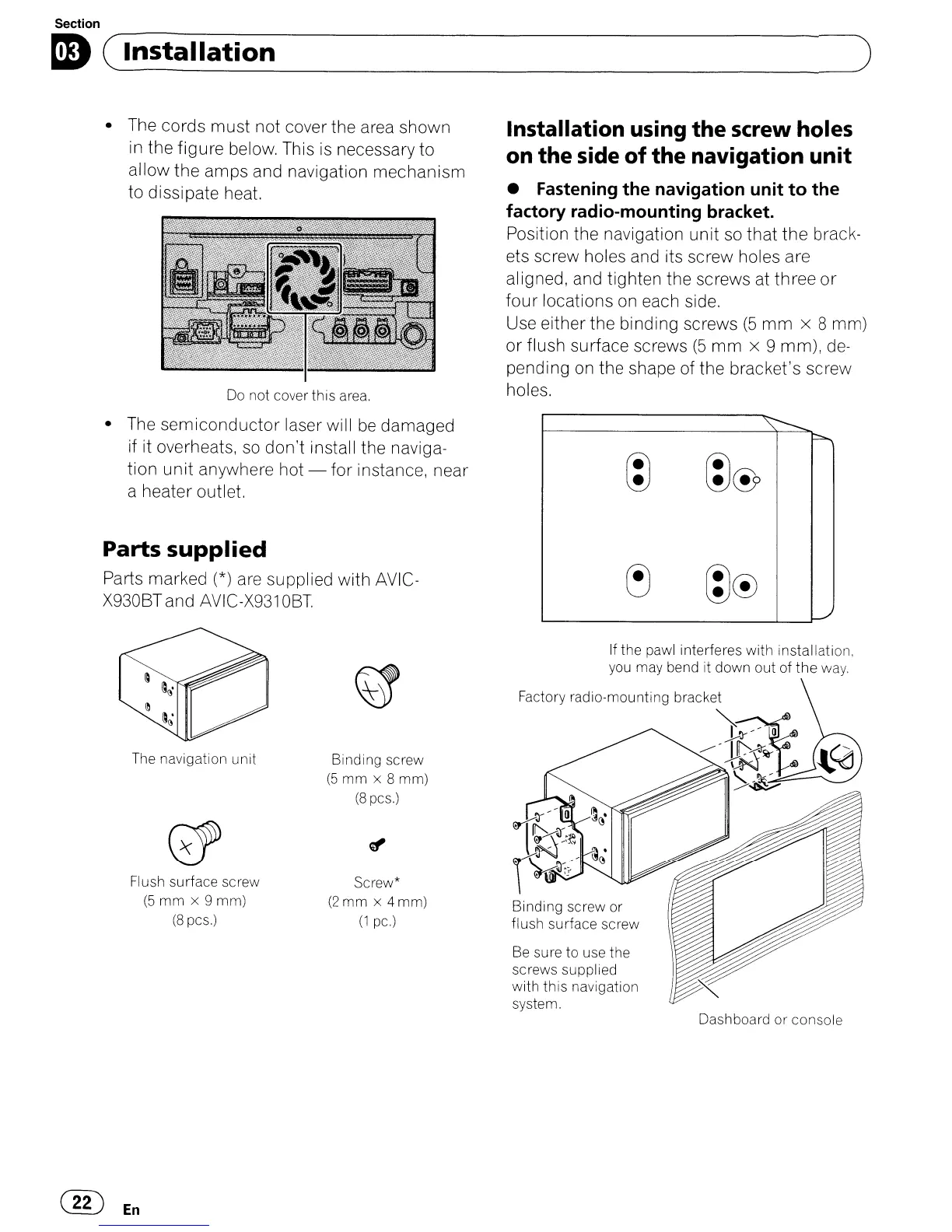

m» (Installation
)
• The cords must not cover the area shown
in the figure below. This is necessary to
allow the amps and navigation mechanism
to dissipate heat.
00 not cover this area,
Installation using the screw holes
on the side
of the navigation unit
• Fastening the navigation unit to the
factory radio-mounting bracket.
Position the navigation unit so that the brack-
ets screw holes and its screw holes are
aligned, and tighten the screws at three
or
four locations on each side,
Use either the binding screws
(5 mm x 8 mm)
or flush surface screws (5 mm x 9 mm), de-
pending on the shape of the bracket's screw
holes.
• The
semiconductor laser will be damaged
if it overheats, so
don't install the naviga-
tion
unit anywhere hot - for instance, near
a heater outlet.
Parts supplied
Parts marked (*) are supplied with AVIC-
X930BTand AVIC-X9310BT.
Be sure to use he
screws supplied
with this navigation
system,
If the pawl interferes with installation,
you may bend it down out of the way,
Screw*
(2mm x 4mm)
(1 pc,)
Binding screw
(5 mm x 8 mm)
(8 pes,)
The navigation unit
Flush surface screw
(5 mm x 9 mm)
(8 pes,)
Dashboard or console
CID En

Pioneer AVIC-X930BT Specifications

General

Screen Size	6.1 inches
Resolution	800 x 480 pixels
Touchscreen	Yes
Navigation	Yes
Bluetooth	Yes
USB Input	Yes
SD Card Slot	Yes
Preamp Outputs	3 pairs (front, rear, subwoofer)
RMS Power	14 watts
Peak Power	50 watts x 4 channels
iPod/iPhone Control	Yes
DVD Player	Yes
Rear View Camera Input	Yes
AUX Input	Yes
HD Radio	No
CD Playback	Yes
MP3 Playback	Yes
WMA Playback	Yes
AAC Playback	Yes
iPhone Compatibility	Yes
Steering Wheel Control Compatible	Yes
Satellite Radio Ready	Yes
