"Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
Height 1 Speaker
Height 2 Speaker
1 ch
---
---
Speaker B
Zone 2
Front
Zone 2 Preout
Zone 2
5.1 ch
Zone Speaker
• Speaker Channels: 5.1 ch
• Subwoofer: 1ch
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: Zone 2
• Speaker B: No
• Zone 2 Preout: Zone 2
• Bi-Amp: Front
• Symmetry / All Channel Adjust / Front
Align ( p203)
Setup
To output the video and audio of
the HDMI input to ZONE 2, from
the Home screen, set "System
Setup" - "Input/Output Assign" -
"TV Out/OSD" - "Zone 2 HDMI" (
p153) to "Use".
5.1 Channel System (Bi-Amping the Speakers) + ZONE SPEAKER
ZONE 2
MAIN ROOM
For high-
frequency
For low-
frequency

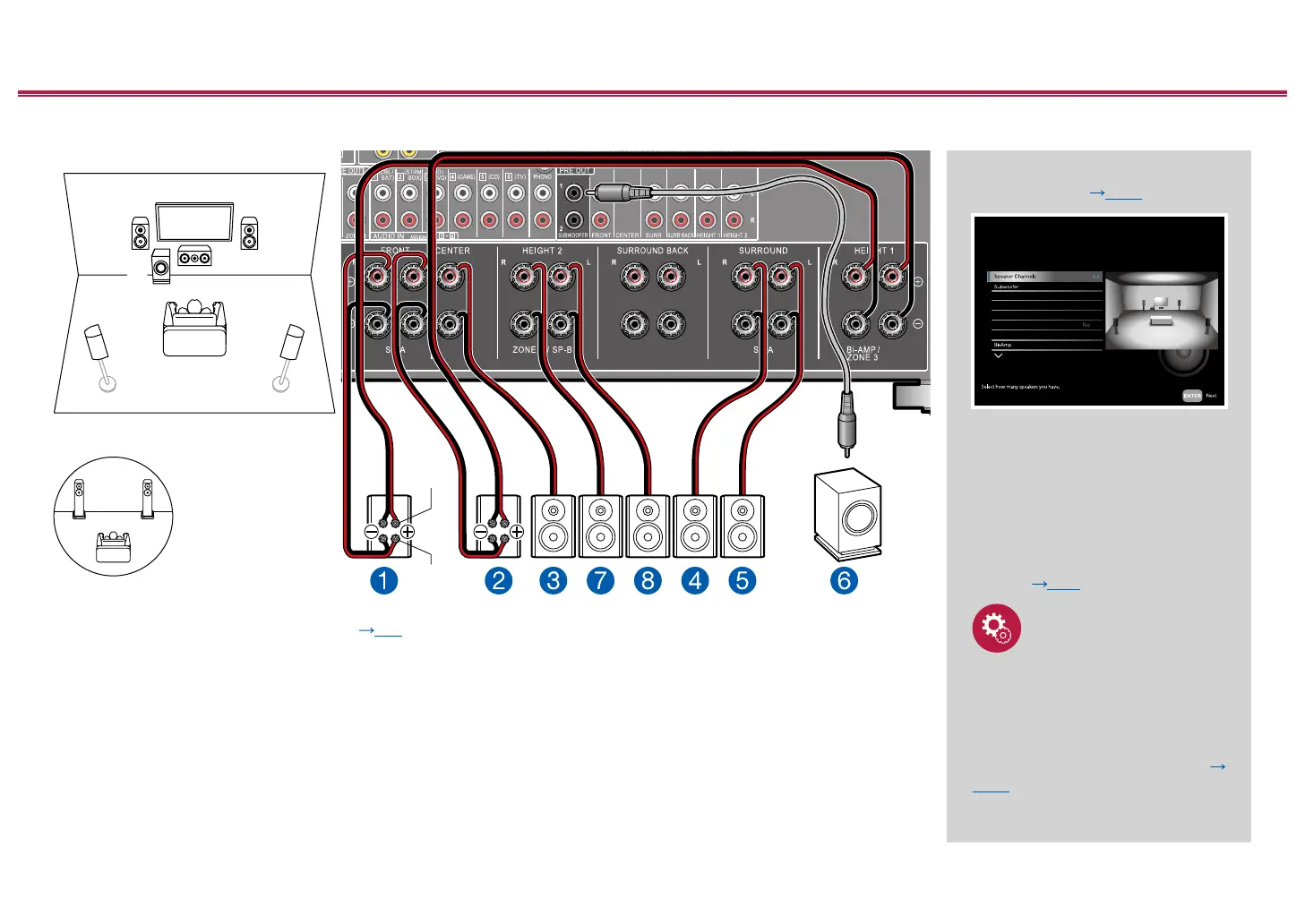

You can congure a 5.1 Channel System ( p19) by connecting front speakers that support Bi-Amping connection.
The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar
connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction
manual of your speakers as well.
MAIN ROOM: This is a basic 5.1 Channel System.
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing 5.1-ch playback in the main room
(where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also,
different sources can be played back in both rooms.
To Next Page
