Connecting a Pre-main Amplier (ZONE 2)

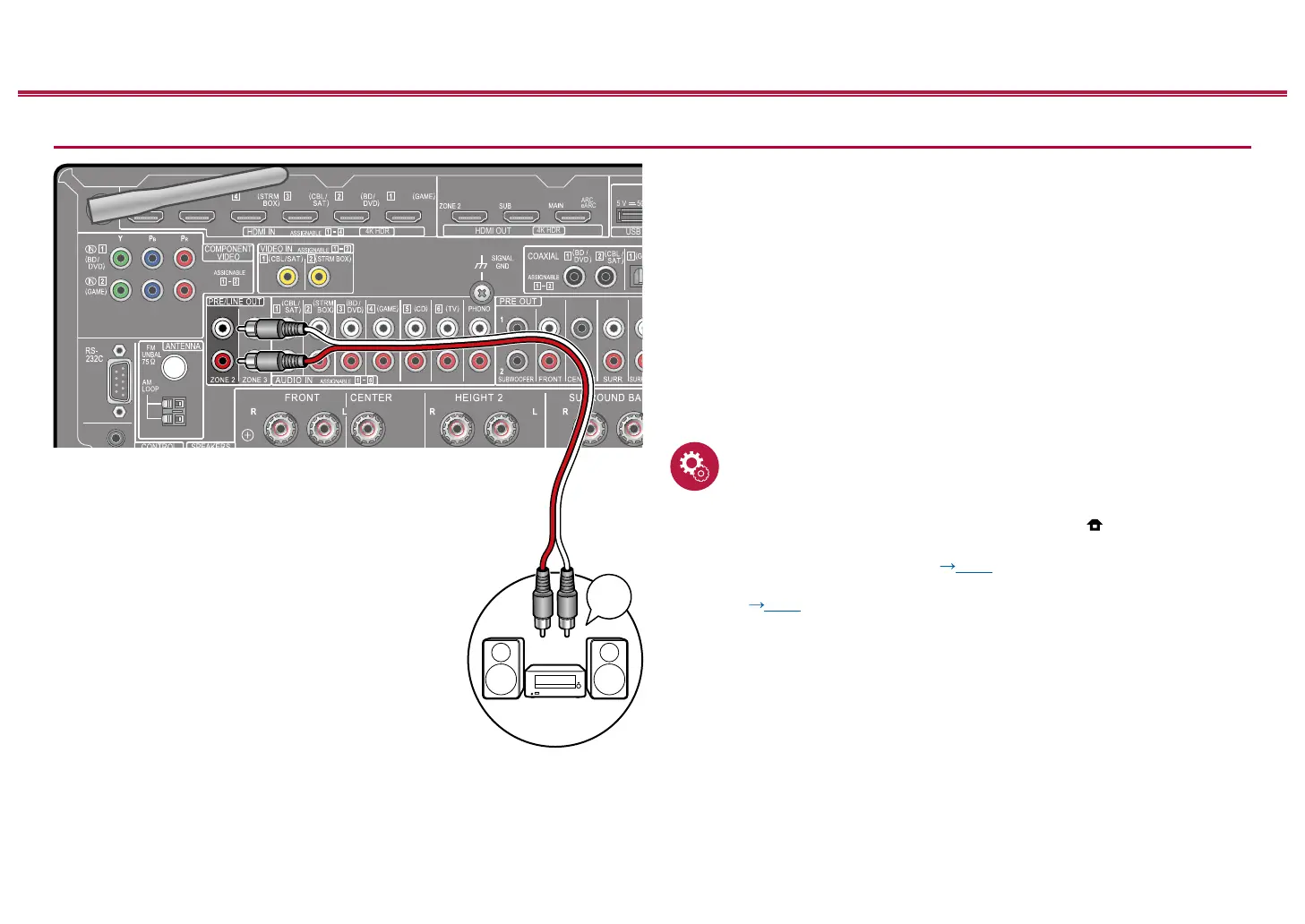

You can enjoy 2-ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). Connect the ZONE 2 PRE/
LINE OUT jacks of the unit and the LINE IN jacks of the pre-main amplier or
power amplier in a separate room with an analog audio cable. The same source
can be played back in the main room and ZONE 2 simultaneously. Also, different
sources can be played back in both rooms.
• To output audio from an externally connected AV component to ZONE
2, connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not
equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or
analog audio cable. Also, the audio from externally connected AV components
can be output to ZONE 2 only when the audio is analog or 2ch PCM signal.
When the AV component is connected to this unit with a digital coaxial cable or
digital optical cable, change the audio output of the AV component to the PCM
output.
Setup
• Settings are required to output audio to ZONE 2. Press on the remote
controller to display the Home screen, then set "System Setup" - "Speaker" -
"Conguration" - "Zone 2 Preout" ( p159) to "Zone 2".
• When connecting the power amplier, set "Multi Zone" - "Zone 2" - "Output
Level" (
p174) to "Variable" on the System Setup menu. If it is not set,
a large volume is output and the power amplie, speakers, etc. may be
damaged.
ZONE B
(LINE OUT)
4K HDR
4K HDR
HDMI OUT
ARC
eARC
USB
5 V 500 mA
LINE
IN
a
Premain Amp.
a Analog audio cable
