12V TRIGGER OUT jack
When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD
player to this unit, the device can be turned on or set to standby by interlocking
the operation on this unit. When the desired input is selected on the unit, power
link operation will be activated with a control signal of maximum 12 V/100 mA
from the 12V TRIGGER OUT A jack or maximum 12 V/25 mA when using the
12V TRIGGER OUT B jack. You can select the zone to output the control signal
by setting each of the inputs.

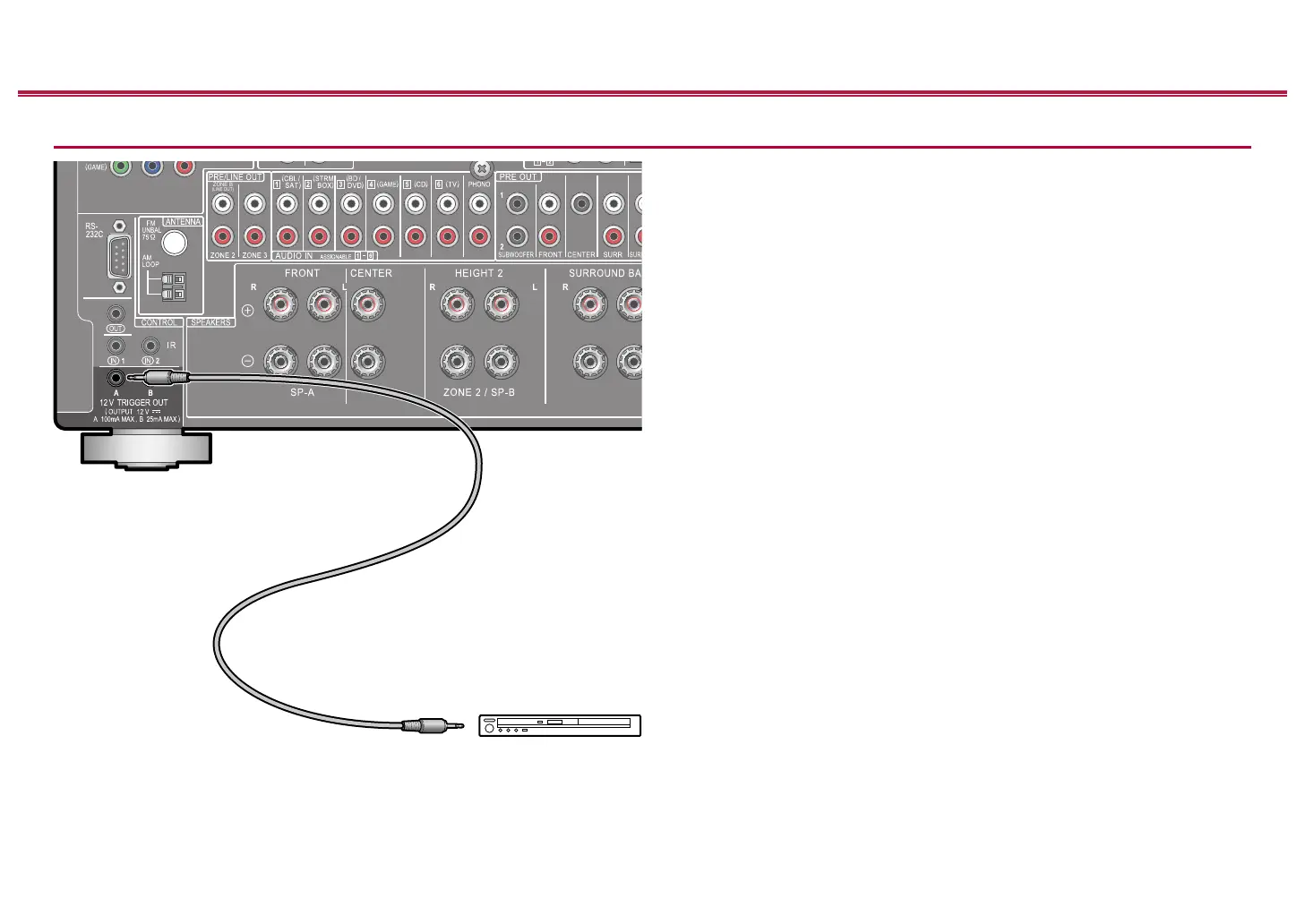

• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without
resistance. Do not use a stereo mini plug cable.
a Monaural mini plug cable (ø1/8″/3.5 mm)
ZONE B
(LINE OUT)
a
BD/DVD
