 "Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
Height 1 Speaker
Height 2 Speaker
Front High
1 ch
---
Speaker B
Zone 2 Preout Zone 2
5.1.2 ch
Zone Speaker
• Speaker Channels: 5.1.2 ch
• Subwoofer: 1ch
• Height 1 Speaker: Select the type of
height speaker actually installed.
• Height 2 Speaker: ---
• Zone Speaker: No
• Speaker B: Yes
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Symmetry / All Channel Adjust / Front
Align ( p203)

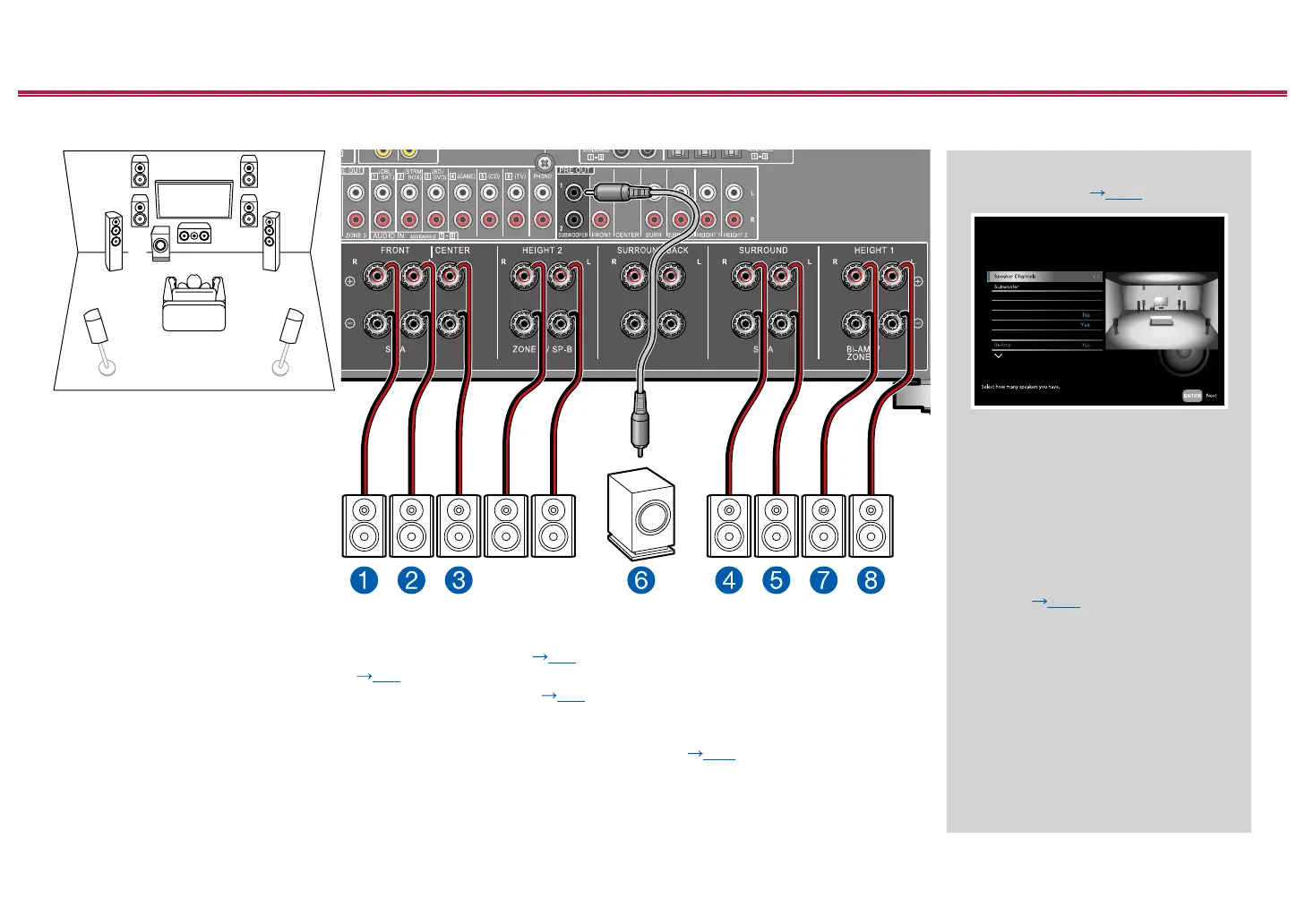

 5.1.2 Channel System + SPEAKER B





＊＊
ZONE B
(LINE OUT)
Speaker B
This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
 Front High Speakers/Rear High Speakers Installation Example ( p22)
 Ceiling Speakers Installation Example ( p23)
 Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p24)
Apart from the main speaker system (Speaker A System), you can also connect another system of front speakers to be the
Speaker B System and build a 5.1.2 Channel System. When connected as a Speaker B System, you can switch the same
audio for output with Speaker A/B/A+B. Switch Speakers with "Speakers" in “AV Adjust” ( p199) .
 Speaker B
