"Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
1 ch
Speaker B
Zone 2 Preout
Zone 2
Zone 2
5.1.4 ch
Zone Speaker
Height 1 Speaker
Height 2 Speaker
Top Middle
Rear High
• Speaker Channels: 5.1.4 ch
• Subwoofer: 1ch
• Height 1 Speaker:
Select the type of
height speaker actually installed.
• Height 2 Speaker:
Select the type of
height speaker actually installed.
• Zone Speaker: Zone 2
• Speaker B: No
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Symmetry / All Channel Adjust / Front
Align ( p203)
Setup
To output the video and audio of the
HDMI input to ZONE 2, from the Home
screen, set "System Setup" - "Input/
Output Assign" - "TV Out/OSD" - "Zone
2 HDMI" (
p153) to "Use".

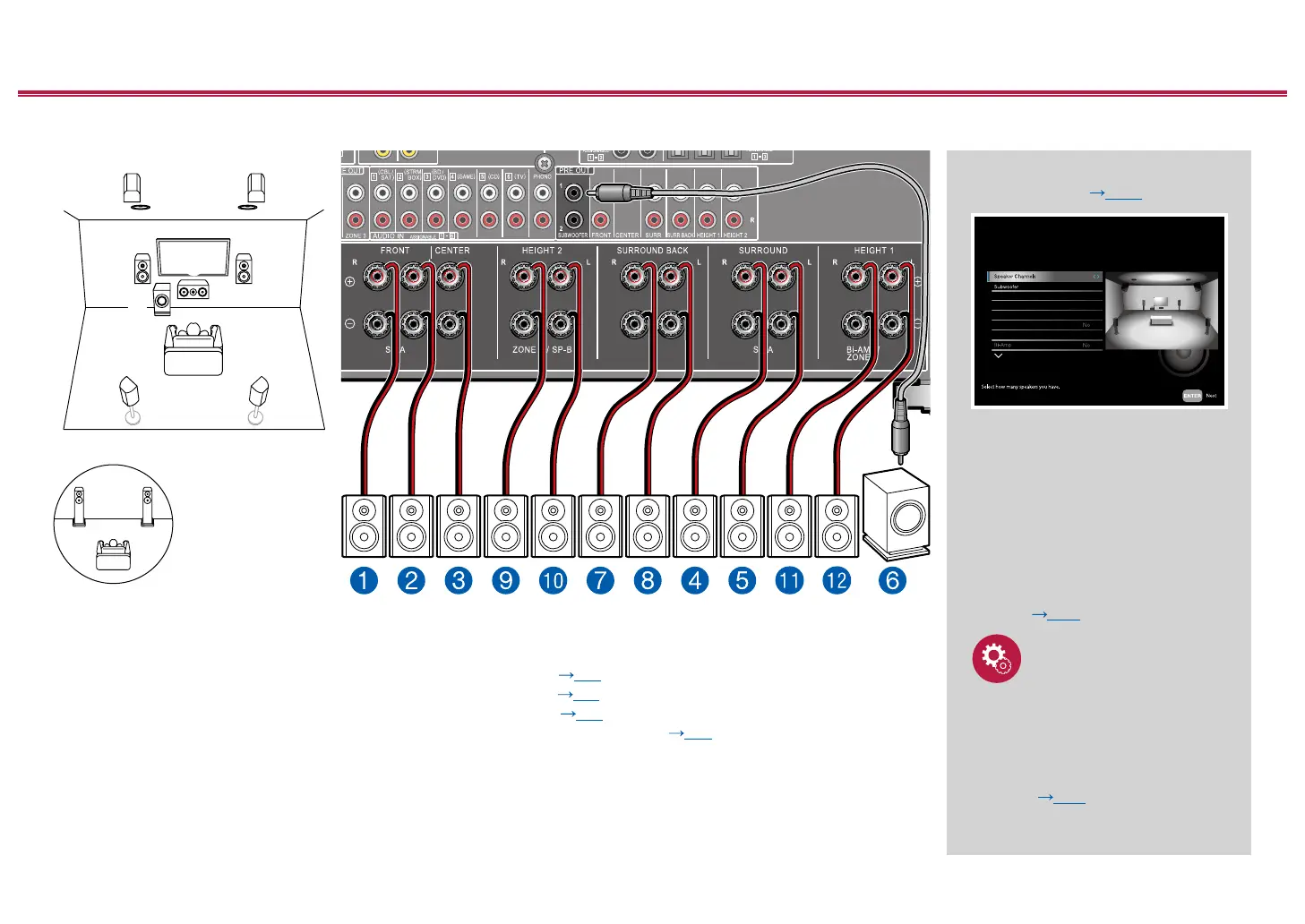

5.1.4 Channel System + ZONE SPEAKER
MAIN ROOM
ZONE 2
MAIN ROOM:This is an example of combining the top middle speakers at the front and the rear high speakers at the rear
to the 5.1 Channel System. The height speakers in front can be selected from following 4 types. The height speakers that
can be combined at the rear differ depending on the height speakers used at the front.
Combination example when Top Front Speakers are used at the front ( p30)
Combination example when Top Middle Speakers are used at the front ( p32)
Combination example when Front High Speakers are used at the front ( p33)
Combination example when Dolby Enabled Speakers (Front) are used at the front ( p35)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different
sources can be played back in both rooms.
