Connecting Playback Devices

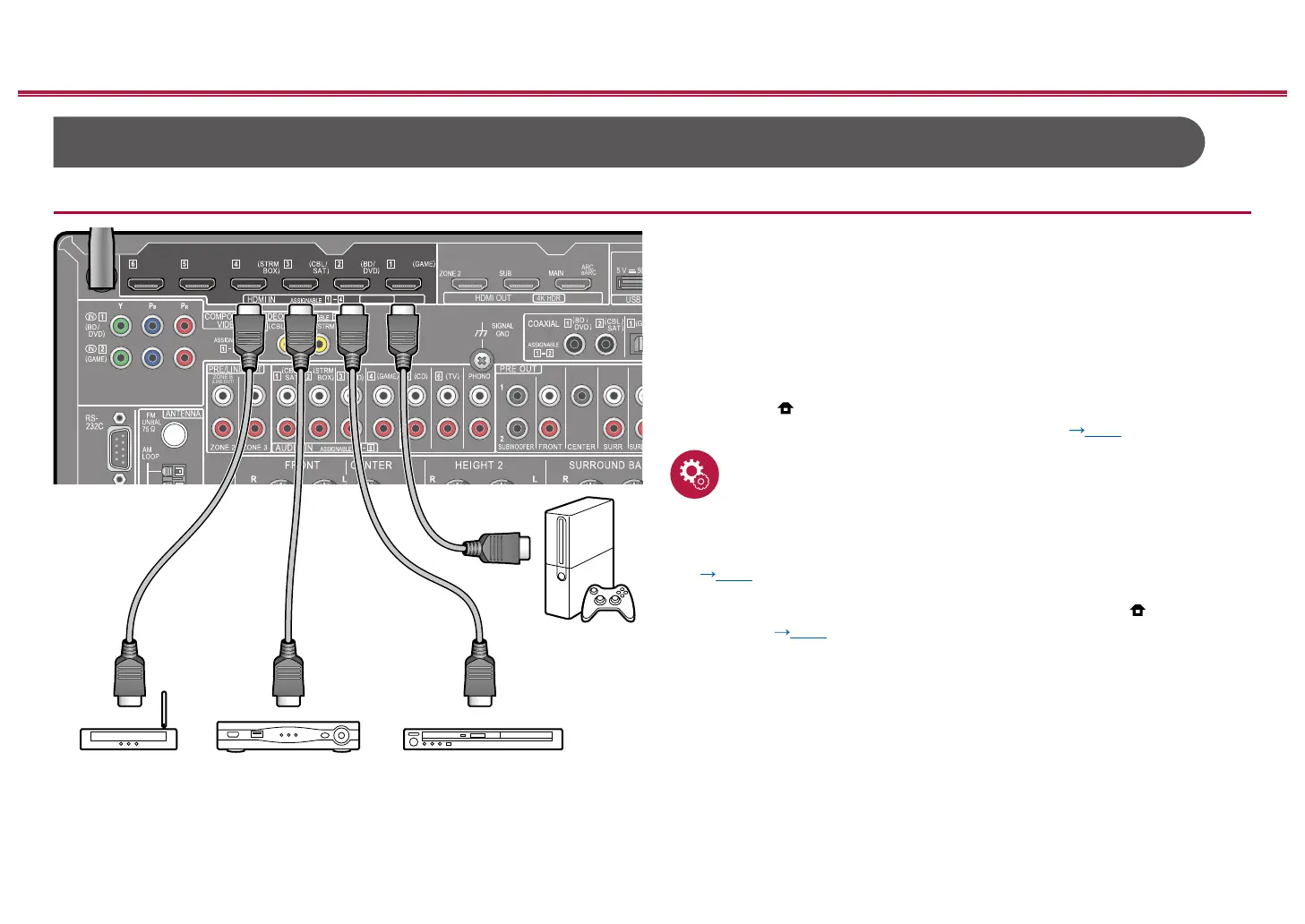

Connecting an AV Component with HDMI Jack Mounted
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• If a 4K high-quality video is played, use a Premium High Speed HDMI
Cable or Premium High Speed HDMI Cable with Ethernet whose package
has a "PREMIUM Certied Cable" label. Furthermore, in Home, displayed
by pressing on the remote controller, set “System Setup” - “Input/Output
Assign” - “TV Out/OSD” - “HDMI 4K Signal Format” ( p153) to “Enhanced”.
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "4. ARC Setup" in Initial Setup
( p202). If "No, Skip" is selected, settings are required in the System
Setup menu after Initial Setup is completed. Settings are made in "System
Setup" - "Hardware" - "HDMI" in Home displayed by pressing on the remote
controller. ( p167)
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned off.
ZONE B
(LINE OUT)
4K HDR
4K HDR
HDMI OUT
ARC
eARC
USB
a
Streaming media
player
GAME
BD/DVDCable/Satellite
set-top box
a HDMI cable
