To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function (*), connect
an HDMI cable and digital optical cable.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button ( p15) on the
remote controller or "AV Adjust" ( p198). Note that this jack is not ARC-
compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
• If a 4K high-quality video is played, use a Premium High Speed HDMI
Cable or Premium High Speed HDMI Cable with Ethernet whose package
has a "PREMIUM Certied Cable" label. Furthermore, in Home, displayed
by pressing on the remote controller, set “System Setup” - “Input/Output
Assign” - “TV Out/OSD” - “HDMI 4K Signal Format” ( p153) to “Enhanced”.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
4K HDR
HDMI OUT
ARC
eARC
USB
5 V 500 mA
a b
TV

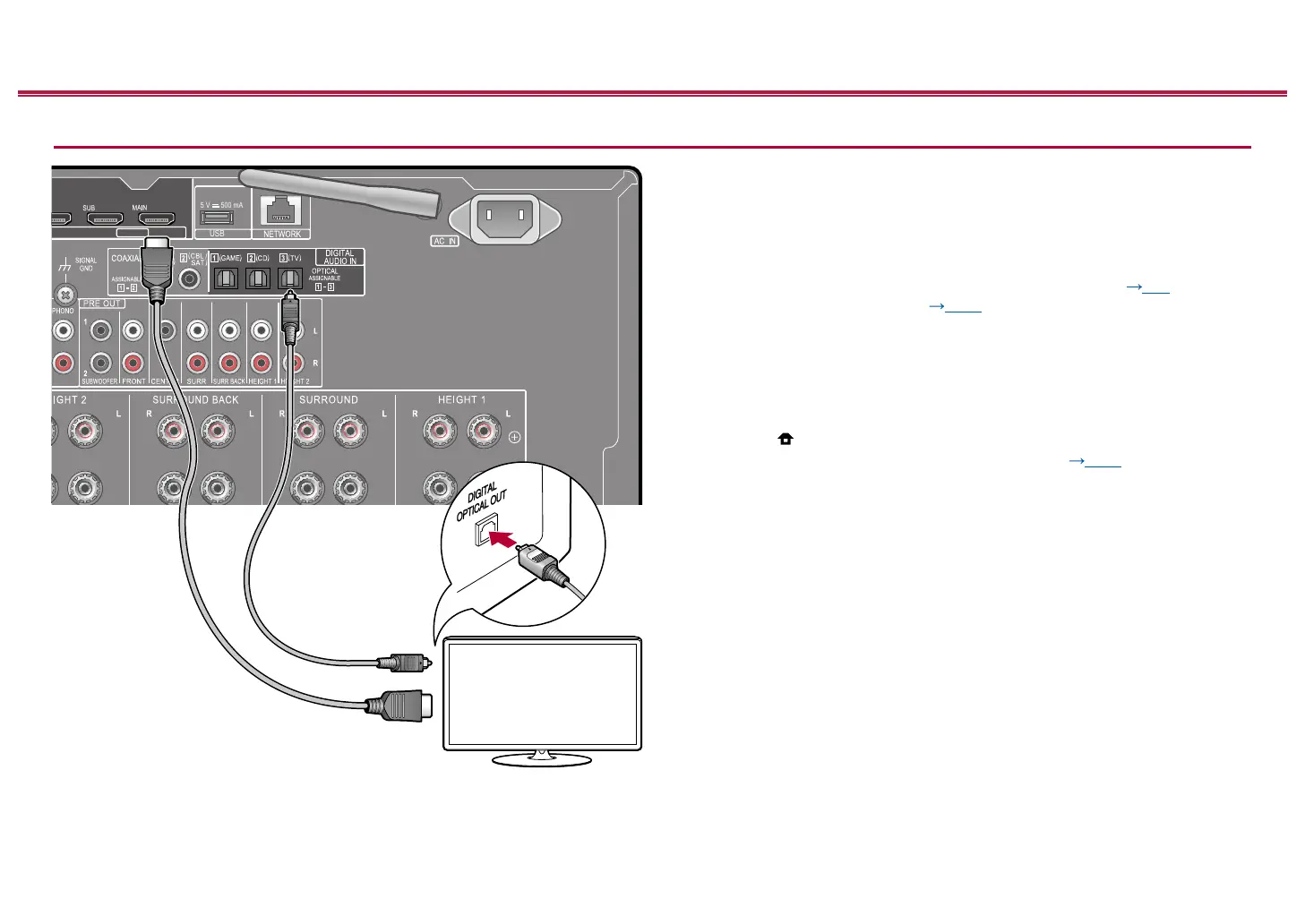

a HDMI cable, b Digital optical cable
