COOLING SYSTEM

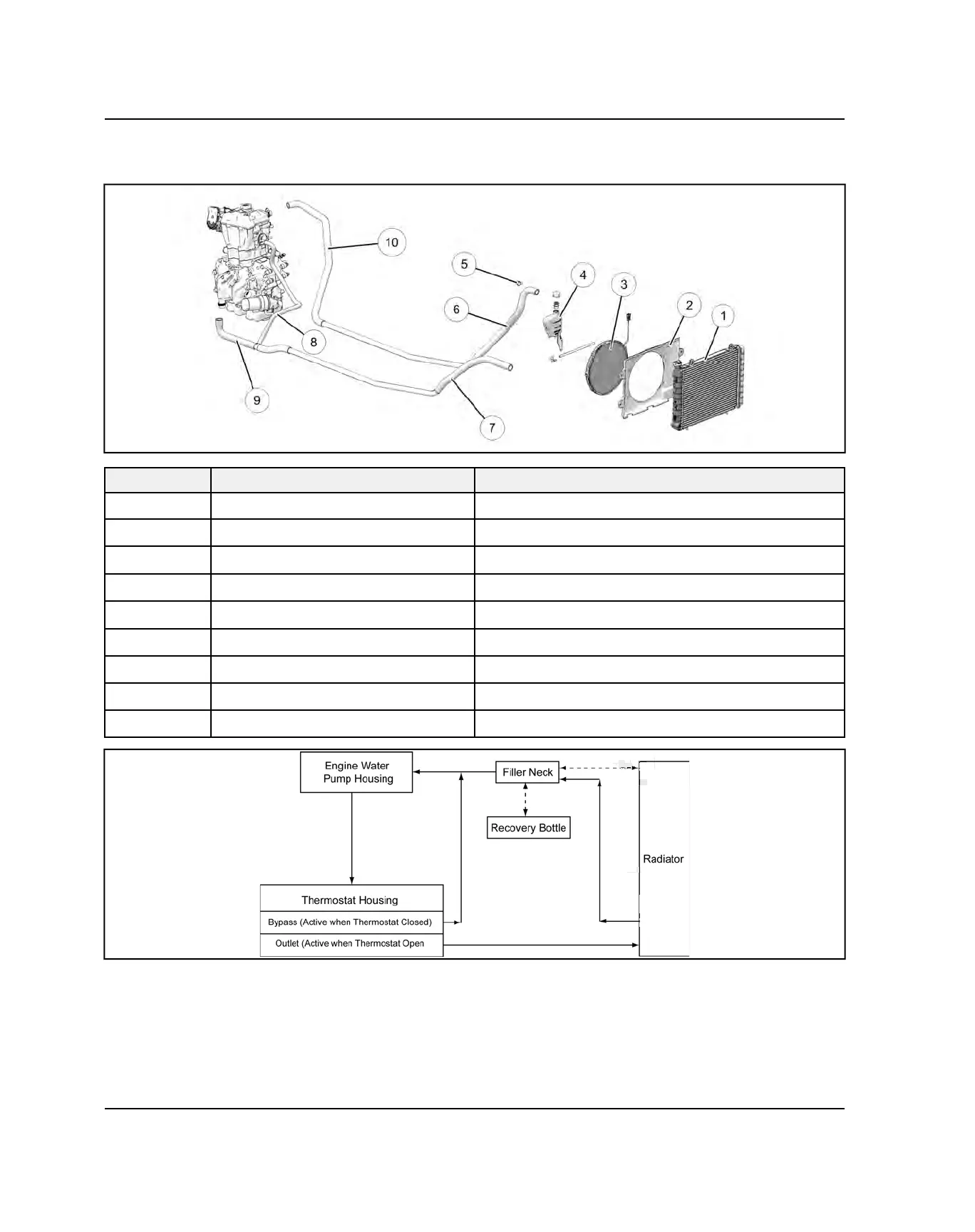

COOLING SYSTEM ASSEMBLY VIEW AND COOLANT FLOW DIAGRAM
REF.
DESCRIPTION NOTES
q
Radiator
w
Fan Shroud
e
Cooling Fan
r
Recovery Bottle
t
Radiator Drain Plug
y
Upper Radiator Hose
u
Lower Radiator Hose
i
Bypass Hose
o
Water Pump Hose
