6
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
6.11
CLUTCH ALIGNMENT / OFFSET / CENTER DISTANCE
INSPECTION
1. Remove the outer PVT cover, drive belt, drive clutch
and driven clutch as outlined in this chapter.
NOTICE
The inner PVT cover does not need to be removed to
check the clutch center to center distance.

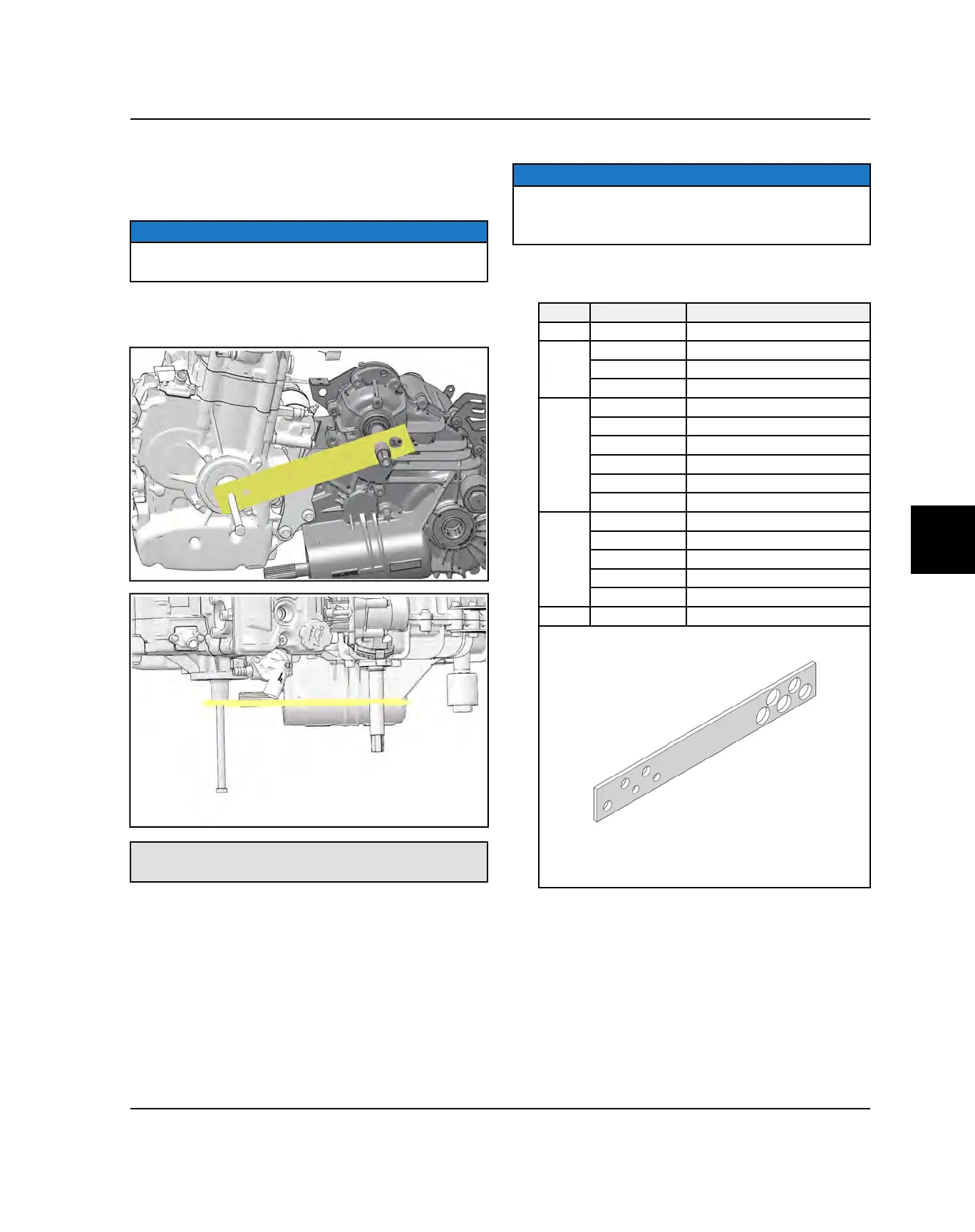

2. Install the Clutch Center Distance Tool onto the
crankshaft and transmission input shaft. The pictures
below show a properly installed tool.
Clutch Center Distance Tool
PU-50658 or PU-50658-A
NOTICE
Images for Reference only. The tool shown should only
be used to check center to center distance.
The location the tool rests on the shafts may vary.
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-19
ACE 570
2015-16 RGR ETX
2013–19 RZR 570
2014–19
RANGER 500/570
2015-19 RANGER 570 Full-Size
4
2014-19
RANGER 900/1000
2015-19 RZR 900
2016-19 RZR 1000
2016–19 ACE 900
2016–19
GENERAL
5 2015-18 RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a
4
3. If the tool fits as shown above, the clutch center to
center distance is correct.
4. If the tool does not fit as shown above, adjustment is
needed.
PVT SYSTEM
