11.2
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
GENERAL INFORMATION
TORQUE SPECIFICATIONS
ITEM
TORQUE VALUE
Body T-40 Screws 8 ft-lbs (11 Nm)
Bearing Carrier Fasteners 40 ft-lbs (54 Nm)
Ball Joint Fastener
30 ft-lbs (41 Nm)
Control Arm Fasteners 40 ft-lbs (54 Nm)
Hub Castle Nut (front) 90 ft-lbs (122 Nm)
Hub Castle Nut (rear) 110 ft-lbs (150 Nm)
Seat Belt Mounting
Fasteners
40 ft-lbs (54 Nm)
Shock Mounting Bolts
(rear)
40 ft-lbs (54 Nm)
Steering Rack Mounting
Bolts
16 ft-lbs (22 Nm)
Steering Shaft to EPS 20 ft-lbs (27 Nm)
Steering Shaft to Steering
Rack
46–51 ft-lbs (62-69 Nm)
Steering Wheel Nut 65 ft-lbs (88 Nm)
Strut Casting Pinch Bolt 26 ft-lbs (35 Nm)
Strut Rod Retaining Nut
(Top)
15 ft-lbs (21 Nm)
Tie Rod End Jamb Nut
14 ft-lbs (19 Nm)
Tie Rod End Mounting
Nut
40 ft-lbs (54 Nm)
Wheel Lug Nuts
36 ft-lbs (49 Nm)
NOTICE
Refer to exploded views throughout this chapter for
more torque specifications, component identification,
and location of components.
SPECIAL TOOLS
PART
NUMBER
TOOL DESCRIPTION
2870872
Shock Spanner Wrench
2870623
Shock Spring Compressor Tool
2876389 Multi-Function Pliers
2870871 Strut and Ball Joint Tool Set
2871573
Strut Spring Compressor (LH)
2871574
Strut Spring Compressor (RH)
Bosch Automotive Service Solutions: 1-800-345-2233
or http://polaris.service-solutions.com/

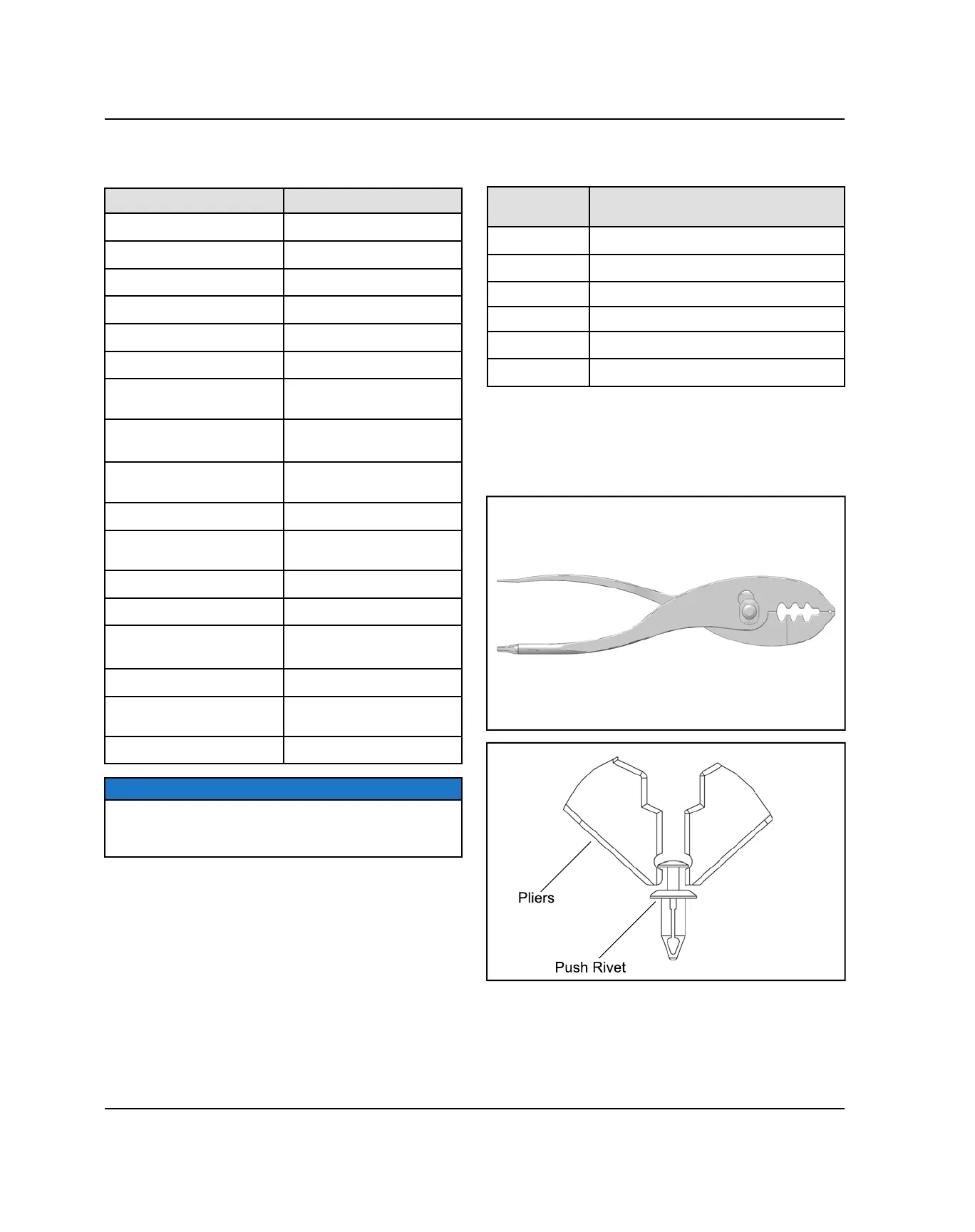

Included in this machine’s tool kit, the multi-function
pliers is designed to remove the plastic push rivets used
to fasten body components.
BODY / FRAME
