SHIFT LEVER
REMOVAL

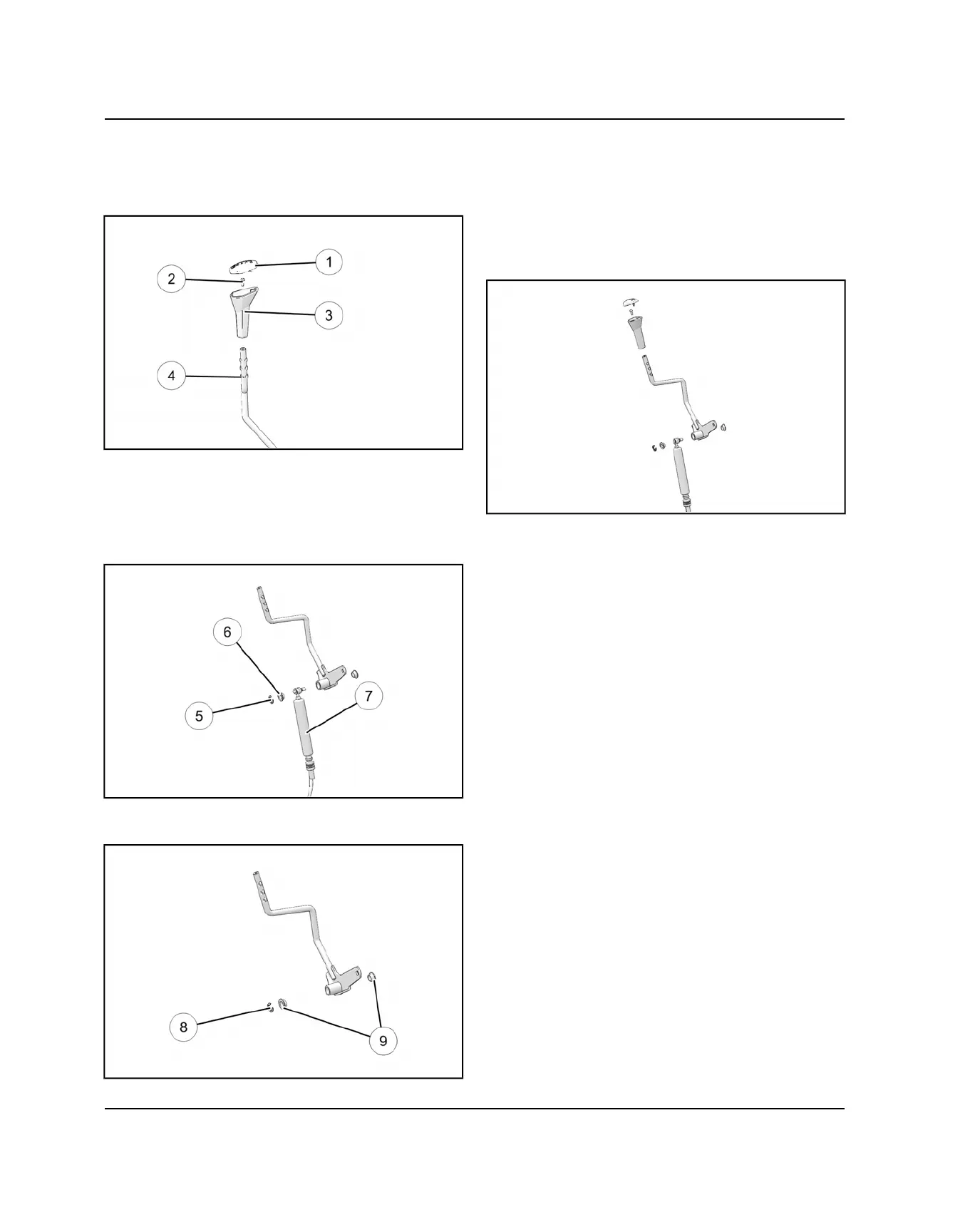

1. Remove the shift knob cover
q
, retaining screw
w
and shift knob
e
from the shift lever
r
.
2. Remove the screws retaining the center console
using a T27 and T30 Torx driver. Remove the
console from the vehicle.
3. Remove the clip
t
and washer
y
retaining the shift
cable
u
to the shift lever and disconnect the cable
end from the lever.
4. Remove the retaining ring
i
and slide the shift lever
off the mounting bracket and out from the frame.
5. Remove both bushings
o
from the shift lever and
service as needed.
INSTALLATION
1. Perform the removal steps in reverse order to install
the gear shift lever (lever, cable, console, shift knob)
