6.6
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

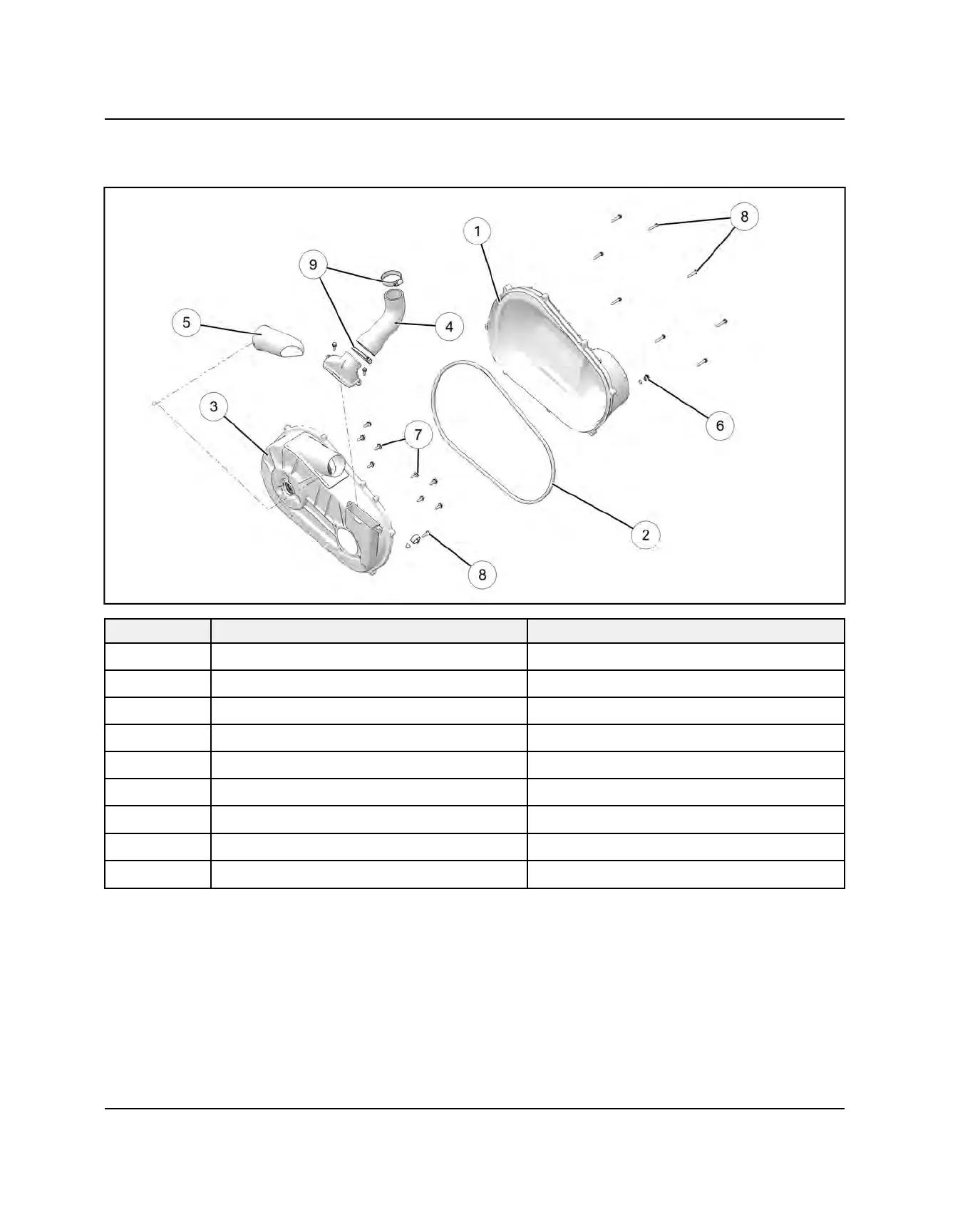

PVT SYSTEM SERVICE
PVT SEALING, GUARD, AND DUCT COMPONENTS
REF
DESCRIPTION NOTES
q
Outer Clutch Cover
w
Clutch Cover Seal
e
Inner Clutch Cover
r
PVT Intake Duct
t
PVT Exhaust Duct
y
Drain Plug
u
Clamp Torque to 10 ft-lbs (14 Nm)
i
Screw Torque to 60 in-lbs (7 Nm)
o
Bolt
Torque to 24 in-lbs (3 Nm)
