9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
12.5
SWITCHES / CONTROLS

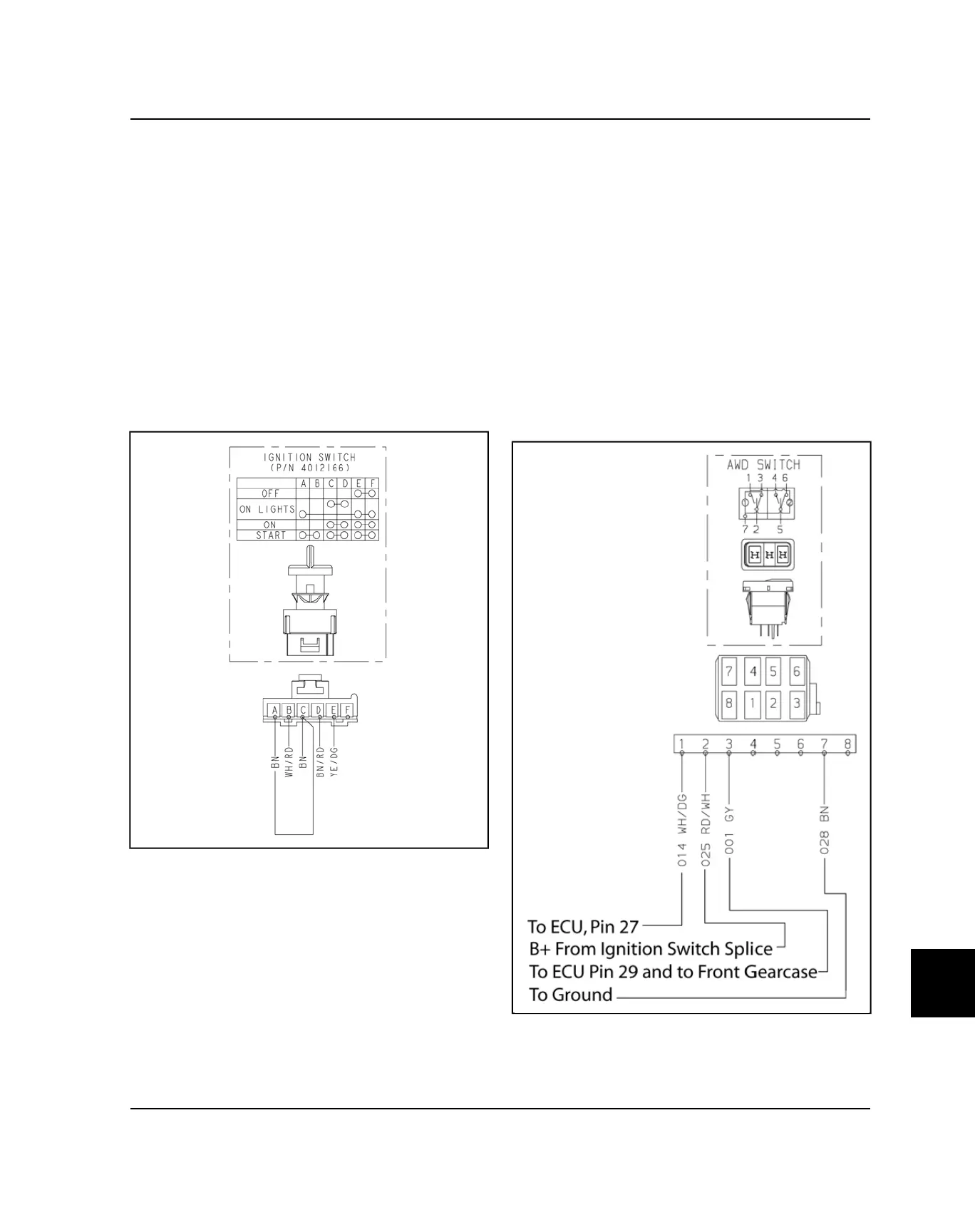

IGNITION / HEADLIGHT SWITCH
1. Open the hood (see Chapter 5).
2. Disconnect the ignition switch harness, by
depressing the connector lock and pulling on the
connector. Do not pull on the wiring.
3. Inspect the switch connections and test the switch
for continuity.
• Turn the ignition key to ON LIGHTS. There should be
continuity between switch pins C and D; A, E and F.
• Turn the ignition key to ON. There should be continuity
between switch pins C and D; E and F.
• Turn the ignition key to START. There should be
continuity between switch pins A and B; C and D; E
and F.
AWD / 2WD / TURF SWITCH
1. Remove the dash panel from the dash (see Chapter
5).
2. Disconnect the switch harness (Gray, Orange/White,
Brown, White/Green), by depressing the connector
lock and pulling on the connector. Do not pull on the
wiring.
3. Inspect the switch connections and test the switch
for continuity.
• When the switch is in position #1 (AWD), there should
be continuity between terminals 2 (Orange/White) and
3 (Gray).
• When the switch is in position #3 (TURF), there should
be continuity between terminals 1 (White/Green) and 2
(Orange/White).
ELECTRICAL
