6.16
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

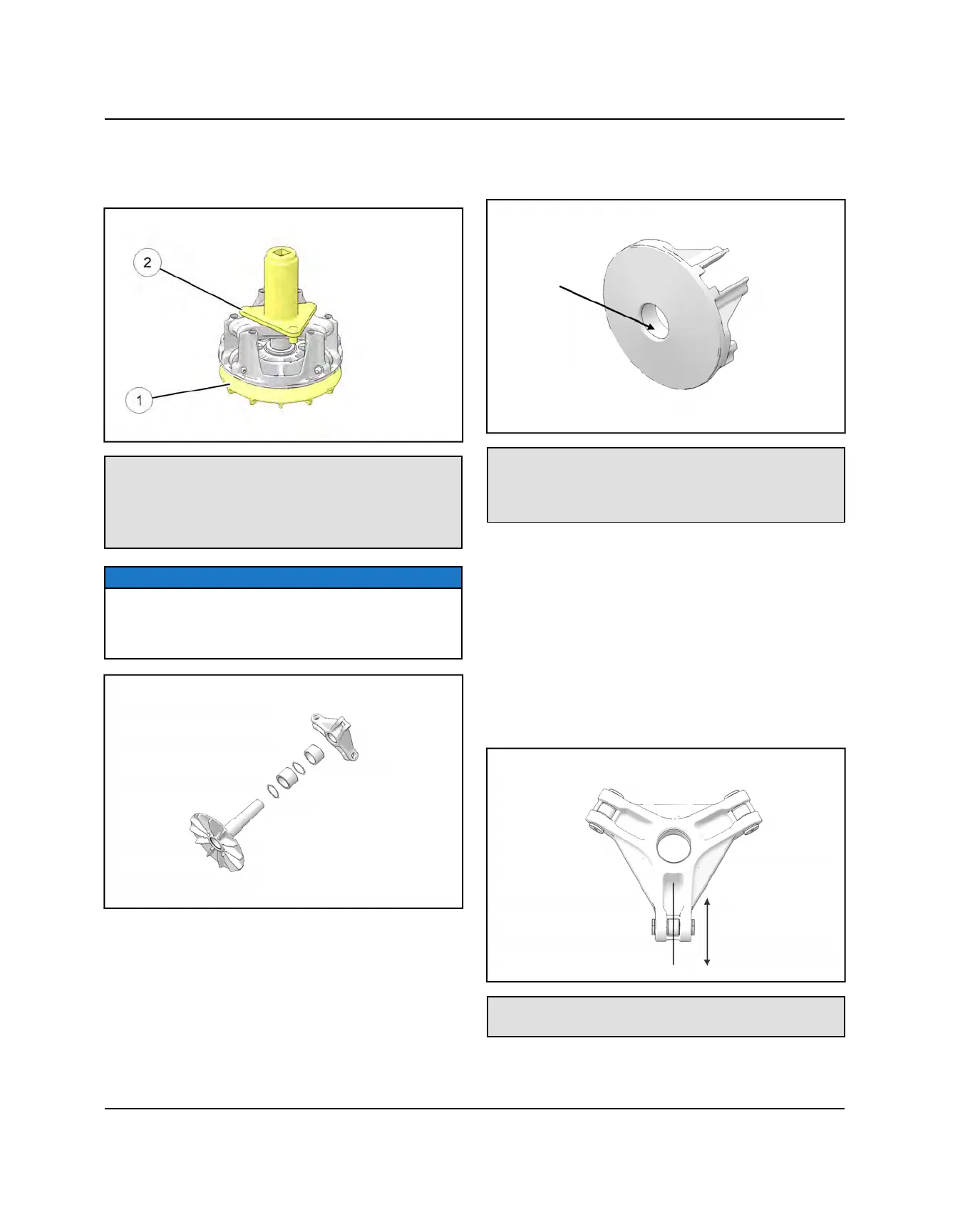

SPIDER REMOVAL
1. Install clutch in holding fixture
q
and loosen the
spider (counterclockwise) using Clutch Spider
Removal Tool
w
.
Clutch Holding Fixture:
PN 2871358-A
Spider Removal Tool:
PN 2870341
NOTICE
It is important that the same number and thickness of
washers are reinstalled beneath the spider during
assembly. Be sure to note the number and thickness of
these washers.
Moveable Sheave Bushing Inspection
2. Inspect the Teflon™ coating on the moveable sheave
bushing.
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more brass than Teflon is
visible on the bushing. Refer to bushing replacement in
this chapter.
ROLLER, PIN, AND THRUST WASHER
INSPECTION
1. Inspect all rollers, bushings and roller pins by pulling
a flat metal rod across the roller. Turn roller with your
finger. If you notice resistance, galling, or flat spots,
replace rollers, pins and thrust washers in sets of
three. Also inspect to see if roller and bushing are
separating. Bushing must fit tightly in roller. Use the
Roller Pin Tool to replace rollers and pins. Take care
not to damage roller bushing or bearing surface of
the new pin during installation.
Roller Pin Tool:
PN 2870910
PVT SYSTEM
