3.138
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

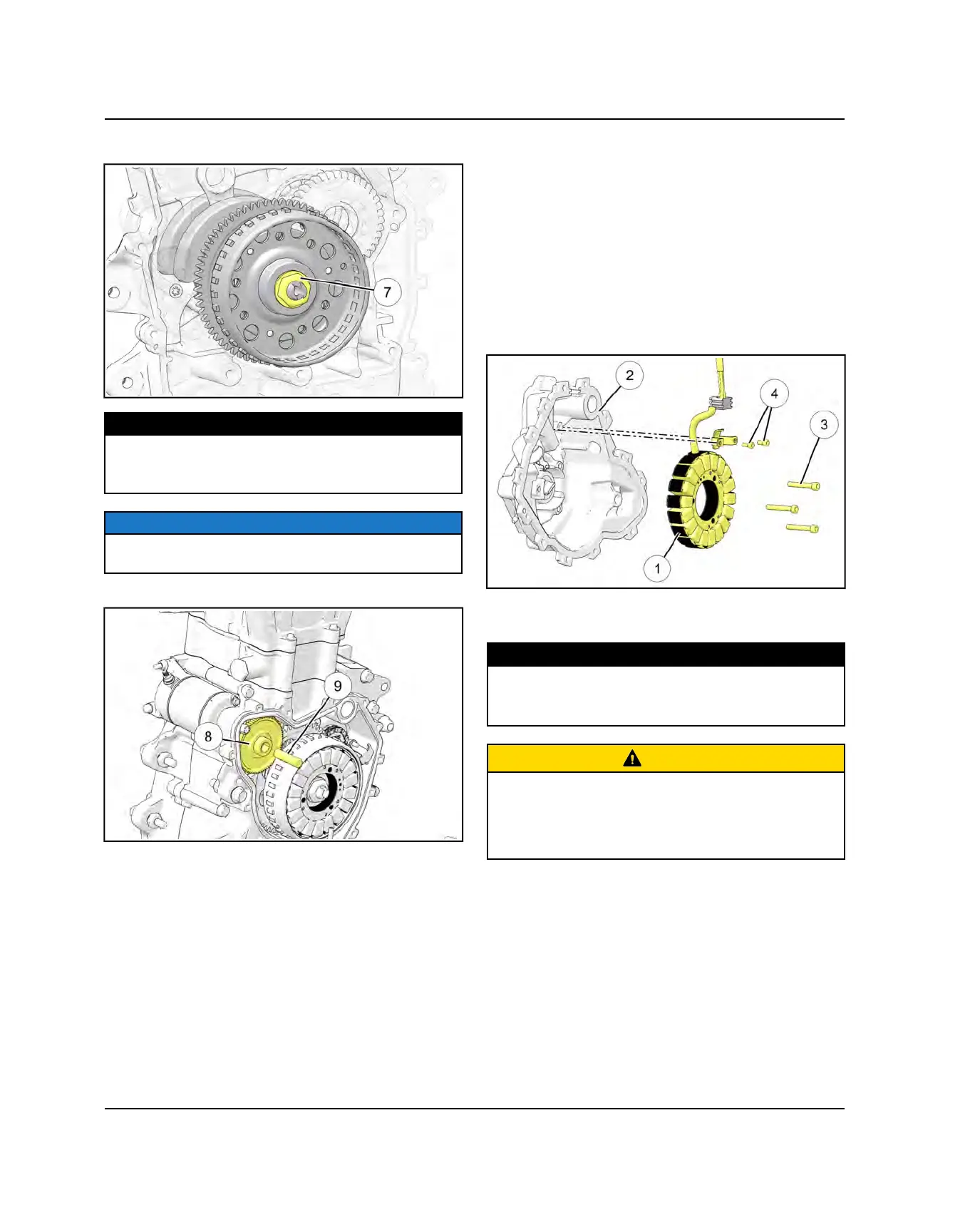

11. Torque new flywheel nut
u
to specification.
TORQUE
Flywheel Retaining Nut:
1st: 133 ft-lbs (180 Nm)2nd: Back off 180°3rd: Re-
torque to 133 ft-lbs (180 Nm)
NOTICE
The flywheel nut has standard rotation (right hand)
threads.
12. Install starter idler gear
i
and shaft
o
.
STATOR / STATOR COVER INSTALLATION
1. Clean and degrease stator screws and threads in the
stator housing.
2. Clean mounting surfaces of stator
q
and housing
w
.
3. Apply crankcase sealant to edges of rubber stator
grommet.
4. Set the stator in housing and press wire grommet
into slot on housing.
5. Apply Loctite® 242™ to end (8-10 threads) of the
stator screws
e
and the wire routing bracket screws
r
.
6. Install a new stator cover gasket.
7. Install the stator cover.
TORQUE
Stator Wire Retainer:
6 ft-lbs (8 Nm)
Apply Loctite® 242™
CAUTION
The flywheel contains powerful magnets. Use caution
when installing the stator cover.
DO NOT place fingers between cover and crankcase at
any time during the installation process or injury could
result.
ENGINE / COOLING SYSTEM
