10.14
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
CREW

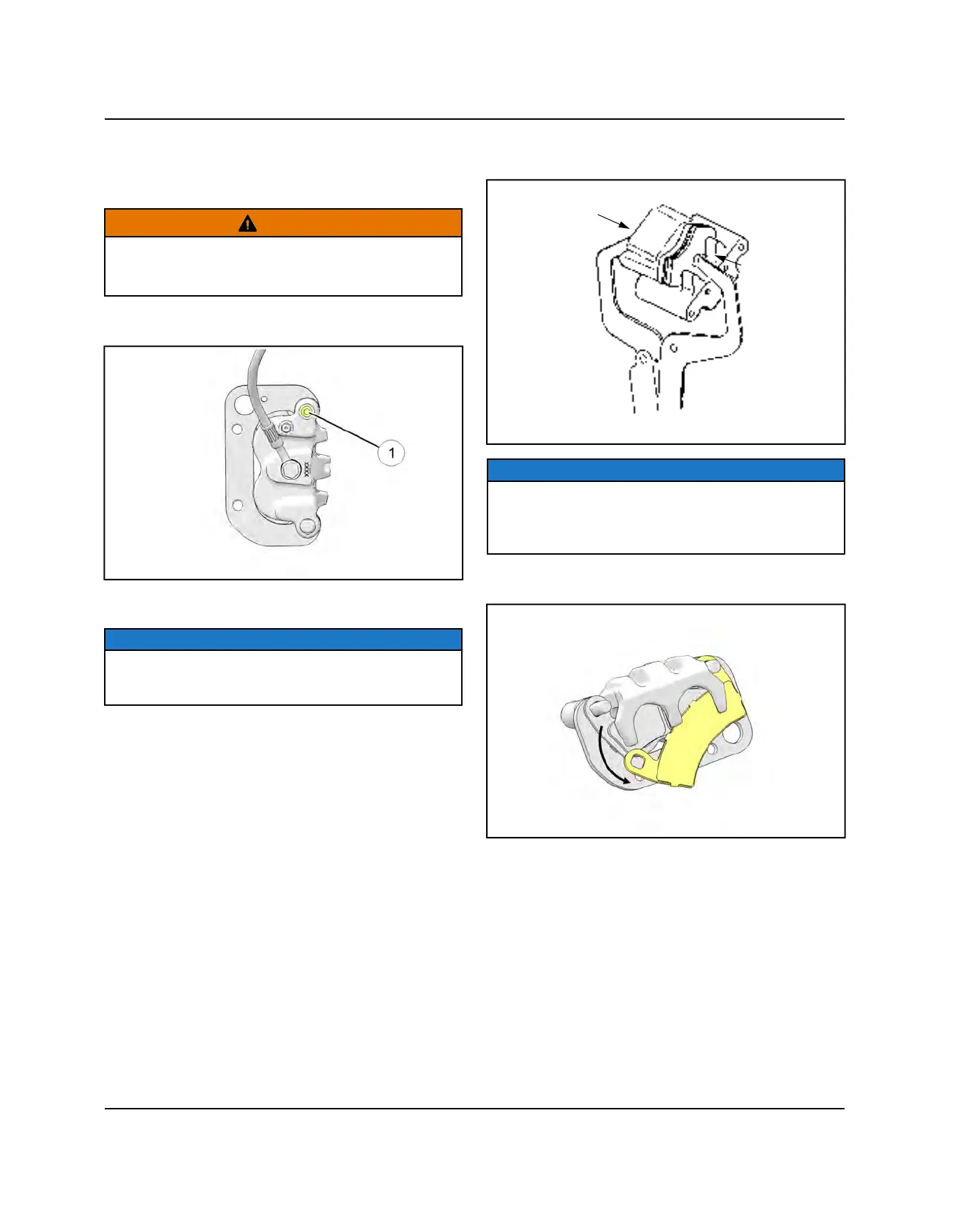

PAD REMOVAL - CREW
1. Elevate and support front of vehicle.
WARNING
Use care when supporting vehicle so that it does not tip
or fall.
Severe injury may occur if machine tips or falls.
2. Remove the wheel nuts, washers and front wheel.
Loosen pad adjuster screw (Item 1) 2-3 turns.
3. Remove the upper and lower caliper mounting bolts
and remove the caliper from the front hub.
NOTICE
When removing caliper, use care not to damage brake
line. Support caliper so to avoid kinking or bending
brake line.
4. Push caliper piston into caliper bore slowly using a
C-clamp or locking pliers with pads installed.
NOTICE
Brake fluid will be forced through compensating port
into master cylinder fluid reservoir when piston is
pushed back into caliper. Remove excess fluid from
reservoir as required.
5. Push mounting bracket inward and slip outer brake
pad past edge. Then remove inner pad.
BRAKE SYSTEM
