9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
9.21

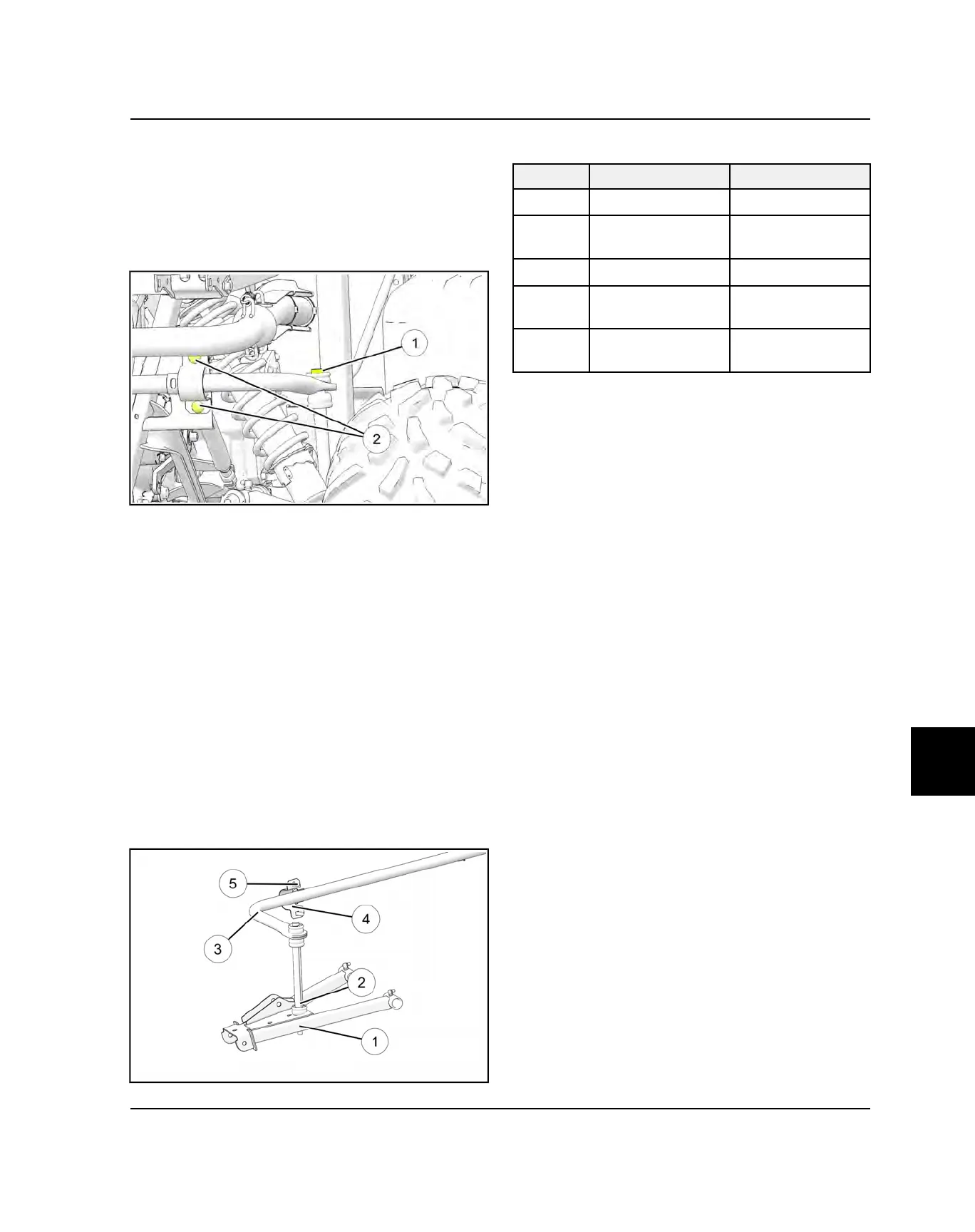

REAR STABALIZER BAR / LINKAGE
REMOVAL / INSTALLATION
1. Elevate and safely support vehicle with weight
removed from the rear wheel(s).
2. Remove the retaining nut
q
from the upper portion
of the stabilizer bar linkage bushing on each side of
the vehicle.
3. Remove the two fasteners
w
that secure the
stabilizer bar to the main frame on each side.
4. Remove the stabilizer bar from the frame and inspect
the stabilizer bar for straightness.
5. Inspect the stabilizer bar bushings and replace if
needed.
6. Inspect the rubber bushings on the stabilizer linkage
rod and replace if needed. If replacing the stabilizer
linkage, remove the lower shock bolt from the upper
A-arm.
7. Reverse this procedure for installation.
8. Torque the stabilizer retaining bolts and upper rubber
bushing nuts to specification.
9. If the stabilizer linkage was removed, torque the
lower shock retaining bolt to specification.
ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Lower A-Arm
w
Stabilizer Bar
Linkage
e
Stabilizer Bar
r
Stabilizer Bar
Bushing / Shield
t
Nut
Torque to 17 ft-lbs
(23 Nm)
STEERING / SUSPENSION
