9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
7.13

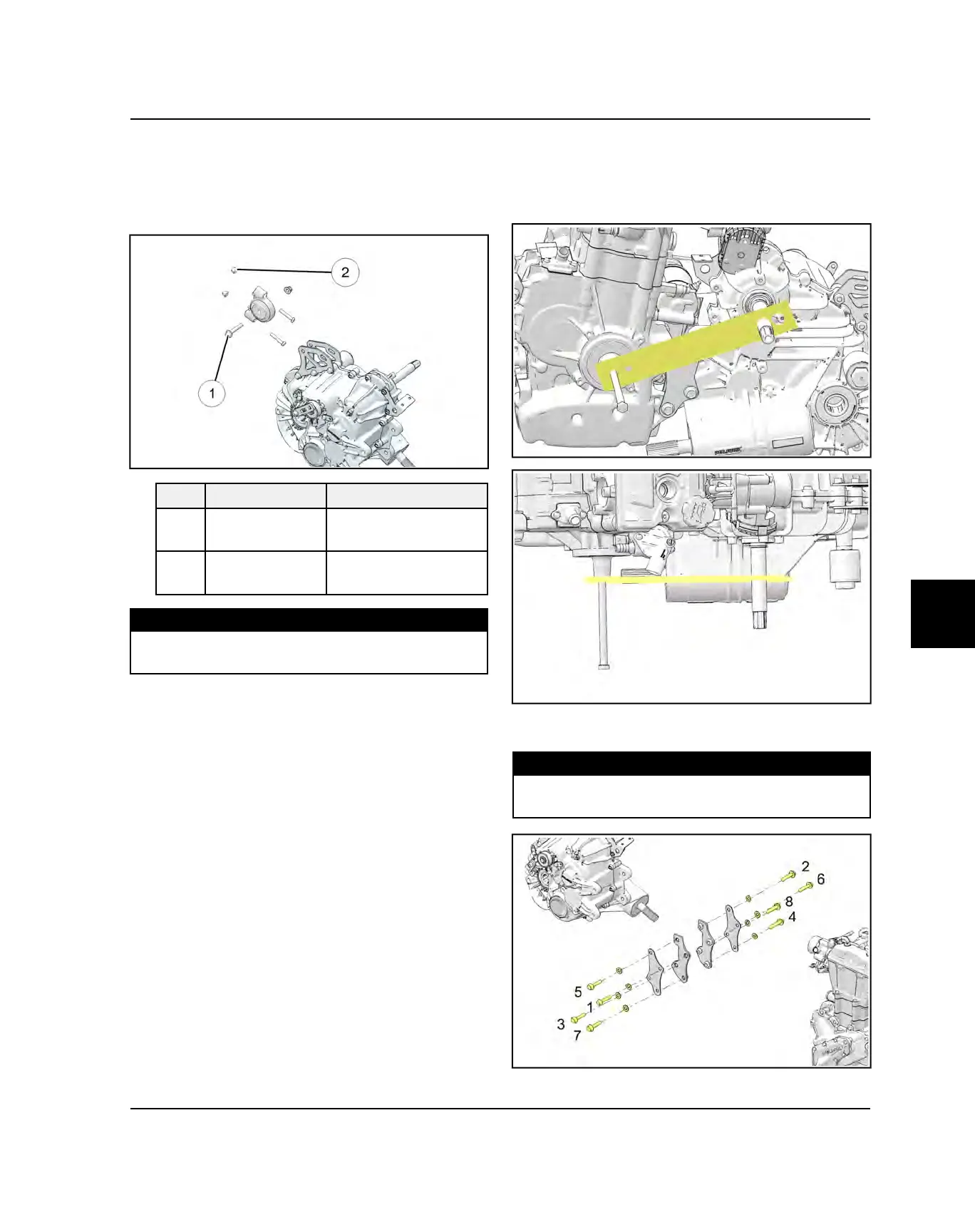

TRANSMISSION INSTALLATION
1. With the help of an assistant, position the
transmission into the vehicle frame through the top.
2. Install the rear transmission mount assemblies.
Torque all fasteners to specification.
REF.
DESCRIPTION NOTES
q
Fastener Bolt
Torque: 40 ft-lbs
(54 Nm)
w
Fastener Bolt
Torque: 25 ft-lbs
(34 Nm)
TORQUE
Rear Transmission Mount Bracket Bolts:
17 ft-lbs (23 Nm)
3. By hand, install the coupler brackets and the eight
engine to transmission coupler bolts. Do not torque
fasteners at this time.
4. Install the Clutch Center Distance Tool (PU-50658)
onto the crankshaft and transmission input shaft to
properly position the clutch center distance. The
pictures below show the tool (PU-50658) properly
installed.
5. In sequence, torque the eight engine coupler bracket
fasteners to specification.
TORQUE
Engine to Trans Coupler Fasteners
In Sequence:55 ft-lb (75 Nm)
TRANSMISSION
