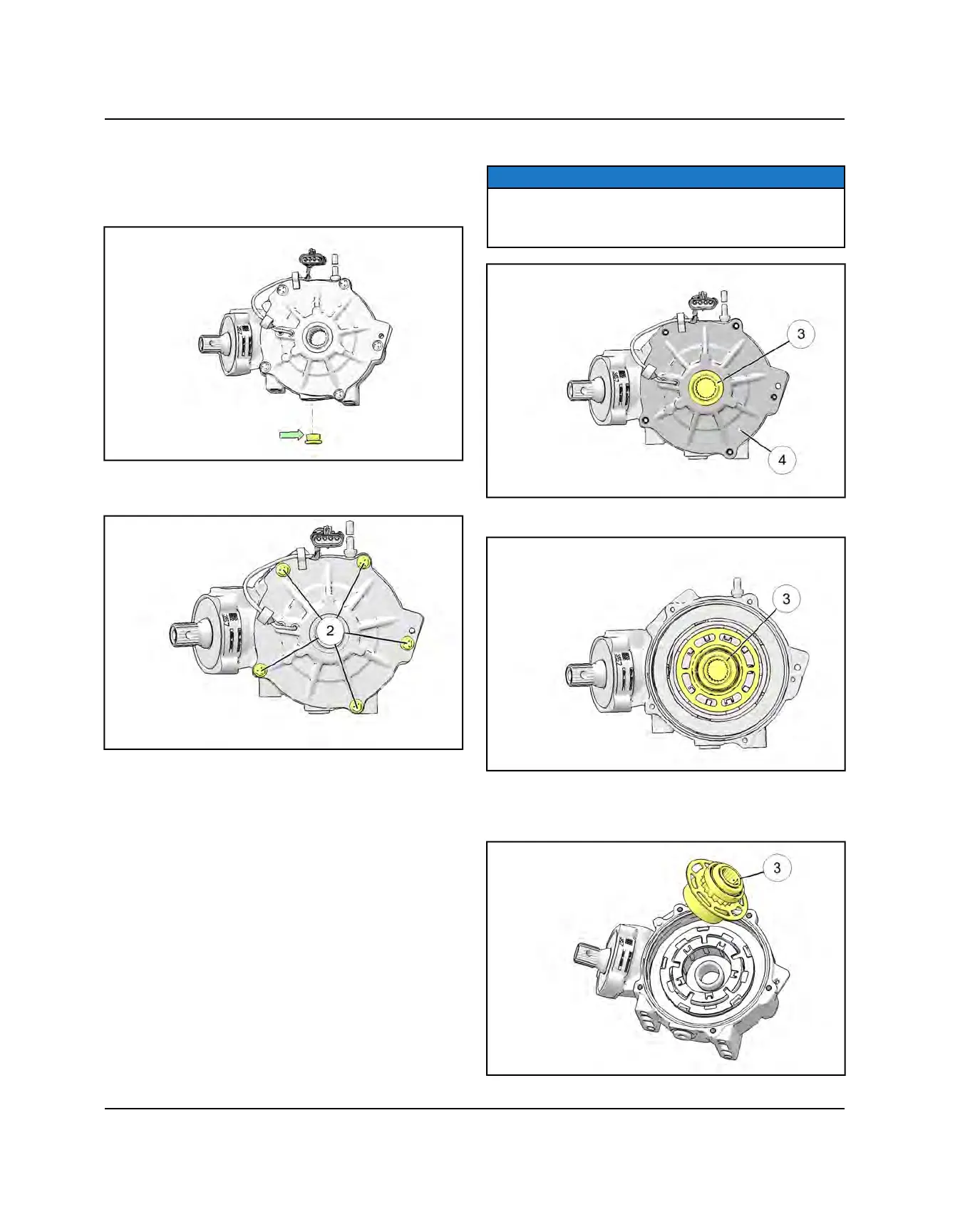

DISASSEMBLY / INSPECTION, FRONT
GEARCASE (ADC)
1. Drain and properly dispose of used oil. Remove any
metal particles from the drain plug magnet
q
.
2. Remove bolts
w
retaining the outer cover plate
assembly.
3. Remove the outer cover plate assembly.
NOTICE
Press on the output hub assembly
e
while lifting up on
the outer cover plate(4) to prevent removing more than
the cover plate.
4. Remove the output hub assembly
e
.
5. Inspect the bearing and contact surfaces of the output
hub for signs of wear or damage. Replace component
if found to be worn or damaged.
