8.38
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

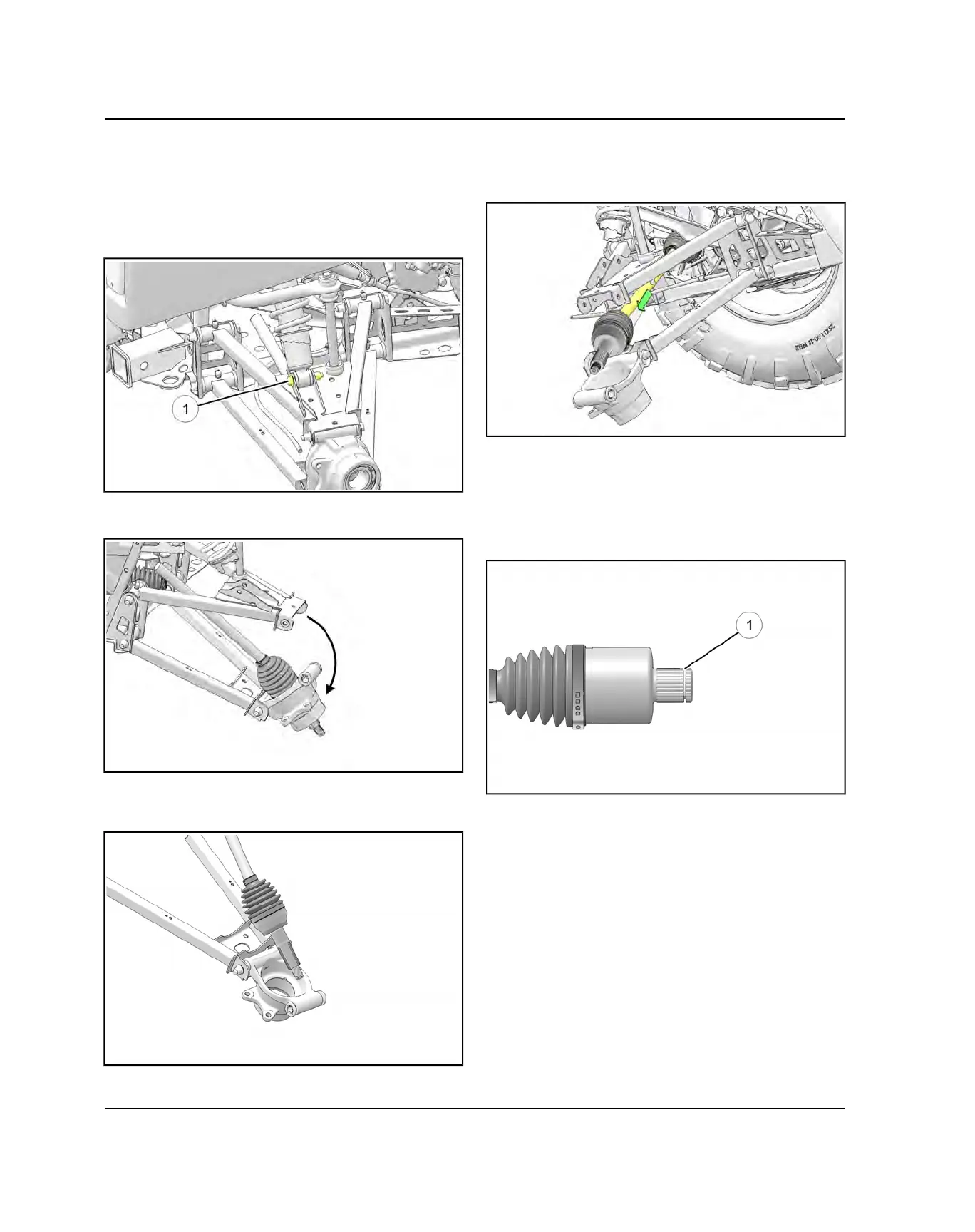

REAR DRIVE SHAFT
REAR DRIVE SHAFT REMOVAL
1. Perform the “REAR BEARING CARRIER - Removal”
procedure, steps 1-5.
2. Remove the lower shock fastener
q
to free the
upper A-arm.
3. Remove the upper bearing carrier fastener and
separate the bearing carrier from the upper A-arm.
4. Carefully slide the drive shaft out by pulling the
bearing carrier outward and tipping it down to
remove the shaft.
5. Remove the rear drive shaft using short, sharp jerks
to free the circlip from the transmission.
6. Refer to the “DRIVE SHAFT SERVICE” section if
repairing the drive shaft.
REAR DRIVE SHAFT INSTALLATION
1. Install a new circlip
q
on the end of the drive shaft
and apply an anti-seize compound to the splines.
2. Align the splines of the drive shaft with the
transmission and reinstall the drive shaft. Use a
rubber mallet to tap on the outboard end of the drive
shaft if necessary.
3. Install the drive shaft into the rear bearing carrier.
4. Perform the “REAR BEARING CARRIER -
Installation” procedure to properly reassemble the
vehicle.
FINAL DRIVE
