6
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
6.23

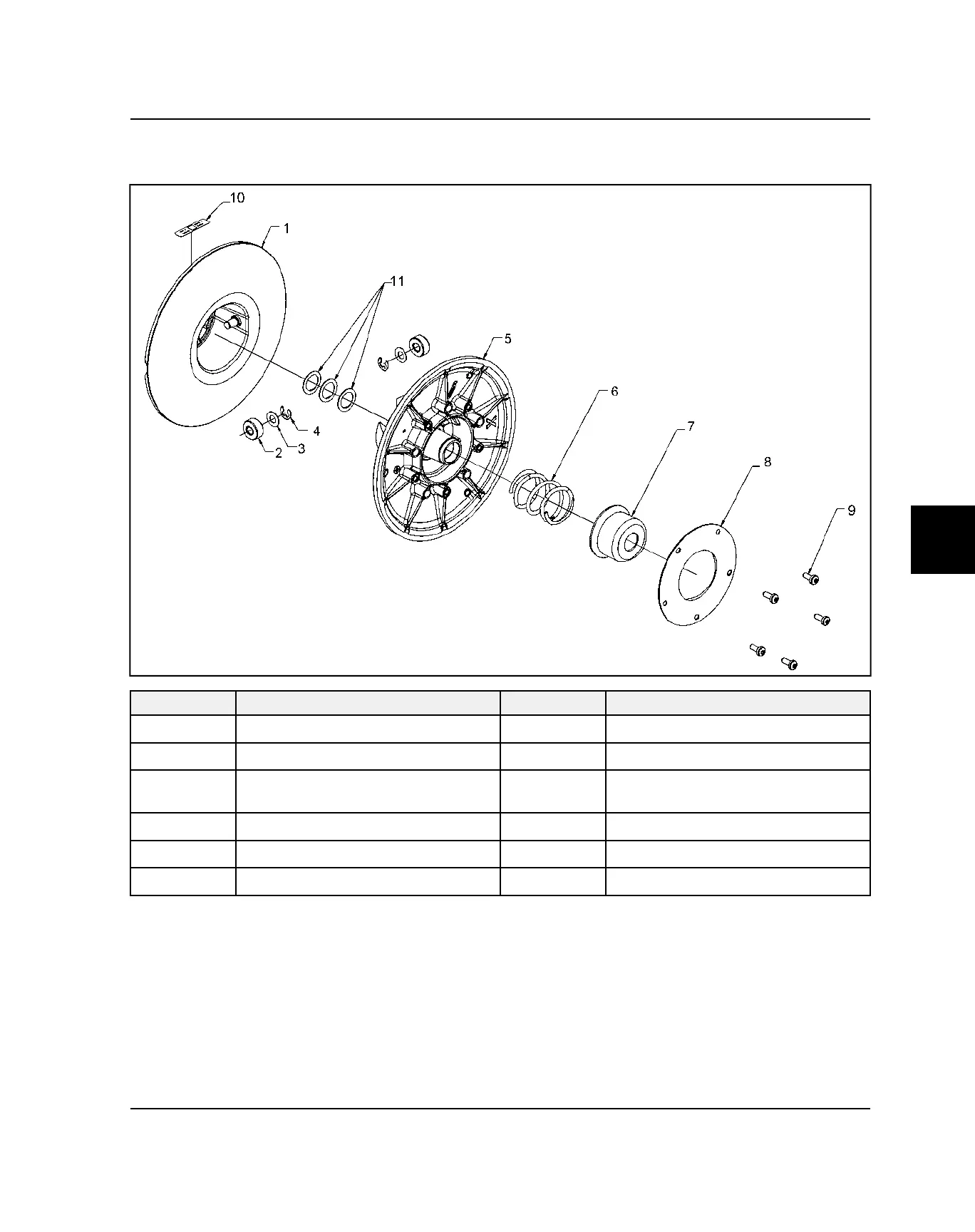

DRIVEN CLUTCH SERVICE
ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Subassembly, Stationary Boss
u
Cup, Spring Boss
w
Roller, Clutch
i
Plate, Retainer
e
Washer, Thrust
o
Screw
9 ft-lbs (12 Nm)
r
Ring, Retaining E-Ring External
a
Label, Clutch Boss
t
Subassembly, Moveable Boss
s
Washer, Thrust
y
Spring, Compression
PVT SYSTEM
