3.26
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

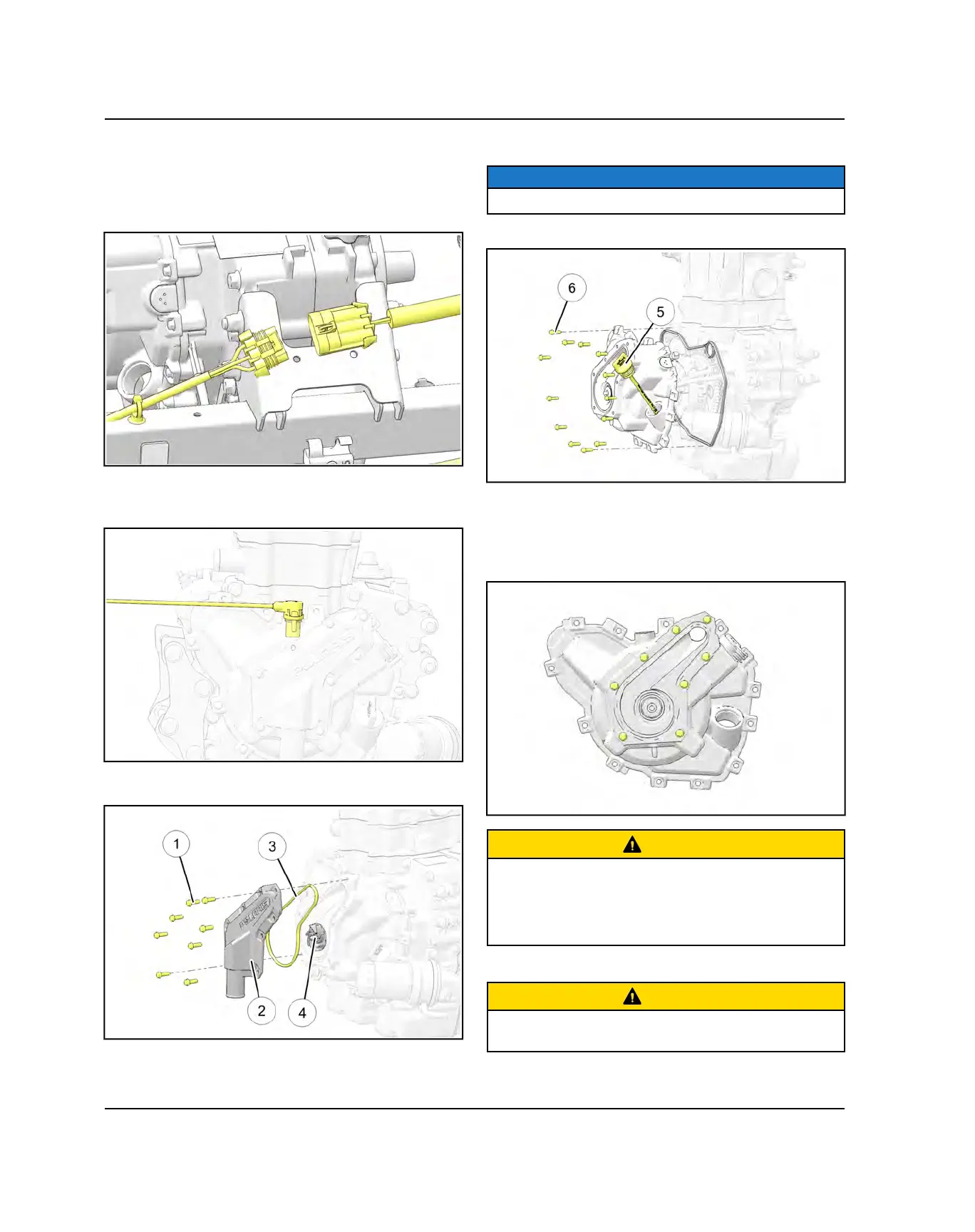

7. Raise and safely support the vehicle. Remove the
right rear wheel.
8. Disconnect the stator wire connector and cut the tie
strap securing the wiring to the front engine mount
bracket.
9. Remove the CPS sensor from the stator cover on the
right-hand side of the engine. Inspect CPS O-ring
and replace if needed.
10. Remove the eight bolts
q
retaining the water pump
cover to the stator cover.
11. Remove the water pump cover
w
and water pump
cover gasket
e
. Discard the water pump gasket.
12. Remove the water pump impeller
r
.
NOTICE
The water pump impeller uses reverse (left) threads.
13. Remove the oil dipstick
t
.
14. Remove the 13 bolts
y
securing the stator cover to
the engine.
15. If needed, install the stator cover removal handle tool
(PA-49317) to the water pump cover bolt holes to aid
in stator cover removal.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing the stator cover.
DO NOT place fingers between cover and crankcase at
any time during the removal process or injury could
result.
16. Remove and discard the stator cover gasket.
CAUTION
Be sure engine coolant does not contaminate the
engine oil during stator cover service.
ENGINE / COOLING SYSTEM
