3.70
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

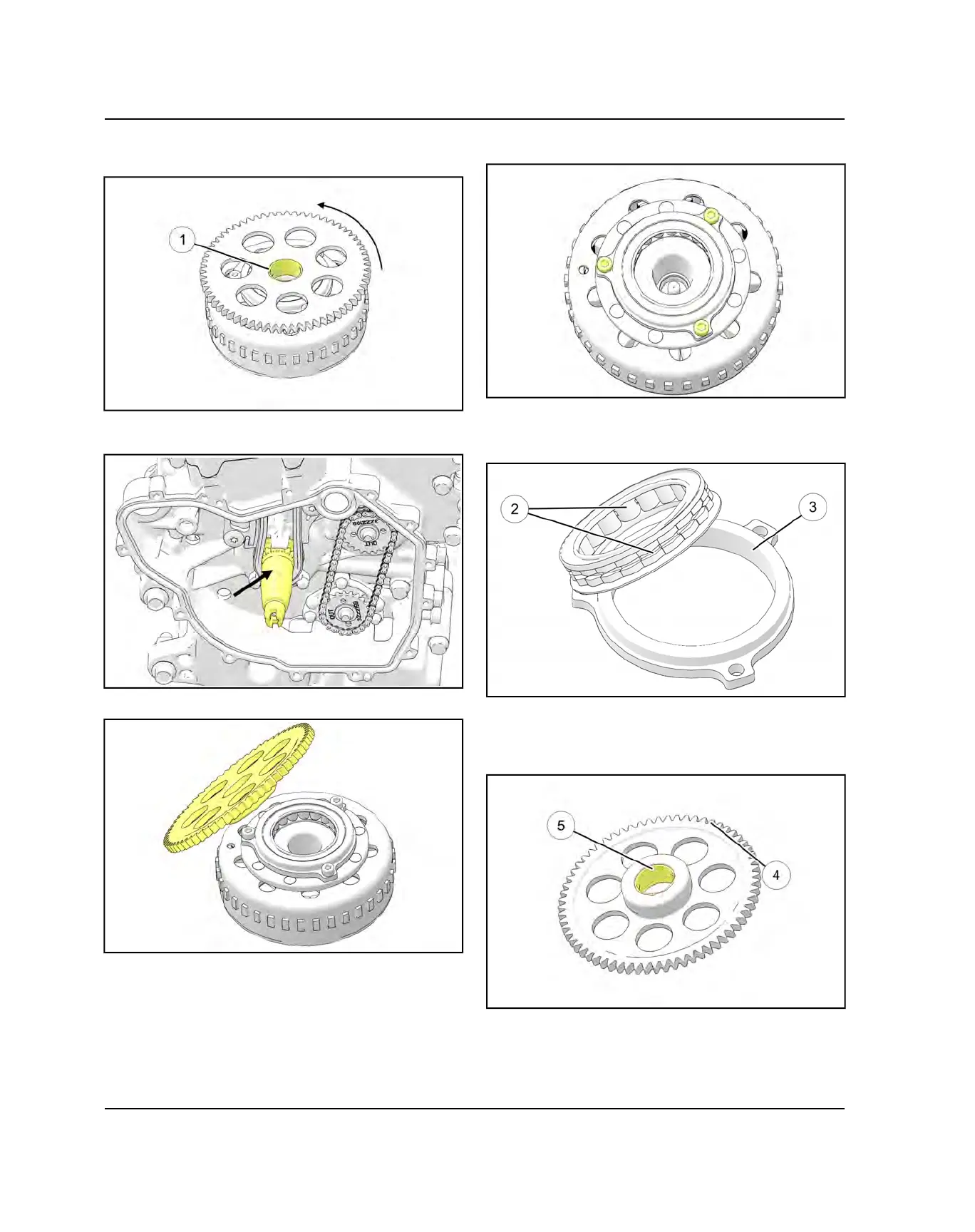

4. Inspect inside of hub
q
for wear, galling, or uneven
surface.
5. Inspect crankshaft bearing surface for abnormal
wear.
6. Remove starter gear from the flywheel assembly.
7. Remove the three, one-way clutch retaining bolts.
8. Remove clutch and inspect both sides of drive rollers
w
and roller contact surface
e
inside hub for wear,
damage, or uneven surface.
9. Inspect drive surface of starter gear
r
and bearing
surface
t
for wear, damage, or uneven surface. If
any starter clutch component is worn or damaged,
replace clutch, clutch hub, and starter gear.
ENGINE / COOLING SYSTEM
