9
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
9.17

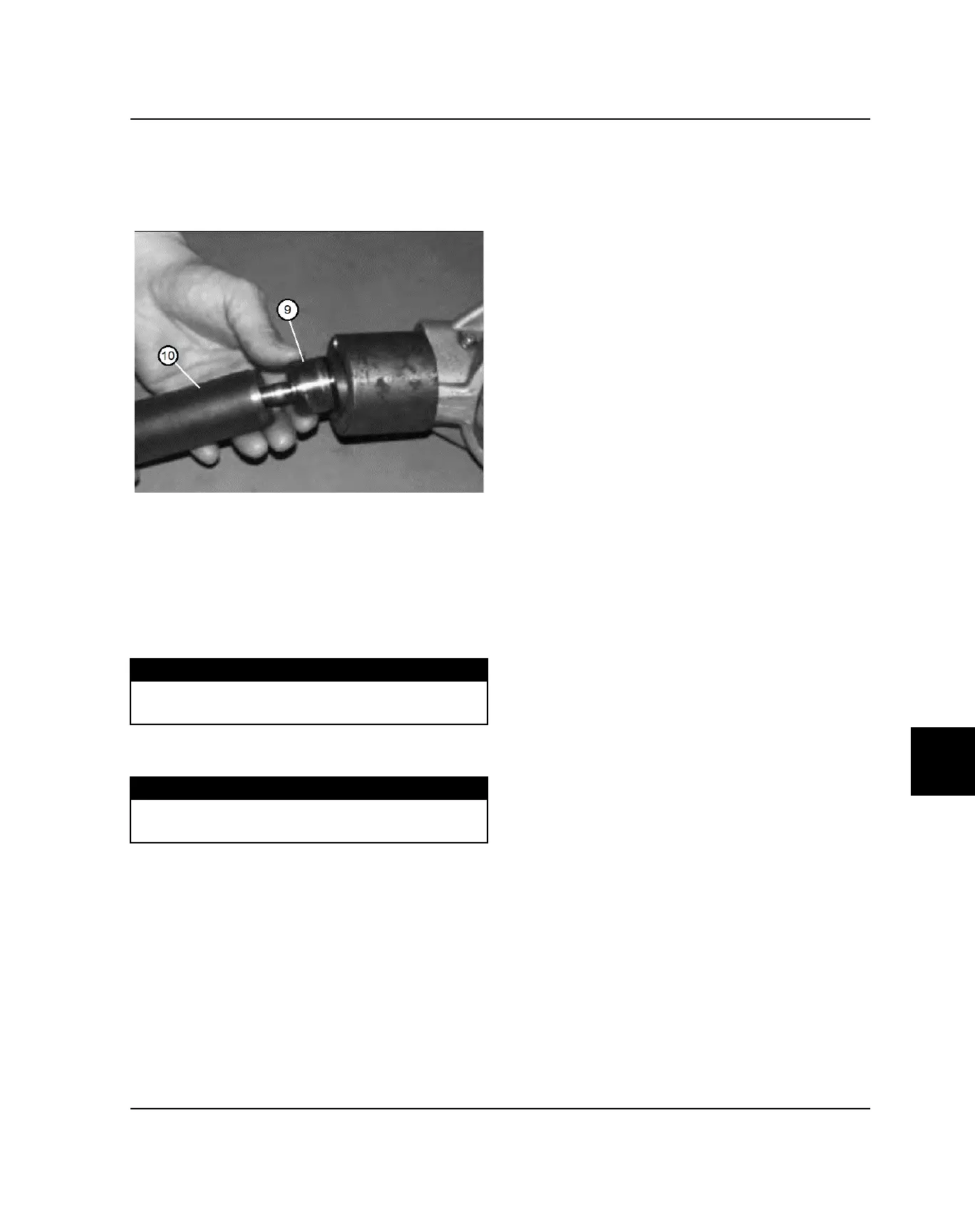

8. To install new ball joint:
• Remove extension cap and attach puller guide using
short bolts provided in the kit.
• Insert new ball joint
o
into driver
a
.
• Slide ball joint / driver assembly into guide.
• Apply heat to ease installation.
• Drive new joint into strut housing until fully seated.
9. Apply Loctite™ 242 (PN 2871949) to threads of
retaining plate screws or install new screws with pre-
applied locking agent. Torque screws to
specification.
TORQUE
Ball Joint Retaining Plate Screws:
8 ft-lbs (11 Nm)
10. Install A-arm on ball joint and torque castle nut to
specification.
TORQUE
Ball Joint Nut:
30 ft-lbs (41 Nm)
11. Install new cotter pin with open ends toward rear of
machine.
STEERING / SUSPENSION
