7.28
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

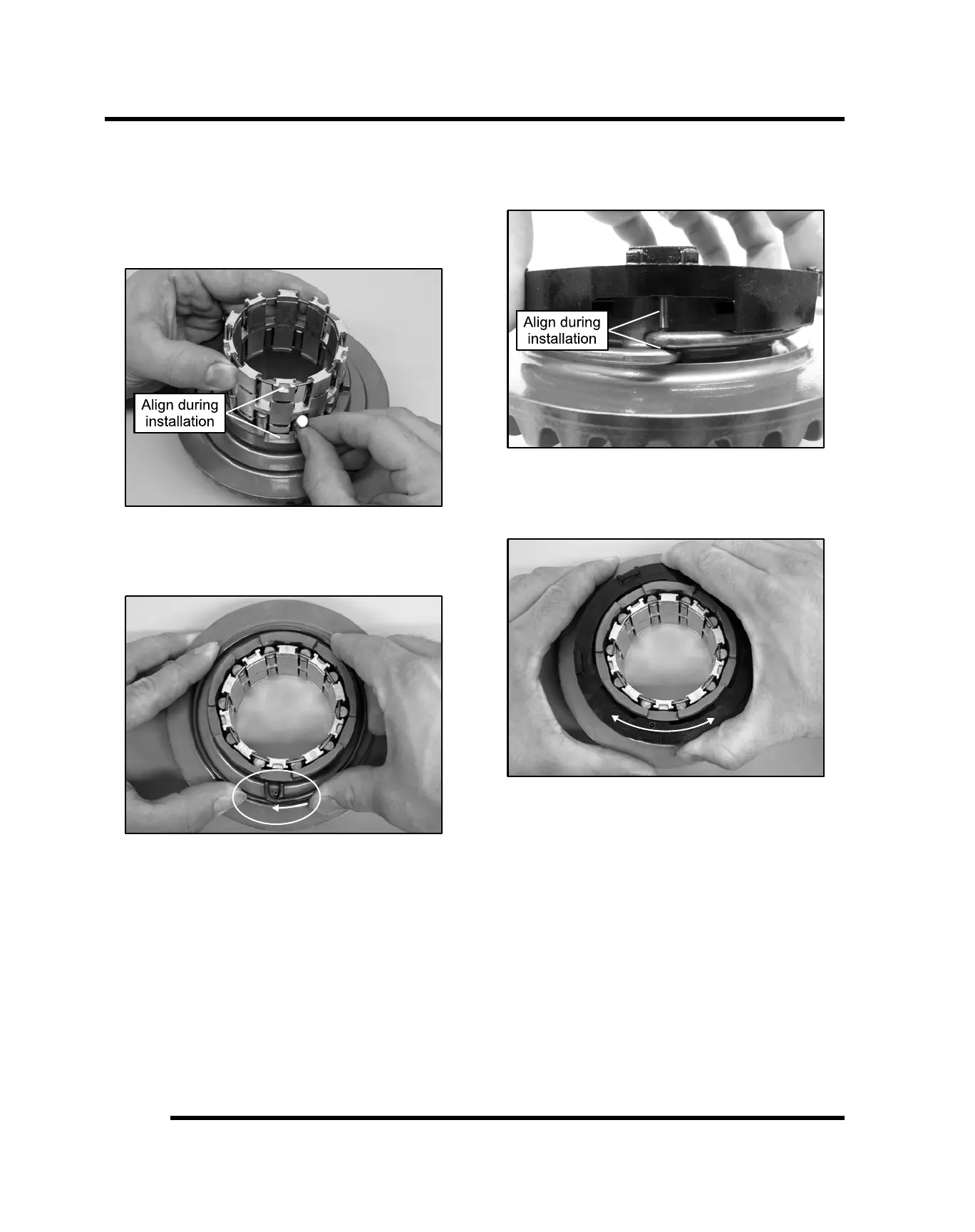

5. Carefully install the rollers into the roll cage
assembly while installing the assembly into the
clutch housing.
NOTE: Install the roll cage so that the ring gear
grooves line up with the roll cage slots (see
below).
6. Install the torsion spring by wrapping each leg of the
spring around the dowel pin on the ring gear.
7. Align the spring retainer dowel pin with the ring gear
dowel pin and install the retainer on top of the torsion
spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
FINAL DRIVE
