7
7.29
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

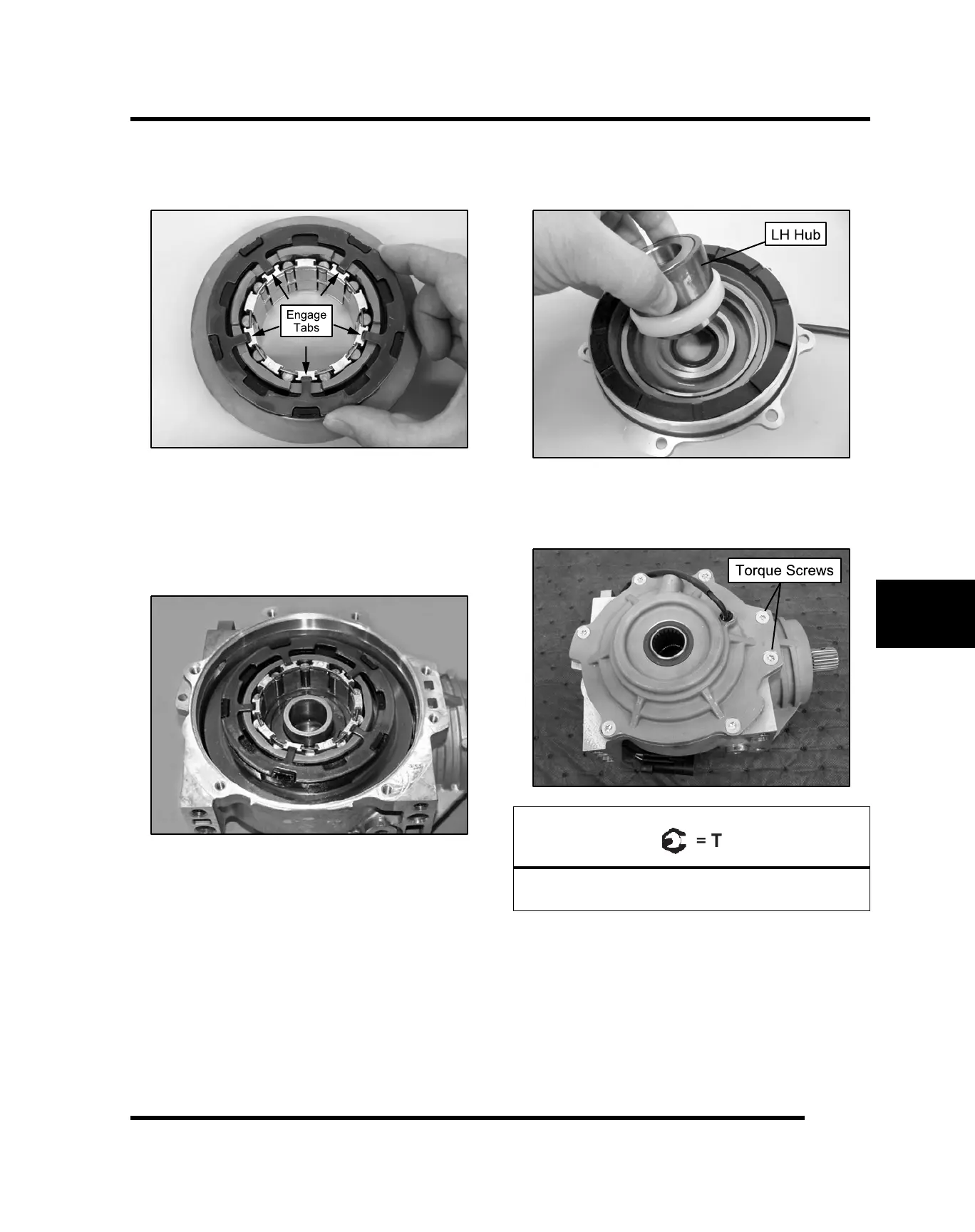

9. Be sure the armature plate tabs are fully engaged
into the roll cage assembly and are resting on the
cut-grooves of the ring gear.
NOTE: Verify armature plate tabs are in the slots
on the roll cage and are resting in the ring gear
grooves.
10. Carefully install the ring gear and roll cage assembly
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTE: Be sure the square O-ring is placed flat
on the cover surface. If the O-ring is twisted fluid
leakage may occur.
12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the (7) cover plate screws and torque
to specification.
Cover Plate Screws:
7-11 ft-lbs (10-15 Nm)
FINAL DRIVE
