Pyronix Matrix 832 Installation Guide

Matrix 832 / 832+ / 424
Page 124 RINS428-5

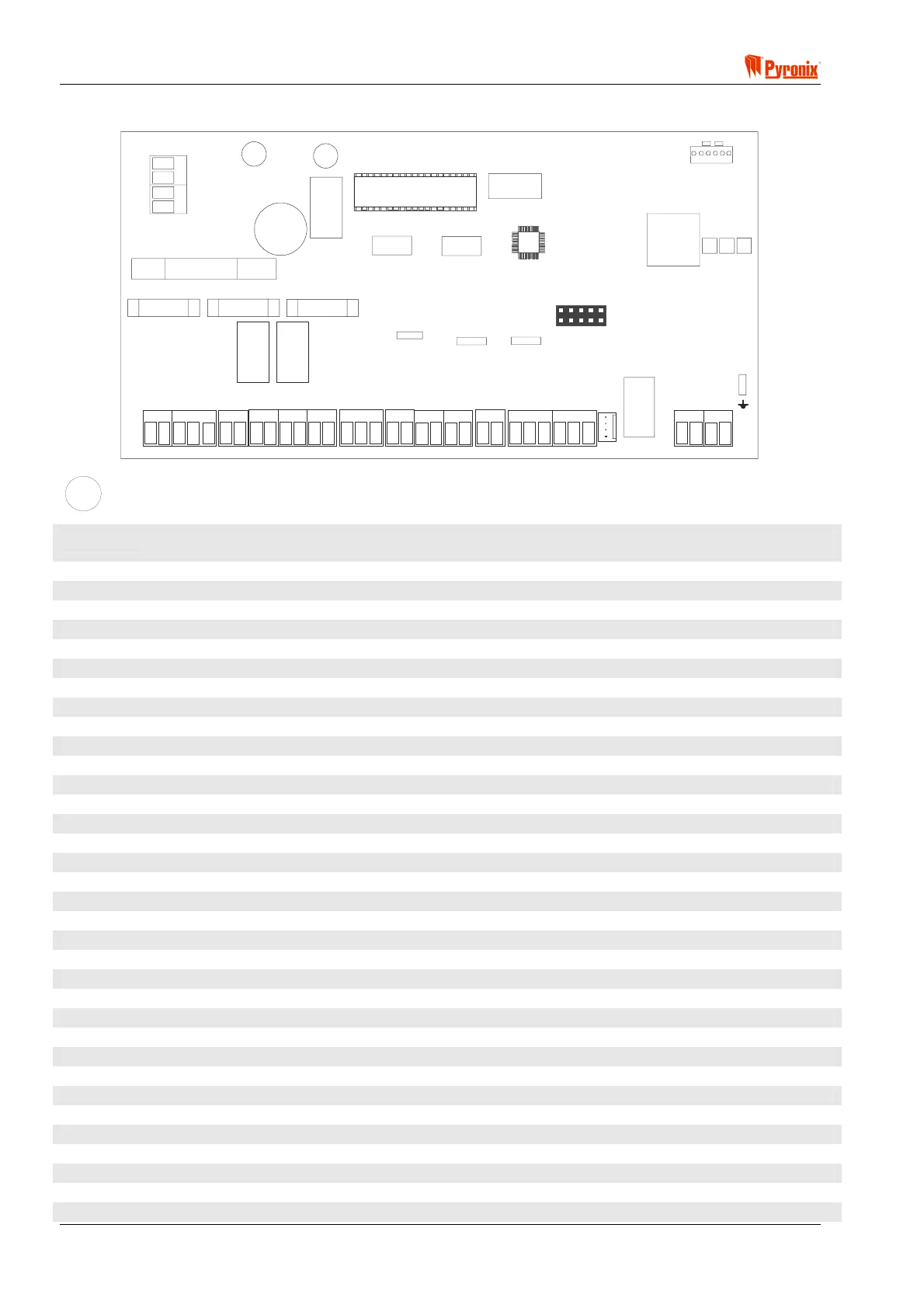

12.3 Matrix 832+ PCB
Bell Fuse 1Amp
Aux fuse 1Amp
Keypad fuse 1 Amp
R1 R2
MX-VOICE
Relays
+BELL- BT GT LNF NC1 C1 NO1/ PGM1 NC2 C2 NO2 PGM3 PGM4 K+ KD K- Z1 COM Z2 Z3 COM Z4 +AUX- Z5 COM COM Z6 Z7 Z8 RS232 RING TIP R-1 T-1
17V ~
+BAT-
MEANING
17V~
The Matrix panel requires a 17VRMS transformer rated at 44VA for a metal casing, or 21VA for a
plastic casing, or a 17V DC 1.25A supply (protected by a 2A fuse)
+BAT-
Battery connections in order for the Matrix to operate without mains supply
+BELL-
Positive and negative supply to the bell (protected by a 1A fuse)
BT
Bell Tamper – Negative tamper return from bell box
GT
Global Tamper negative tamper return
LNF
Telephone line fail input
NC1
Relay programmable output
C1
Common
NO1/PGM1
Relay programmable output
NC2
Relay programmable output
C2
Common
NO2
Relay Programmable Output
PGM3
Programmable Output 3
PGM4
Programmable Output 4
K+
+12V Keypad connection
KD
Keypad Data
K-
0V keypad connection
Z1
Programmable Zone
COM
Common connection for zones (0V)
Z2
Programmable Zone
Z3
Programmable Zone
COM
Common connection for zones (0V)
Z4
Programmable Zone
+AUX-
Auxiliary supply for detectors (protected by a 1A fuse)
Z5
Programmable Zone
COM
Common connection for zones (0V)
Z6
Programmable Zone
Z7
Programmable Zone
COM
Common connection for zones (0V)
Z8
Programmable Zone
RING
Connection to Analogue PSTN telephone line
TIP
Telephone direct connection
R-1
Series connection to telephone line
T-1
To be connected to remaining telephone line equipment within the installation
RS232
Connection to computer serial port via a Pyronix RS232 cable (RCON095)
