4 – Managing Switches
Displaying Switch Information
59097-02 B 4-13
A
4.2.5
Configured Zonesets Data Windows
The Configured Zonesets data window displays all zone sets, zones, aliases, and
zone membership in the zoning database, shown in Figure 4-6. To open the
Configured Zonesets data window, click the Configured Zonesets tab below the
data window in the faceplate display. To view the active zone set in the Active
Zonesets data window, open the topology display and click the Active Zonesets
data window tab.
The Configured Zonesets data window uses display conventions for expanding
and contracting entries that are similar to the fabric tree. An entry handle located
to the left of an entry in the tree indicates that the entry can be expanded. Click
this handle or double-click the following entries to expand or collapse them:
A zone set entry expands to show its member zones.
A zone entry expands to show its members by device port World Wide
Name, or device port Fibre Channel address.
The alias entry expands to show its entries.

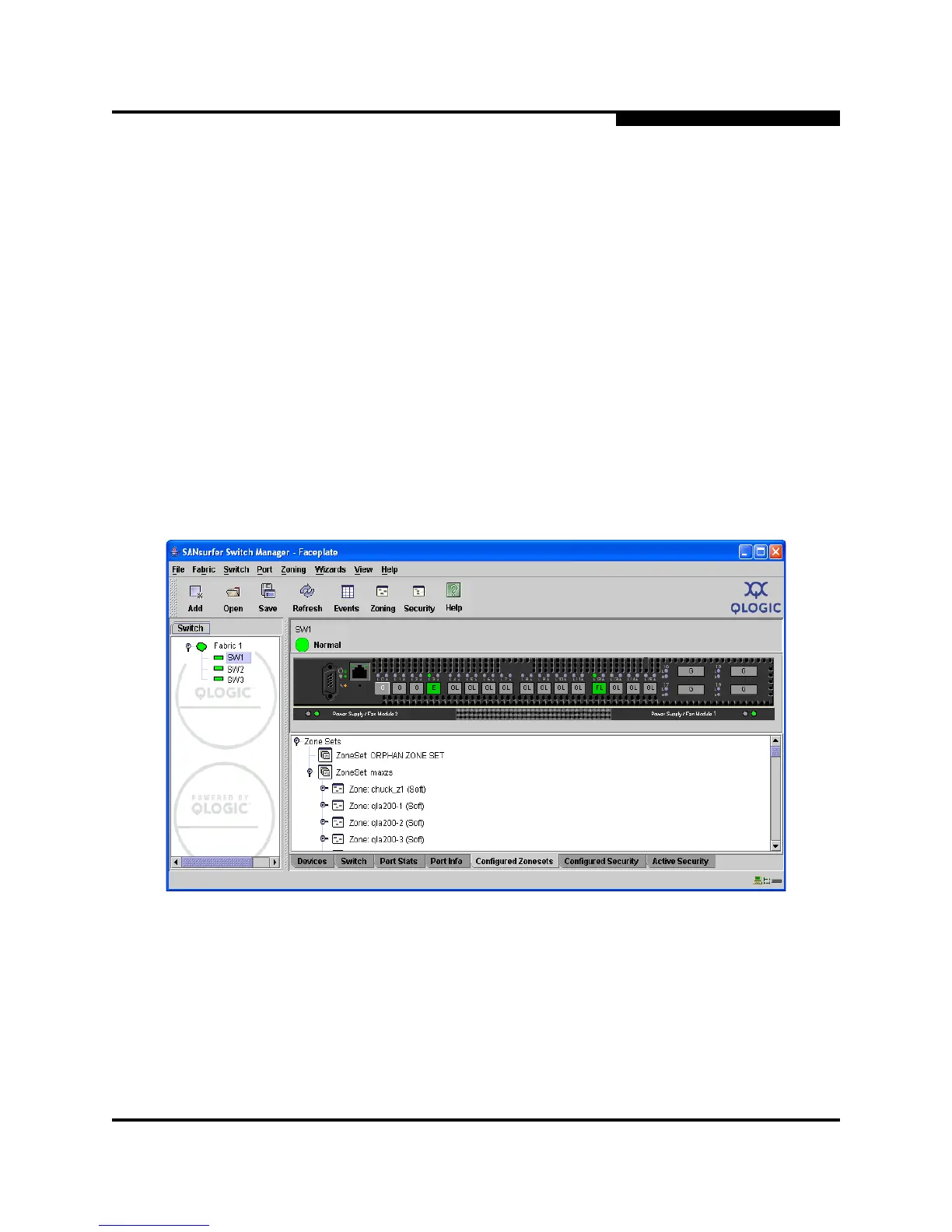

Figure 4-6. Configured Zonesets Data Window
