5 – Managing Ports
Configuring Ports
5-10 59097-02 B
S
5.2
Configuring Ports
The port settings or characteristics for 1/2/4-Gbps and 10-Gbps ports are
configured using the Port Properties dialogs shown in Figure 5-2. To open the
corresponding type of Port Properties dialog, select one or more ports, open the
Port menu and select Port Properties or Port Properties 10G.

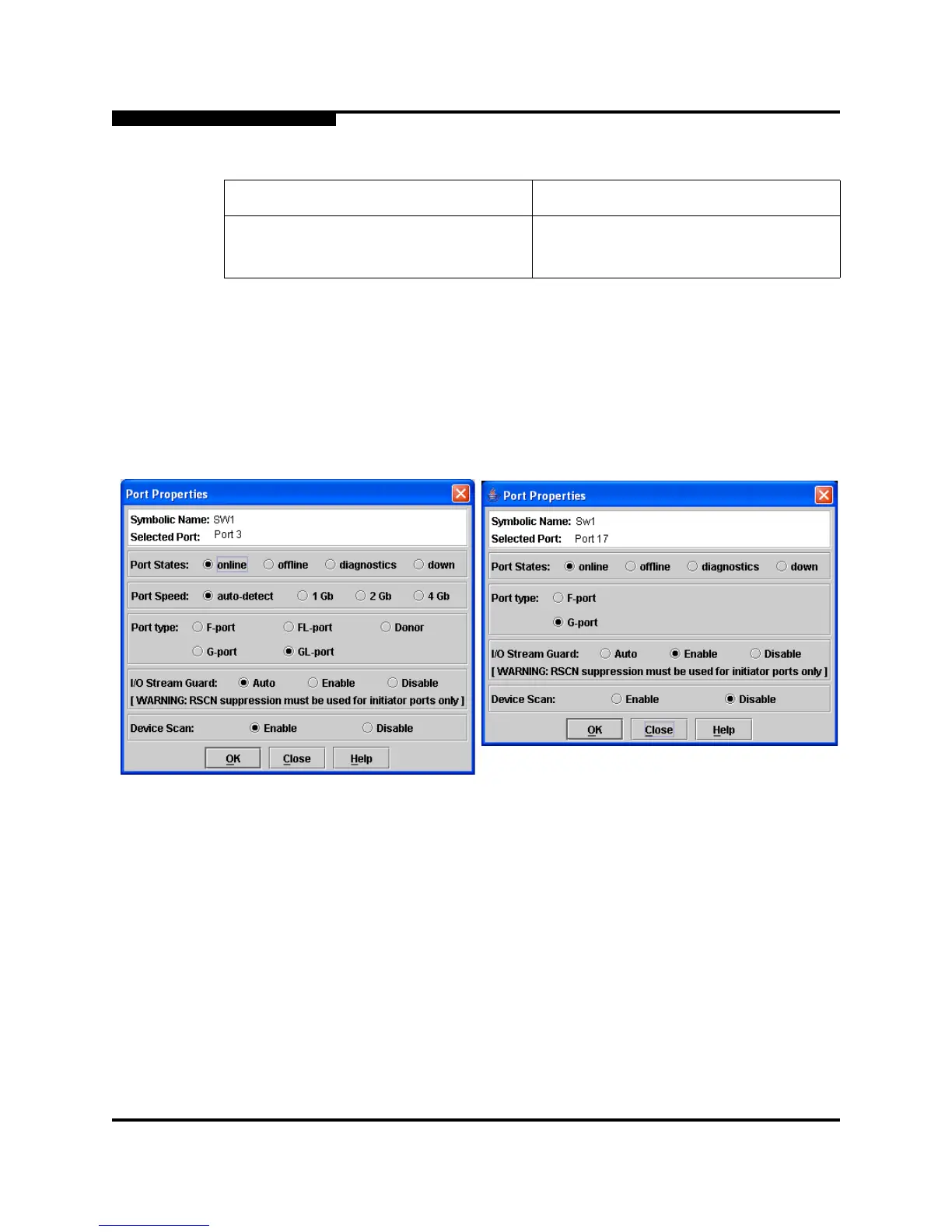

Figure 5-2. Port Properties Dialog
The 1/2/4-Gbps and 10-Gbps Port Properties dialogs display the switch name and
the selected ports. Use the Port Properties dialogs to change the following
parameters:
Port state
Port speed (1/2/4-Gbps ports only)
Port type
I/O Stream Guard (RSCN Suppression)
Device scan
Media Part Number The part number assigned to the SFP
Media Revision Transceiver hardware version
Table 5-6. Port Information Data Window Entries (Continued)
Entry Description
