4 – Managing Switches
Upgrading the Switch Using License Keys
59097-02 B 4-43
A
To upgrade the switch, do the following:
1. Isolate the switch from the fabric.
2. Add a fabric with the IP address of the switch you want to upgrade.
3. Open the faceplate display for the switch you want to upgrade.
4. Open the Switch Menu and select Features to open the Feature Licenses
dialog shown in Figure 4-17.

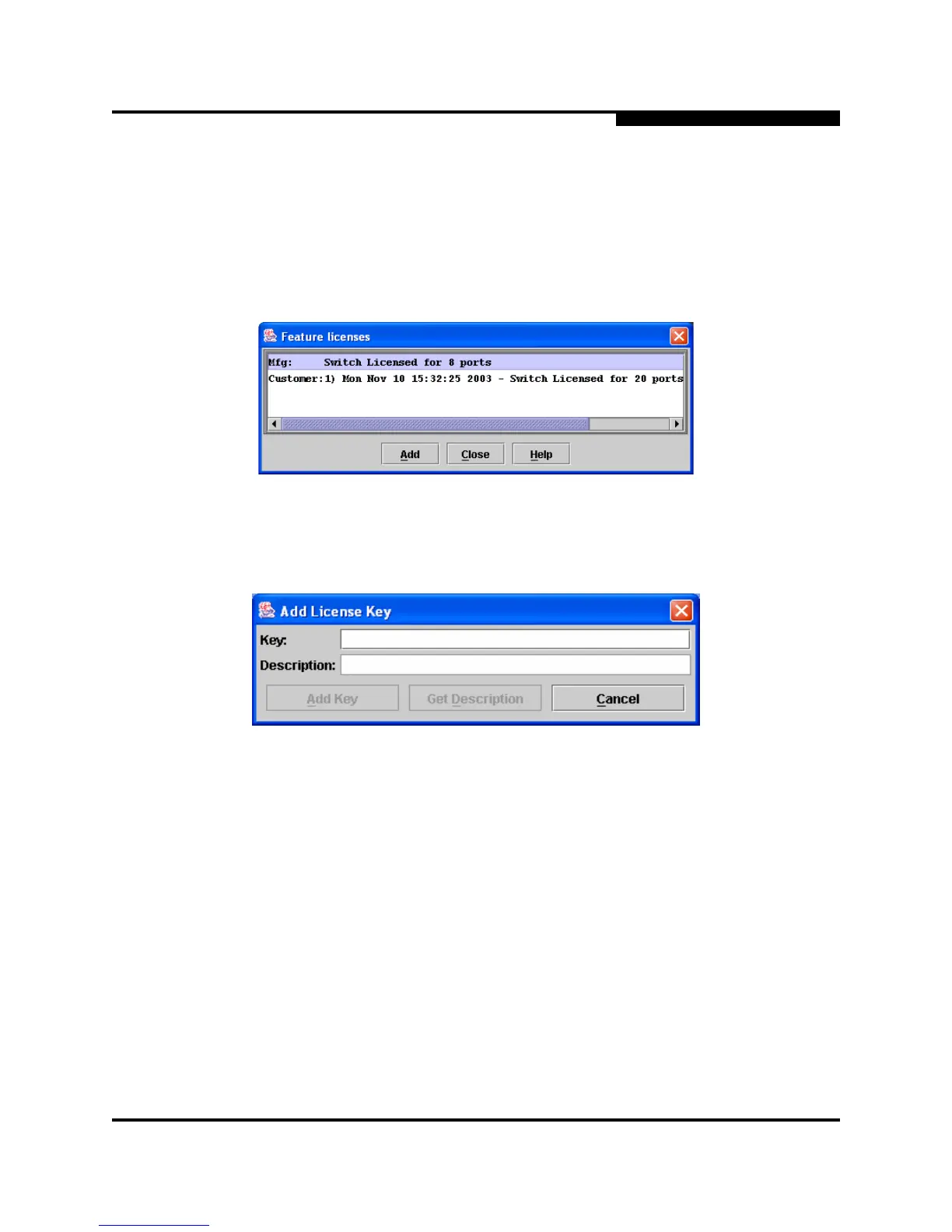

Figure 4-17. Features License Key Dialog
5. In the Feature Licenses dialog, click the Add button to open the Add License
Key dialog shown in Figure 4-18.
Figure 4-18. Add License Key Dialog
6. In the Add License Key dialog, enter the port license key in the Key field.
7. Click the Description button to display the upgrade description.
8. Click the Add Key button to upgrade the switch. Allow a minute or two for
the upgrade to complete. The switch will need to be reset after the upgrade.
