2 – Using SANsurfer Switch Manager
Using the Topology Display
2-24 59097-02 B
S
2.12
Using the Topology Display
The topology display shown in Figure 2-10 receives information from the selected
fabric and displays its topology. Switches and inter-switch links (ISLs) appear in
the graphic window and use color to indicate status. Consider the following
topology display features:
Switch and Link Status
Working with Switches and Links
Topology Data Windows

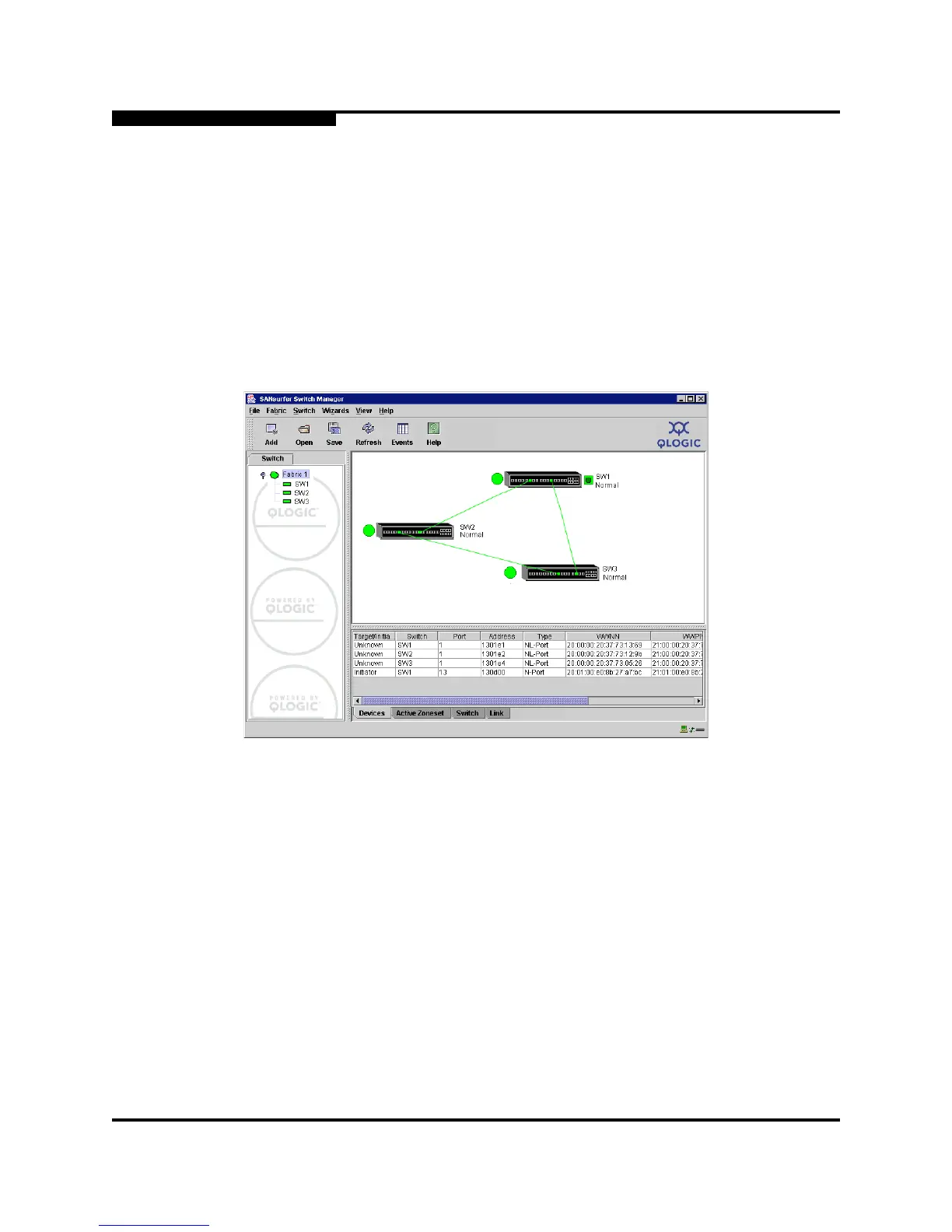

Figure 2-10. Topology Display
2.12.1
Switch and Link Status
Switch icon shape and color provide information about the switch and its
operational state. Lines represent links between switches. The topology display
uses green to indicate normal operation, yellow to indicate operational with errors,
red to indicate a potential failure or non-operational state, and blue to indicate
unknown, unreachable, or unmanageable. Refer to ”Fabric Status” on page 3-29
for more information about topology display icons.
