4 – Managing Switches
Configuring a Switch
4-24 59097-02 B
S
4.7.3
Advanced Switch Properties
The Advanced Switch Properties dialog enables you to set the timeout values,
Interop Mode, and Legacy Address Format settings. The Advanced Switch
Properties dialog is available for only the entry switch, because an in-band switch
can not be taken offline. The switch will automatically be taken offline temporarily
and will be restored to its original state after the changes are completed. To open
the Advanced Switch Properties dialog, open the Switch menu and select
Advanced Switch Properties. After making changes, click the OK button to put
the new values into effect.
Use the Advanced Switch Properties dialog to change the following switch
configuration parameters:
Timeout values
Interop mode for zoning
Legacy port address format

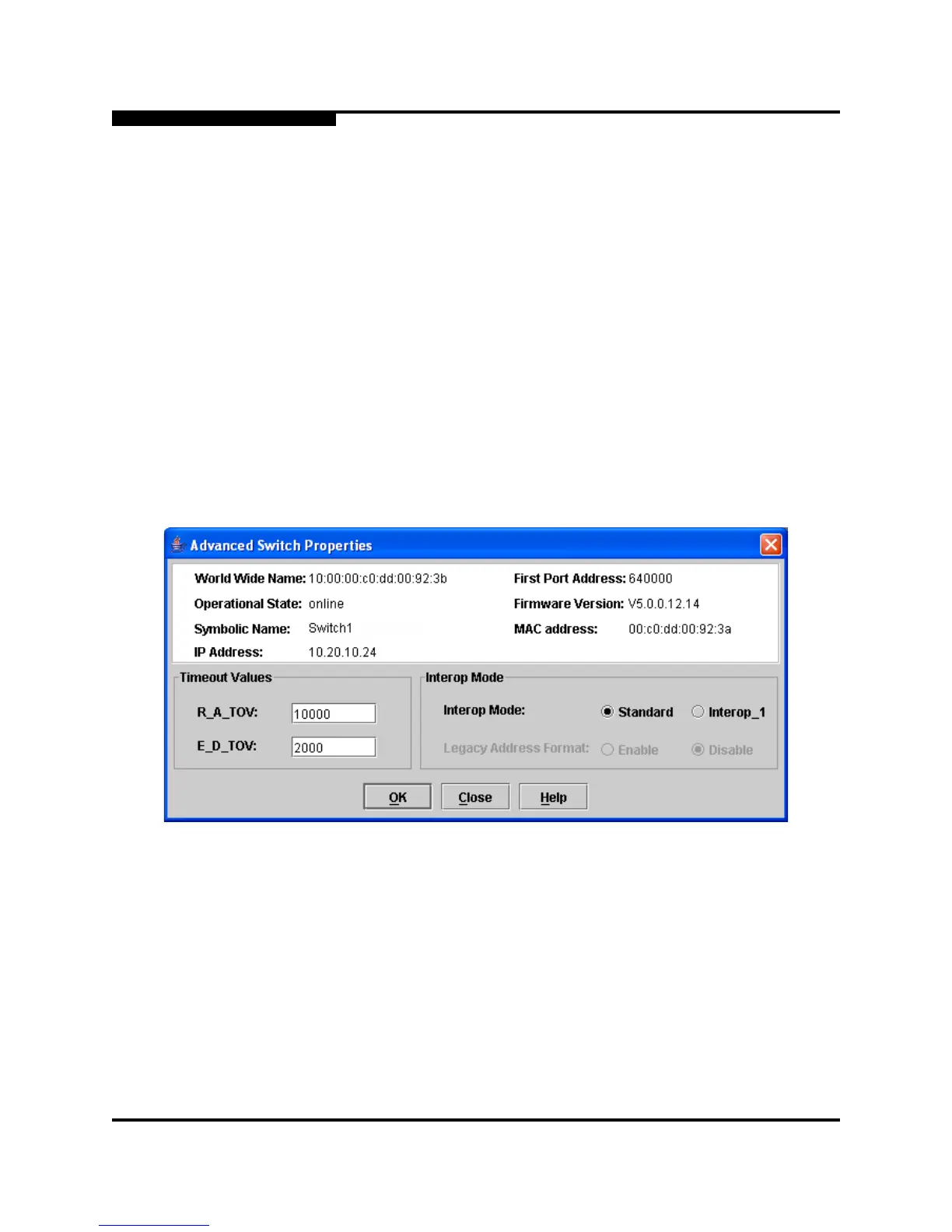

Figure 4-10. Advanced Switch Properties Dialog
