4 – Managing Switches
Configuring a Switch
59097-02 B 4-29
A
4.7.6
Network Properties
Use the Network Properties dialog shown in Figure 4-12 to change IP
configuration parameters and enable remote logging. After making changes, click
the OK button to put the new values into effect. To open the Network Properties
dialog, select a switch in the topology display or open the faceplate display, open
the Switch menu and select Network Properties.

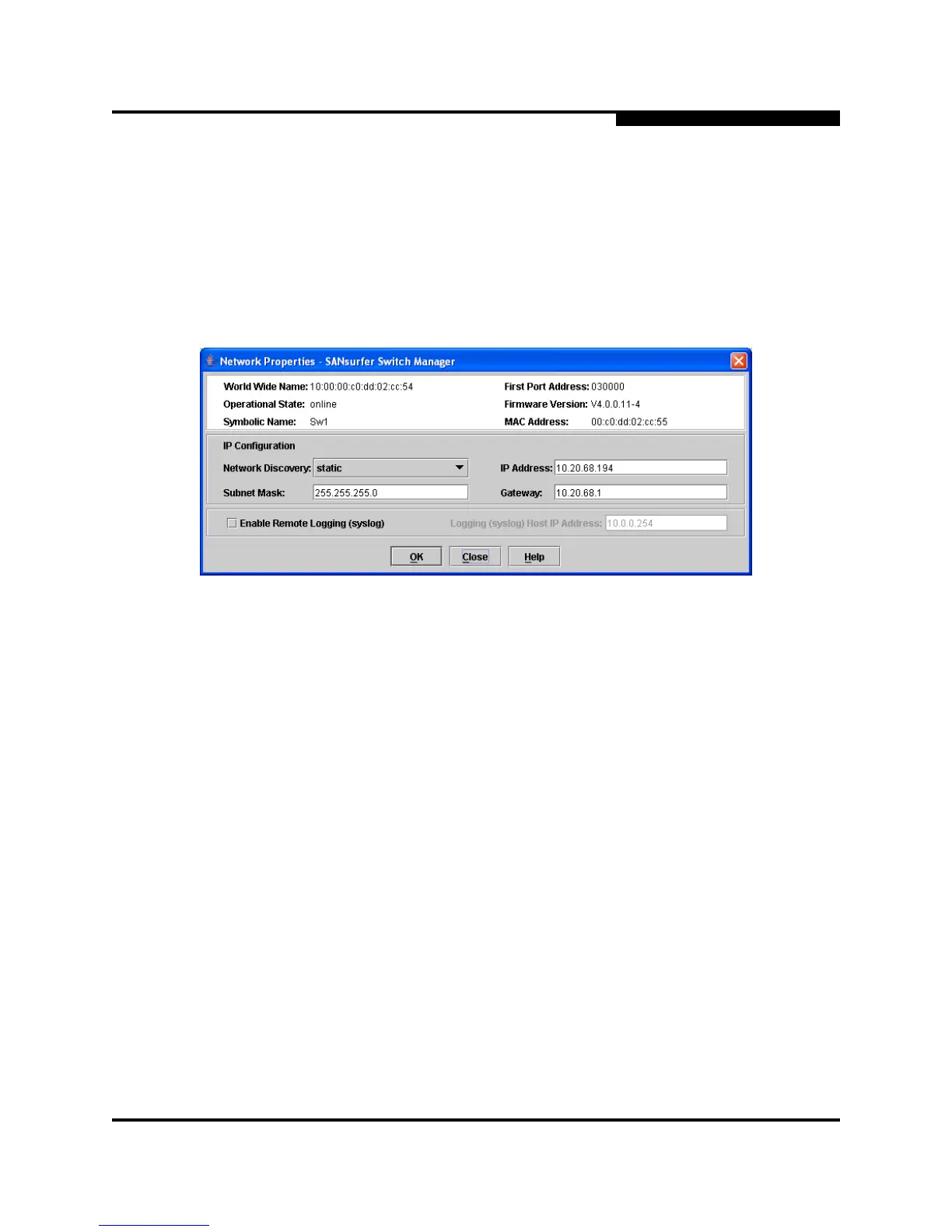

Figure 4-12. Network Properties Dialog
