Rain Bird LXME2 User Manual

Current Section: Diagnostics 41 Navigation:

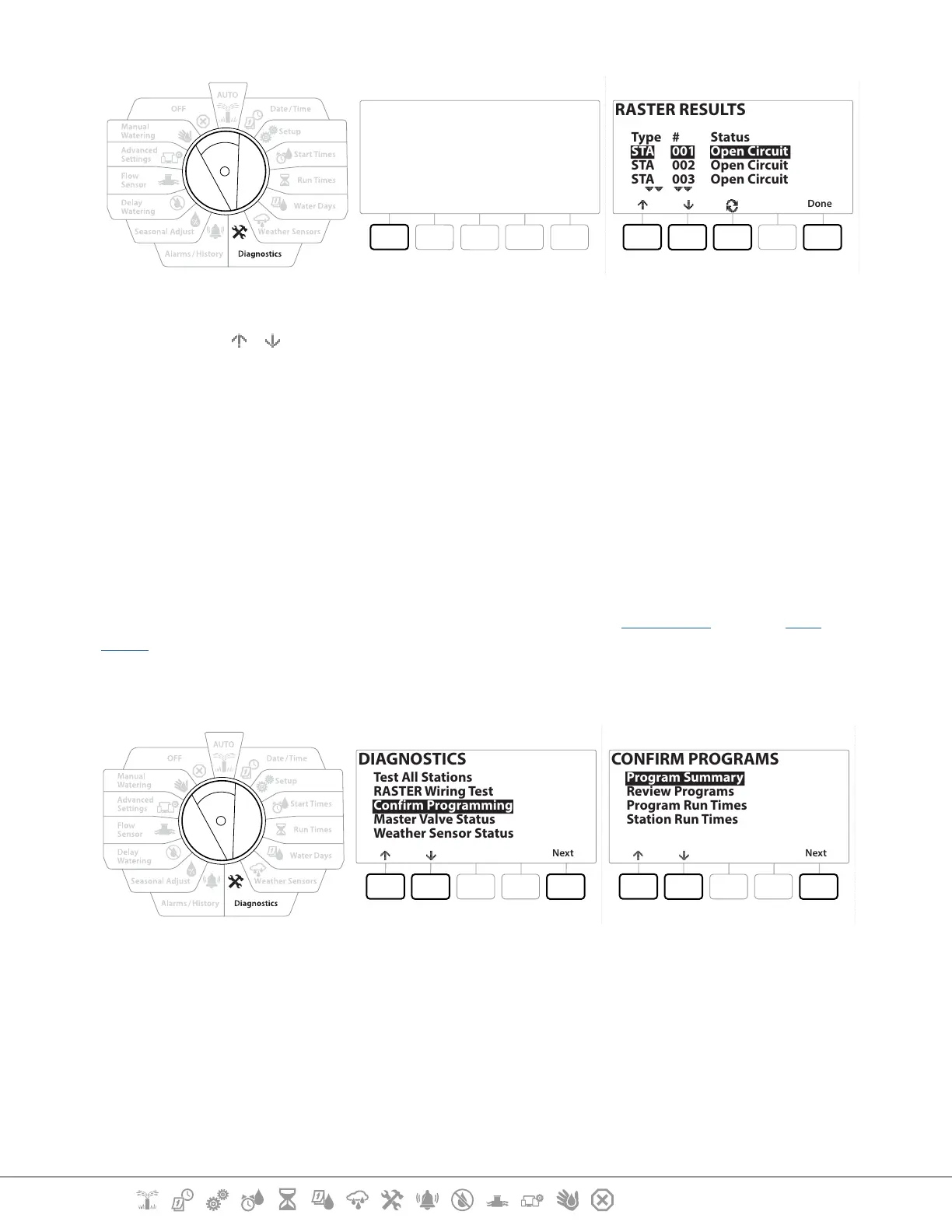

RASTER WIRING TEST
Cancel
Testing in Progress
Station #008
RASTER RESULTS
Done
Type
STA
STA
STA
#
001
002
003
Status
Open Circuit
Open Circuit
Open Circuit
1 Turn the controller dial to Diagnostics
2 Use the
& arrows to navigate to “RASTER Wiring Test”, press Next
3 The Raster Wiring Test screen will display there Modules Detected (this should be the
number of wiring modules installed). And the total number of Stations.
4 Press the “Run” button to begin the wiring test.
•
The Raster Wiring Test will take up to a few minutes. Each installed station will be displayed on the screen in
sequence as the controller tests them.
9.4.3 Conrm Programming
The LXME2 controller can make calculations and provide feedback on Start Times and total Run
Times for programs and stations.
9.4.4 Program Summary
DIAGNOSTICS
Next
Test All Stations
RASTER Wiring Test
Confirm Programming
Master Valve Status
Weather Sensor Status
CONFIRM PROGRAMS
Next
Program Summary
Review Programs
Program Run Times
Station Run Times
