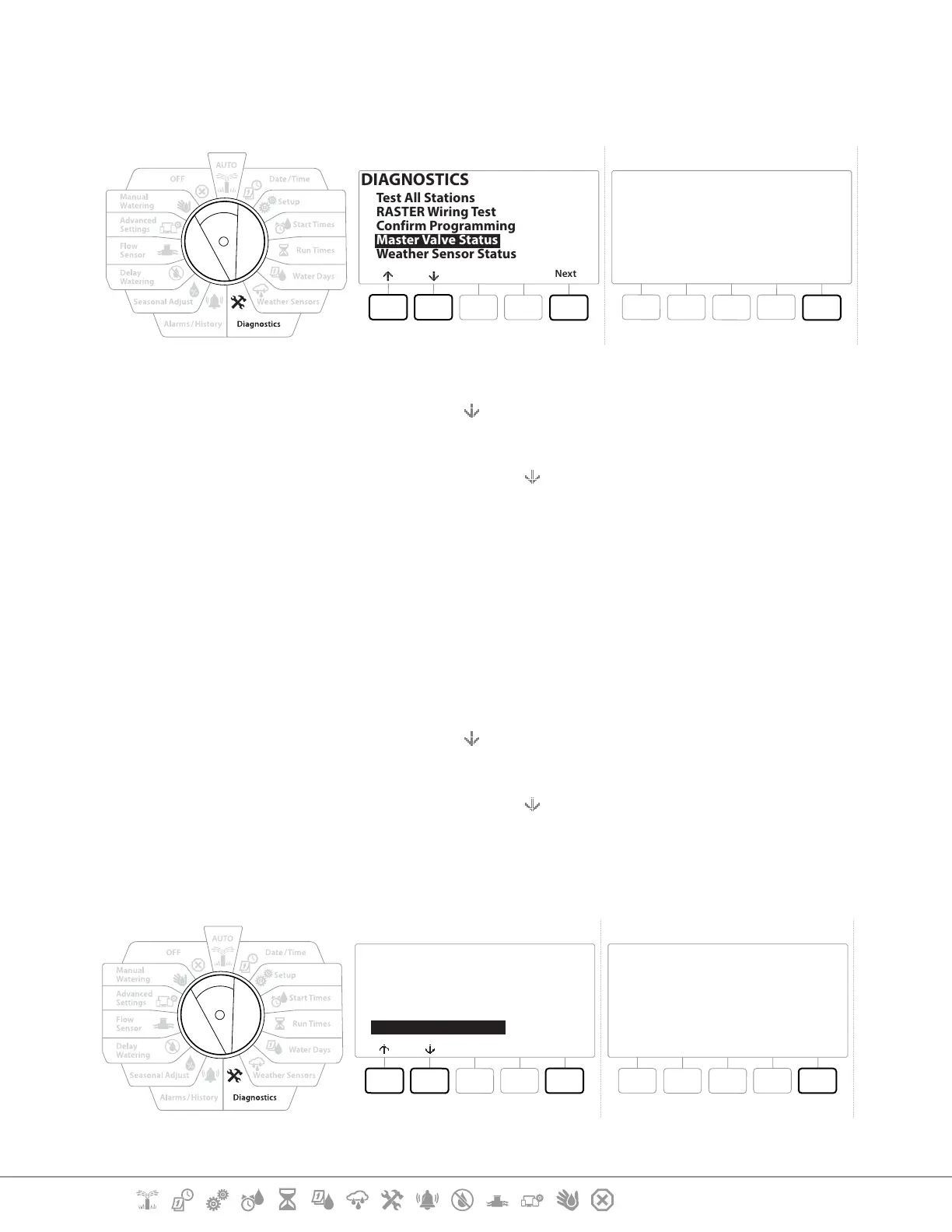

9.4.8 Master Valve Status
Review status of Master Valves.
DIAGNOSTICS
Next
Test All Stations
RASTER Wiring Test
Confirm Programming
Master Valve Status
Weather Sensor Status
Master Valves
Done
MV
1
2
Type
NCMV
PUMP
Status
Open
Open
MVWW
N
N
1 Turn the controller dial to Diagnostics
2 At the DIAGNOSTICS screen, press the key to select “Confirm Programming”, then press
Next .
3 At the CONFIRM PROGRAMS screen, press the
key to select “Review Master Valves”, then
press Next .
4 The Master Valves screen appears, showing installed master valves, their type (Normally
Closed or Normally Open), their current status (open or closed) and if they are included
in the MV Water Window (MVWW) (Yes or No).
9.4.9 Weather Sensor Status
1 Turn the controller dial to Diagnostics
2 At the DIAGNOSTICS screen, press the key to select “Confirm Programming”, then press
Next .
3 At the CONFIRM PROGRAMS screen, press the key to select “Weather Sensor Status”, then
press Next .
4 The Weather Sensor Status screen displays the current status of the local weather sensor
as either On or O.
DIAGNOSTICS
Next
Test All Stations
RASTER Wiring Test
Confirm Programming
Master Valve Status
Weather Sensor Status
Done
Weather Sensors
Sensor
Local
Status
On
