Unlockingthetouchscreen-touchonly

displays

Tounlockthetouchscreenofatouchonlydisplay

whenpairedwitharemotekeypadfollowthesteps

below.

FromtheHomescreen:

1.SelecttheSet-upicon.

2.SelectTouch-LocksothatOffishighlighted.

Thetouchscreenisnowunlocked.

6.12Multi-Touchgestures

RaymarineaSeriesandgSSeriesmultifunction

displayssupportmulti-touch.

Multi-touchmeansthatthedisplayiscapableof

recognizingmultiplesimultaneoustouchinputs.

Thismeansthatyoucanuse2ormorengerson

thescreenatthesametimetoperformmulti-touch

gestures.

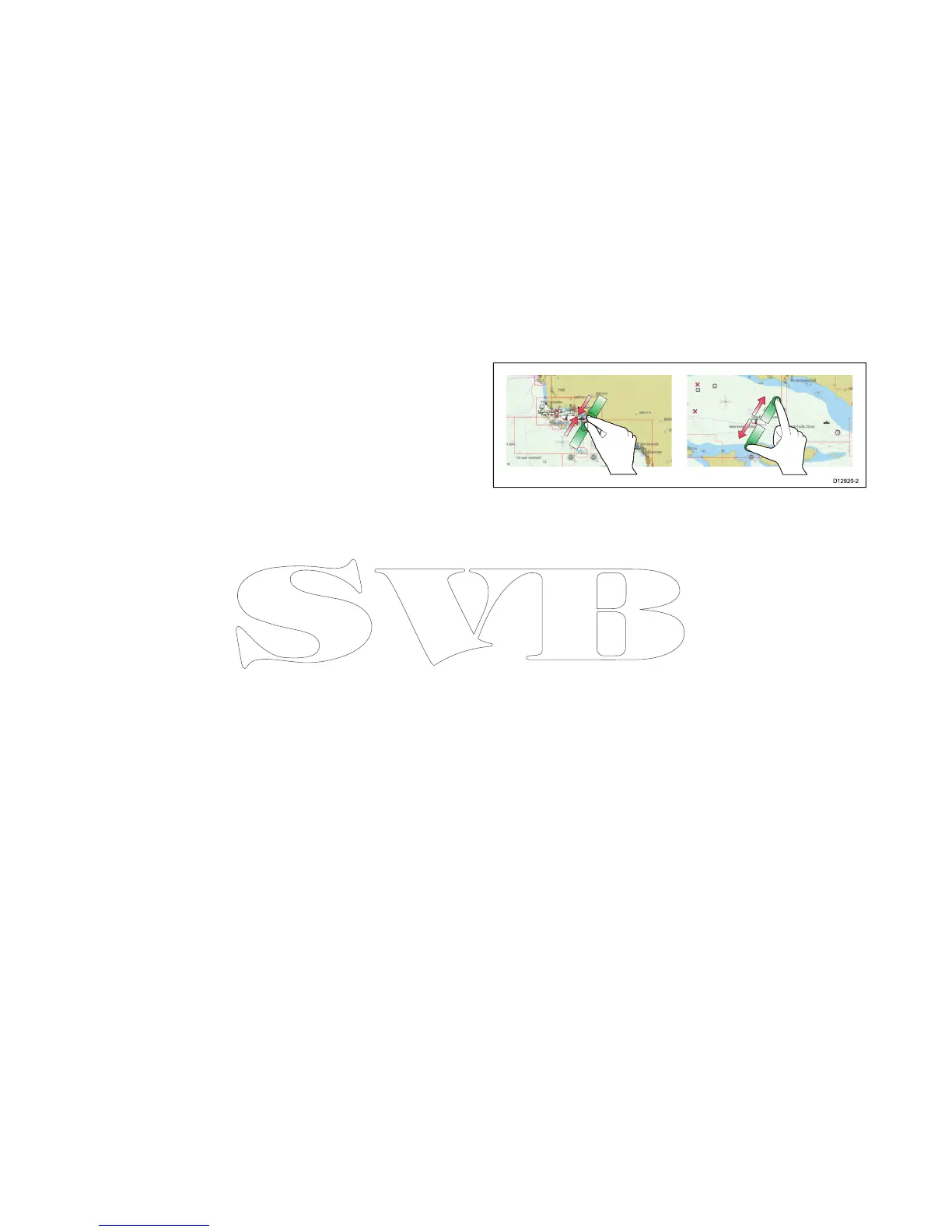

PinchtoZoom

Thepinchtozoomgesturescanbeperformedon

multifunctiondisplaysthatsupportmulti-touch.

Pinchtozoomconsistsof2actions:

•Move2ngersaparttozoomin.

•Move2ngerstogethertozoomout.

D12920-2

PinchtoZoomcanbeusedinthefollowing

applications:

•Chartapplication.

•Weatherapplication.

Gettingstarted

101
