D13074-1

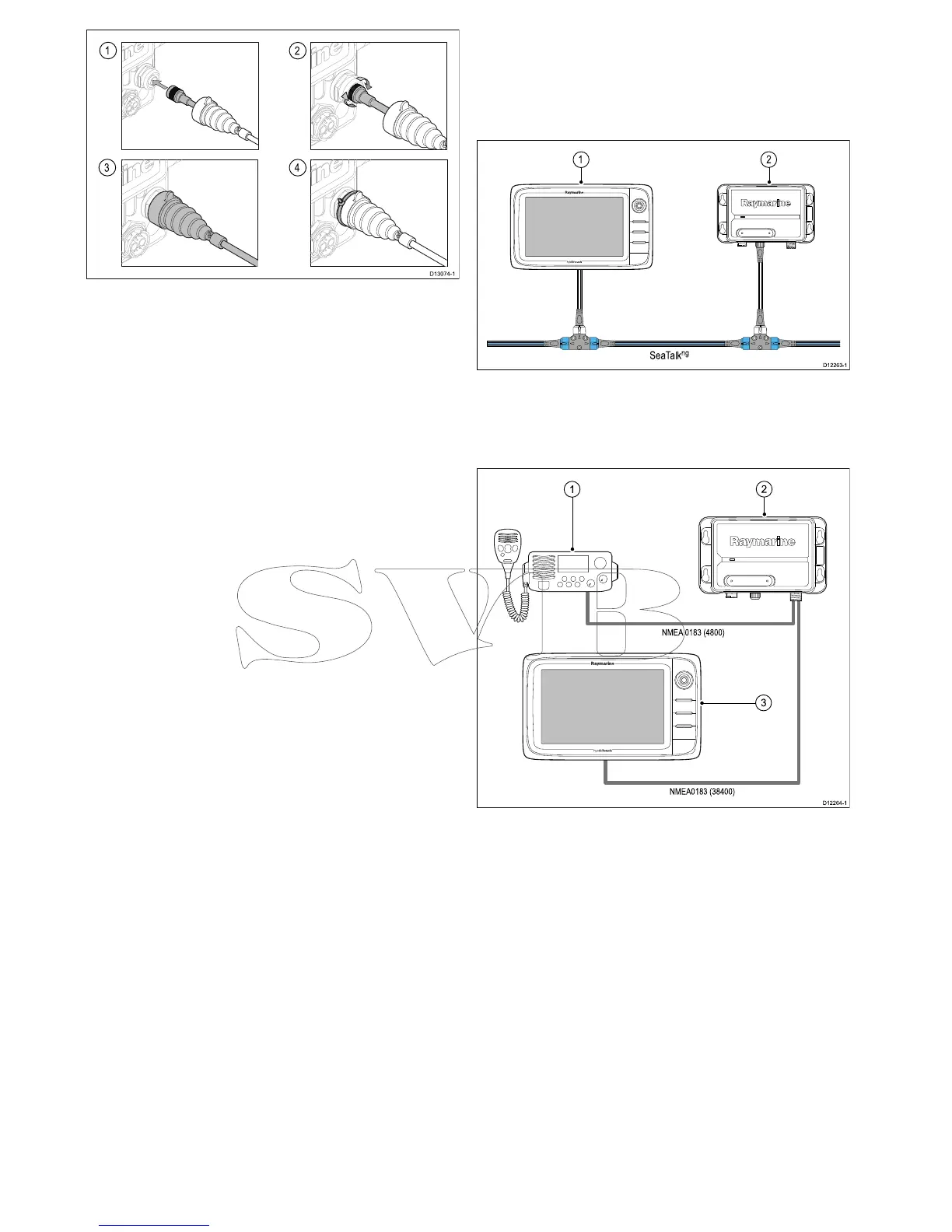

1.Fullyinserttheantenna’scableconnectorinto

theGA150connectorontherearofyourdisplay.

2.TurnthelockingcollarclockwiseuntilTIGHT.

3.Pushtoprotectivebootovertheconnectionon

thebackofthedisplay.

4.Usethesuppliedcabletietosecuretheprotective

bootovertheconnection.

4.16AISconnection

AcompatibleAIScanbeconnectedusingSeaTalk

orNMEA0183.

ConnectionusingSeaTalk

D12263-1

SeaTalk

1.Multifunctiondisplay.

2.SeaTalk

AISreceiver/transceiver.

ConnectionusingNMEA0183

NMEA0183 (38400)

NMEA 0183 (4800)

D12264-1

1.VHFradio.

2.AISunit.

3.Multifunctiondisplay.

68aSeries/cSeries/eSeries
