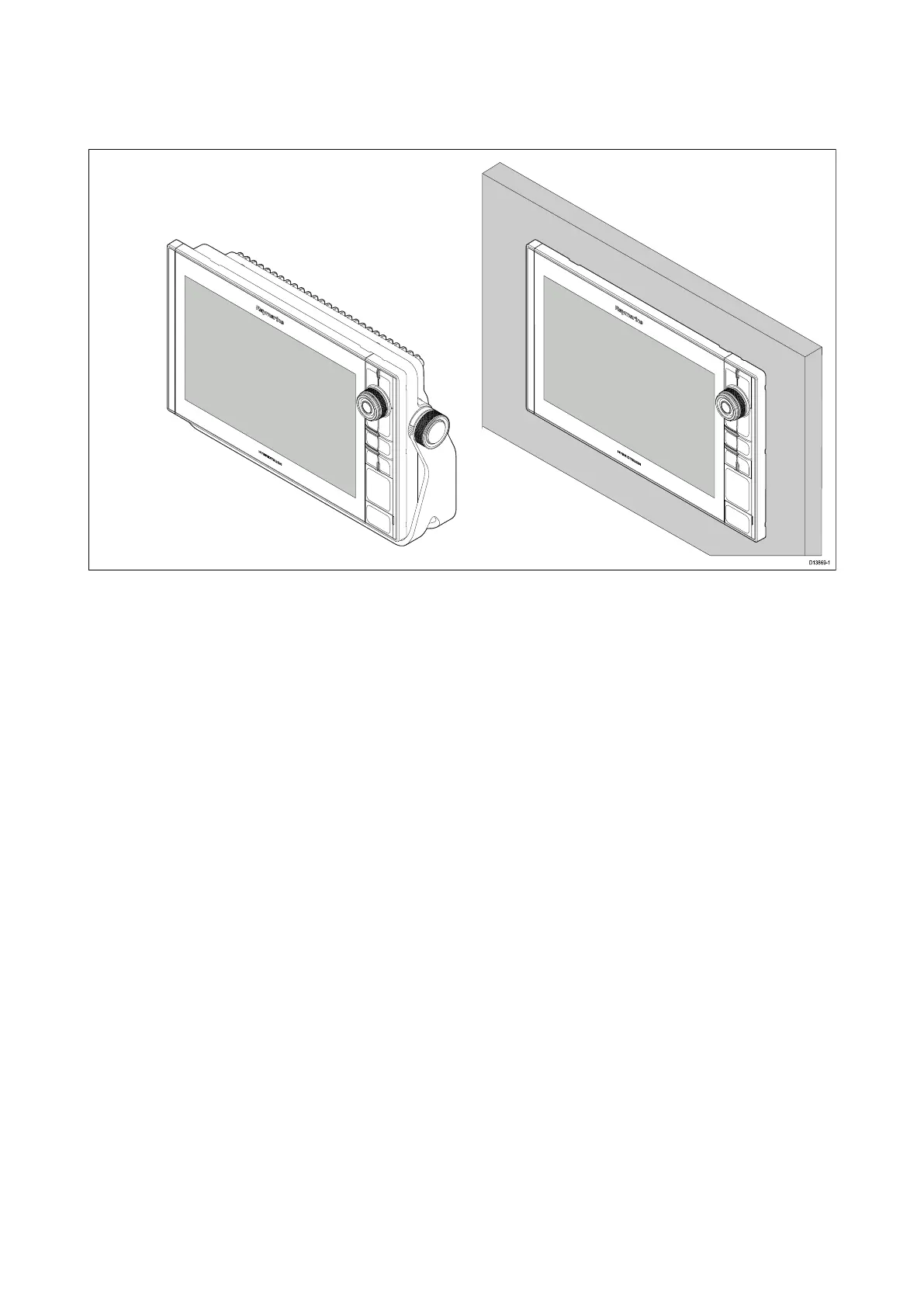

Mounting
options
Axiom
Pro
9
,
12,
and
16
can
be
surface
mounted.
The
Axiom
Pro
9
and
12
can
also
be
brack
et
mounted
on
a
trunnion.
L
egacy
MFD
adaptor
plates
are
also
available
to
enable
you
to
easily
swap
out
older
MFDs
for
new
Axiom
Pro
MFDs,
please
refer
to
Chapter
9
Spares
and
accessories
for
a
list
of
available
adaptors.
28
27
29
