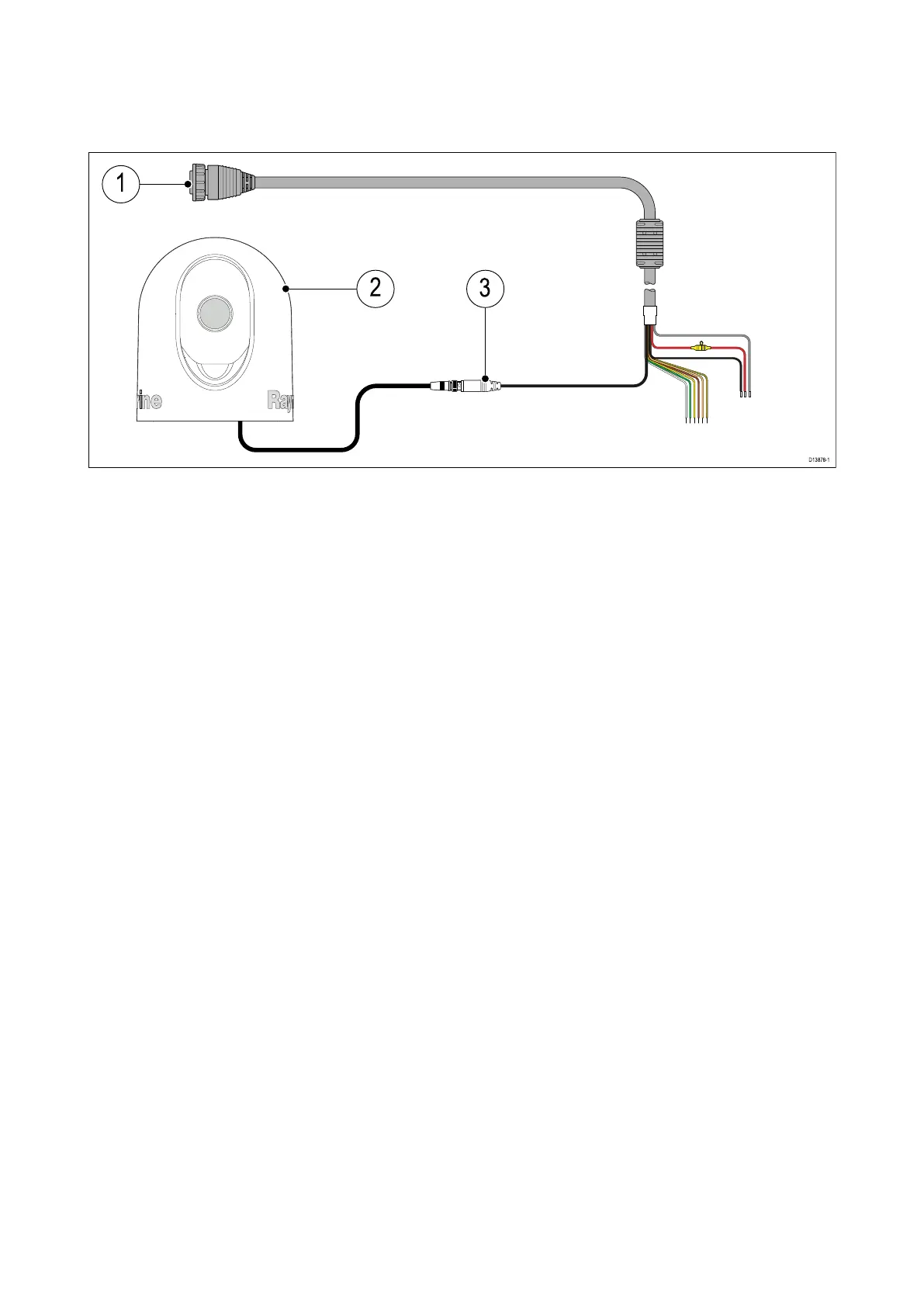

4.9Analogvideoconnection
AnalogvideosourcessuchasaThermalorsecuritycameracanbeconnectedtoyourMFDusingthe
BNCconnectoronthesuppliedP
ower/Video/NMEA0183cable.
1.P ower/Video/NMEA0183cablesuppliedwithyourMFD.
2.Analogvideodevice.
3.AnalogvideoBNCconnector.
Forinstallationdetails,refertothedocumentationprovidedwithyouranalogvideodevice.
Connections49
