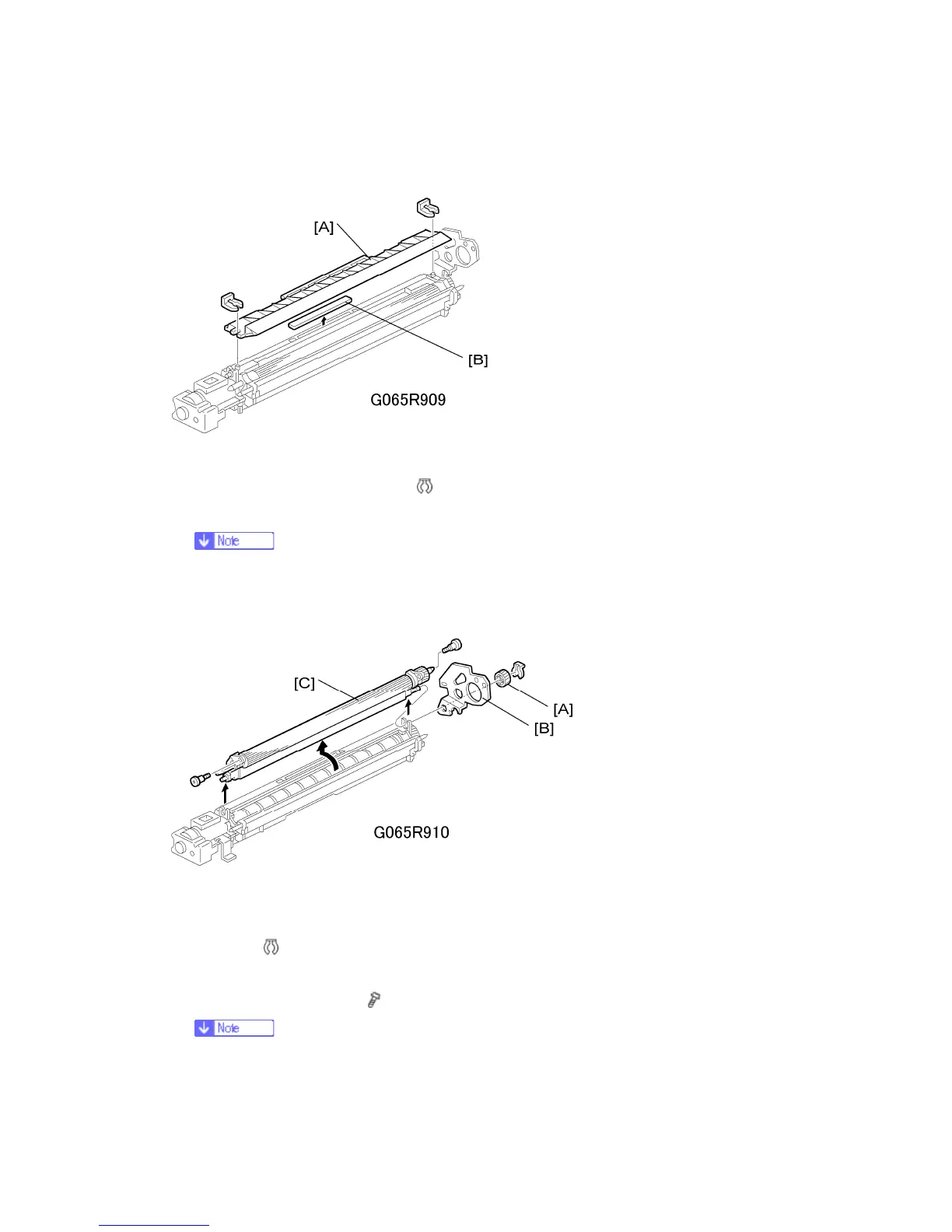

3.8.2 DEVELOPMENT FILTER
1. Development unit (See ‘Development Unit’.)
2. Upper development cover [A] ( x2)
3. Development filter [B]
 Make sure that the surface with the red mark is facing up.
3.8.3 DEVELOPMENT ROLLER
1. Development unit (See ‘Development Unit’.)
2. Upper development cover (See ‘Development Filter’)
3. Gear [A] ( x1)
4. Joint bracket [B].
5. Development roller [C] (
x2)
 Work carefully to avoid scratching or nicking the development roller.
