G147 3-42
SM
3.11 FUSING UNIT

Allow time for the unit to cool
before doing the following procedur
e.
3.11.1

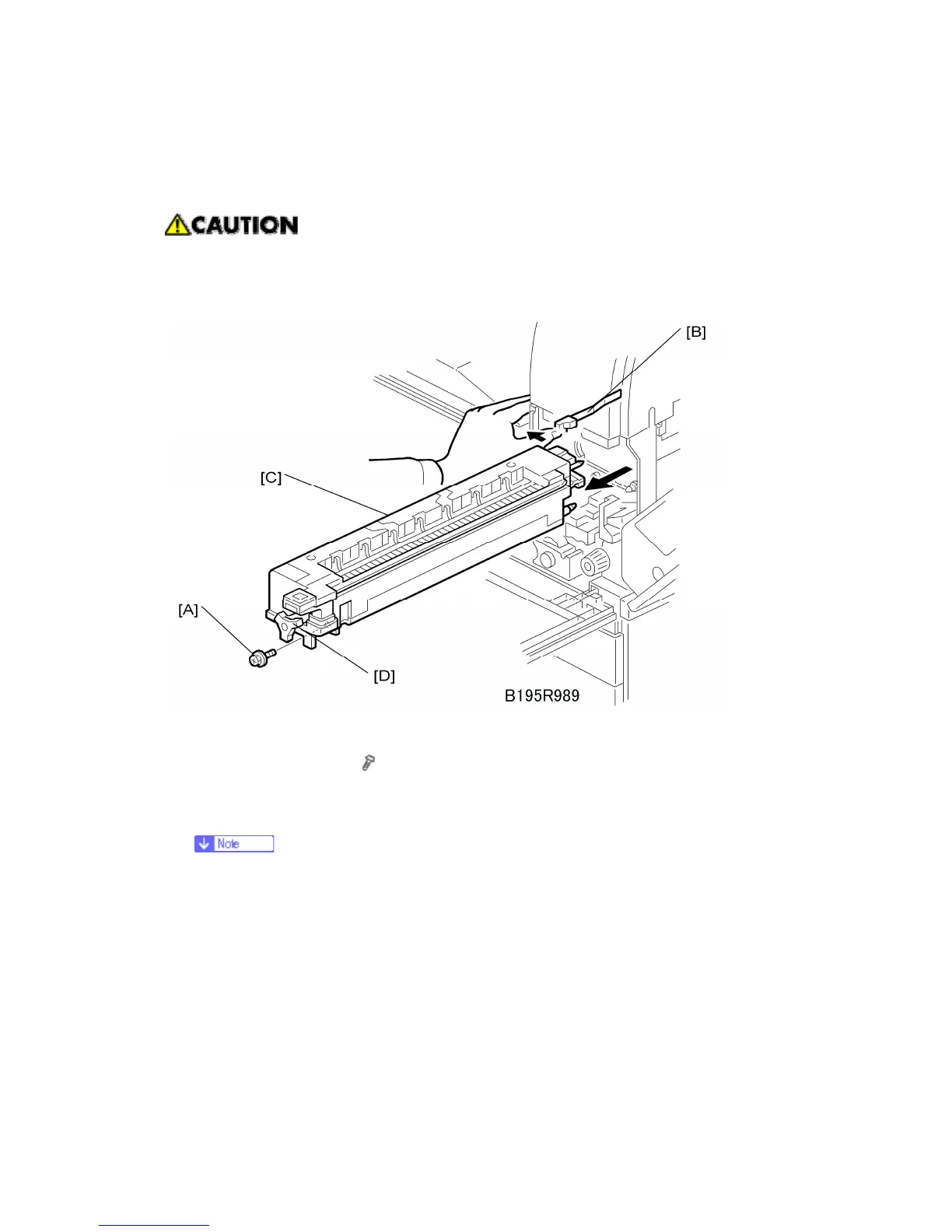

FUSING UNIT REMOVAL
1.
Open the front door
, duplex unit, and right door
.
2.
Remove set screw
[A] (
x
1)
3.
Fusing unit release lever [B]
4.
Slide out the fusing unit [C]

The large kn
ob [D] is provided to make it
easier to turn the hot roller in order to
remove jams.
