G147 6-44
SM
6.10.2
BY-PASS TRAY OPERATION

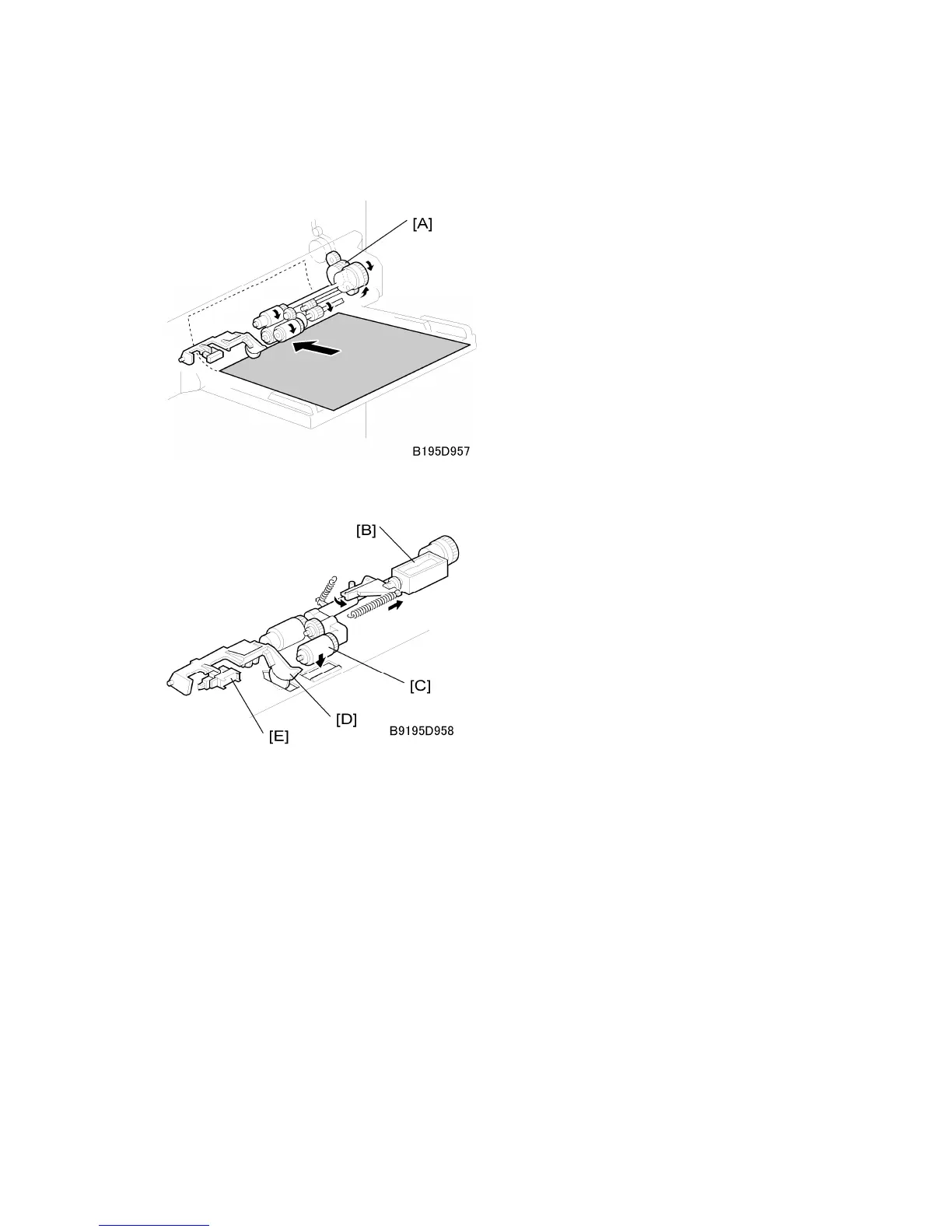

The by-pass unit is directly driven
by the machine through gear [A].
When the print key is pressed, the pick-up
solenoid [B] turns on and the pick-up roller [C]
moves onto the paper
. When the by-p
ass tray r
uns out of paper
, the paper end feeler [D]
drops into the cutout in the by-p
ass tray
and the paper end sensor
[E] is activated.
