6.8 DRUM CLEANING AND TONER RECYCLING
6.8.1 DRUM CLEANING

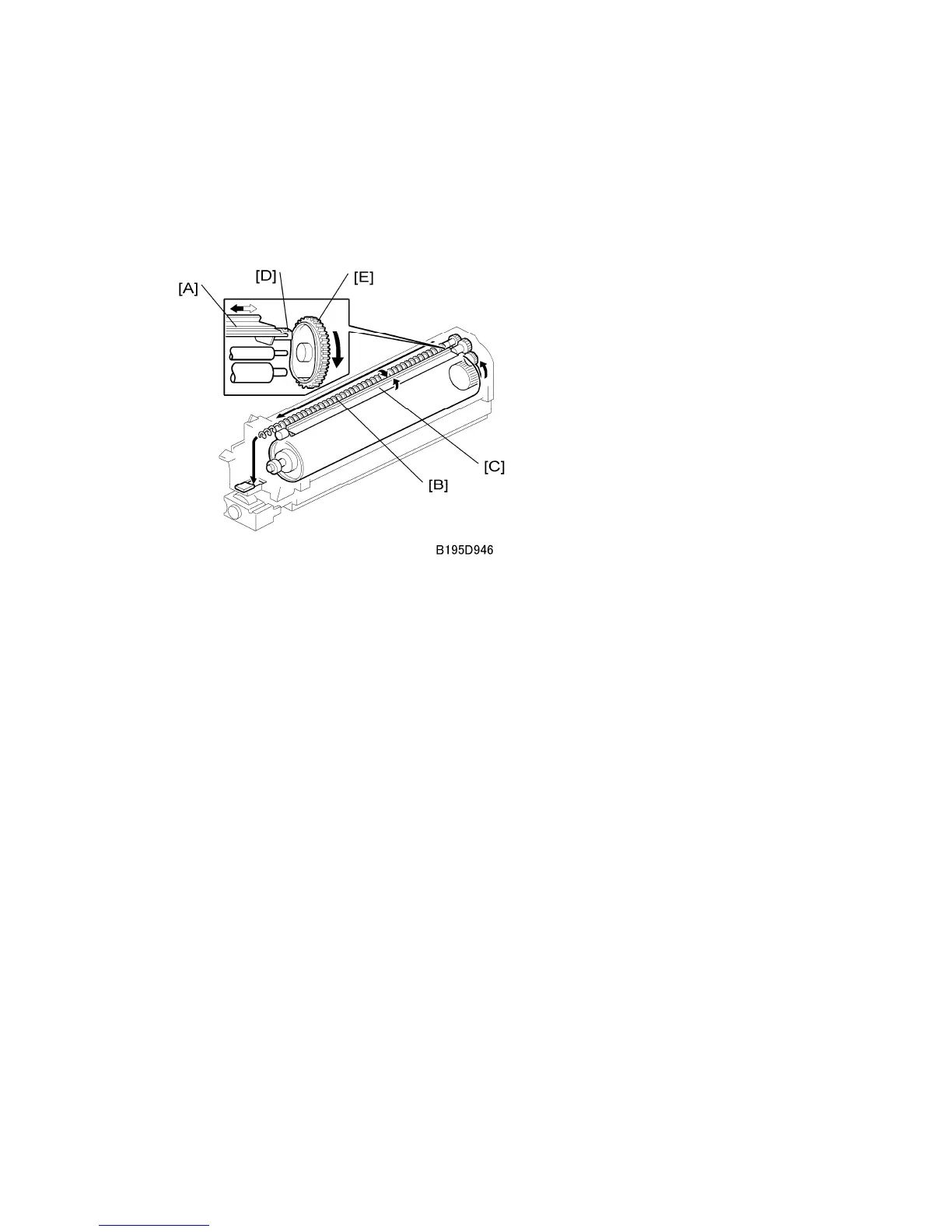

This machine employs a counter blade system. After the image is transferred to paper, a
cleaning blade [A] removes any toner remaining on the drum. The toner collection coil [B]
carries excess toner to the toner collection plate [C].
The collar [D] on the cleaning blade bracket contacts the outer rim of cam gear [E], which
moves the cleaning blade side to side. This side-to-side movement disperses accumulated
toner to prevent early blade edge wear at one location.
The drum reverses about 5 mm after every print job to remove particles on the edge of the
cleaning blade.
