Ricoh G147 User Manual

SM 3-19 G147
Replacement
Adjustment

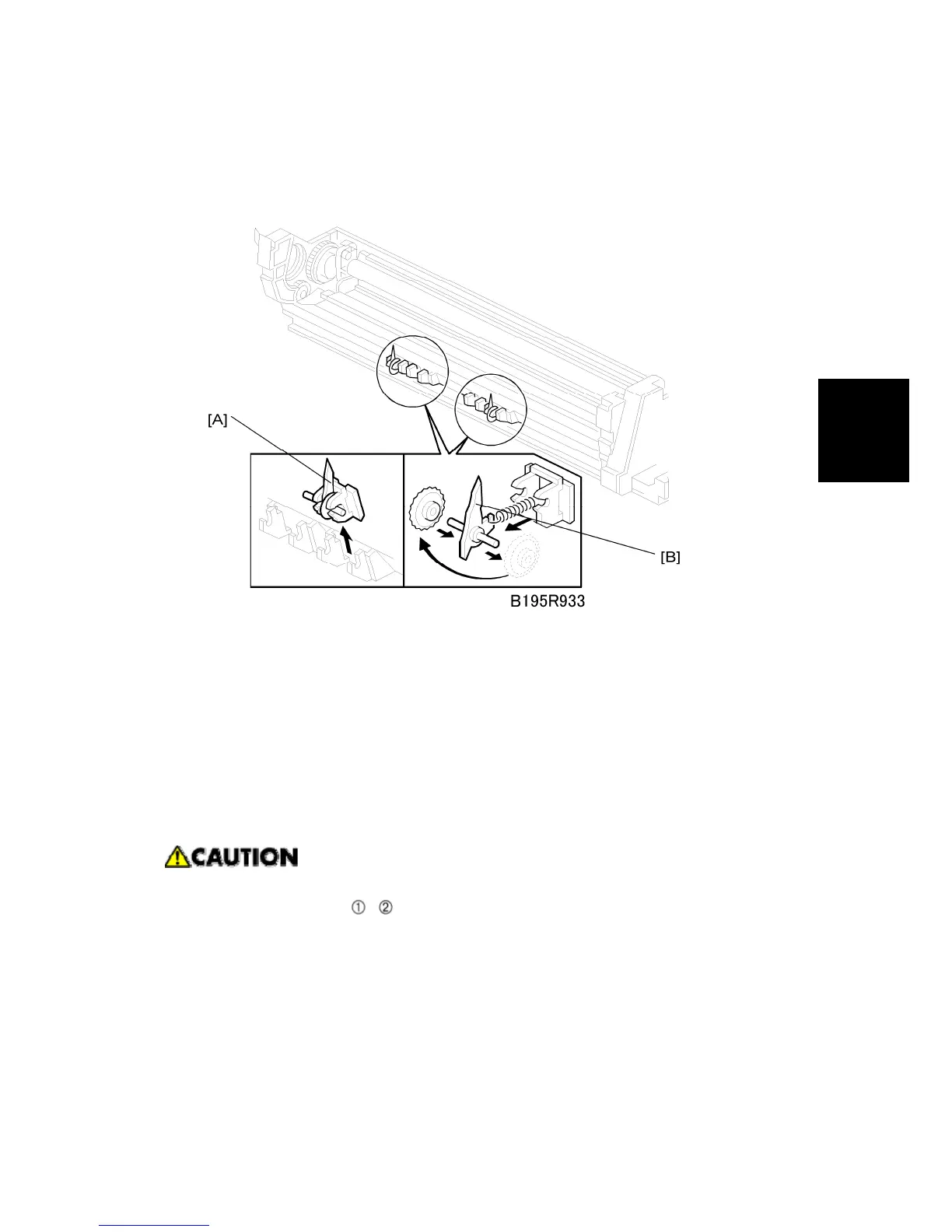

3.7.3 PICK-OFF PAWLS
1. Remove the drum. (See ‘Drum’.)
2. Pawl assembly [A]
3. Pick-off pawl [B] (spring x 1, spur x 1)
- Pick-off pawl position adjustment -
If the pick-off pawl has marked the drum with a line, the pick-off pawl position can be
adjusted using either method:
 Changing the spur position.
 Changing the pick-off pawl assembly position
 After re-assembly, make sure that the front spring of the movable cleaning blade is
re-attached to the
, position. (See ‘Drum’.)
