G147 6-58 SM

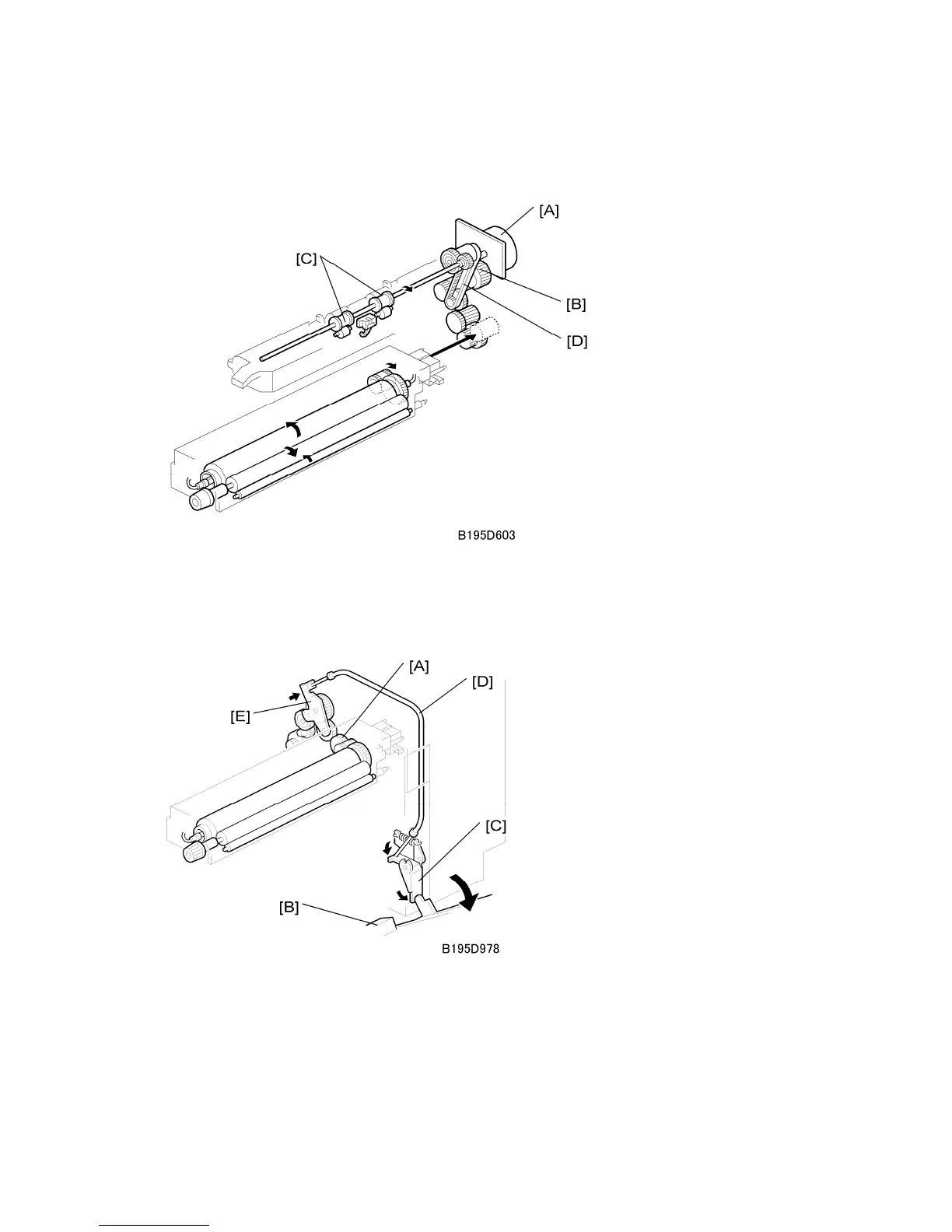

6.13.2 FUSING DRIVE
The fusing exit motor [A] drives the fusing unit through the gears [B] and also drives the
paper exit rollers [C] through a gear and a timing belt [D].
6.13.3 FUSING DRIVE RELEASE MECHANISM
The fusing unit drive release mechanism automatically disengages the fusing unit drive gear
[A] when the right door [B] is opened.
When the right cover is opened, the actuator plate [C] pulls release wire [D]. The wire pulls
the fusing drive gear bracket [E] and the fusing unit drive is disengaged.
